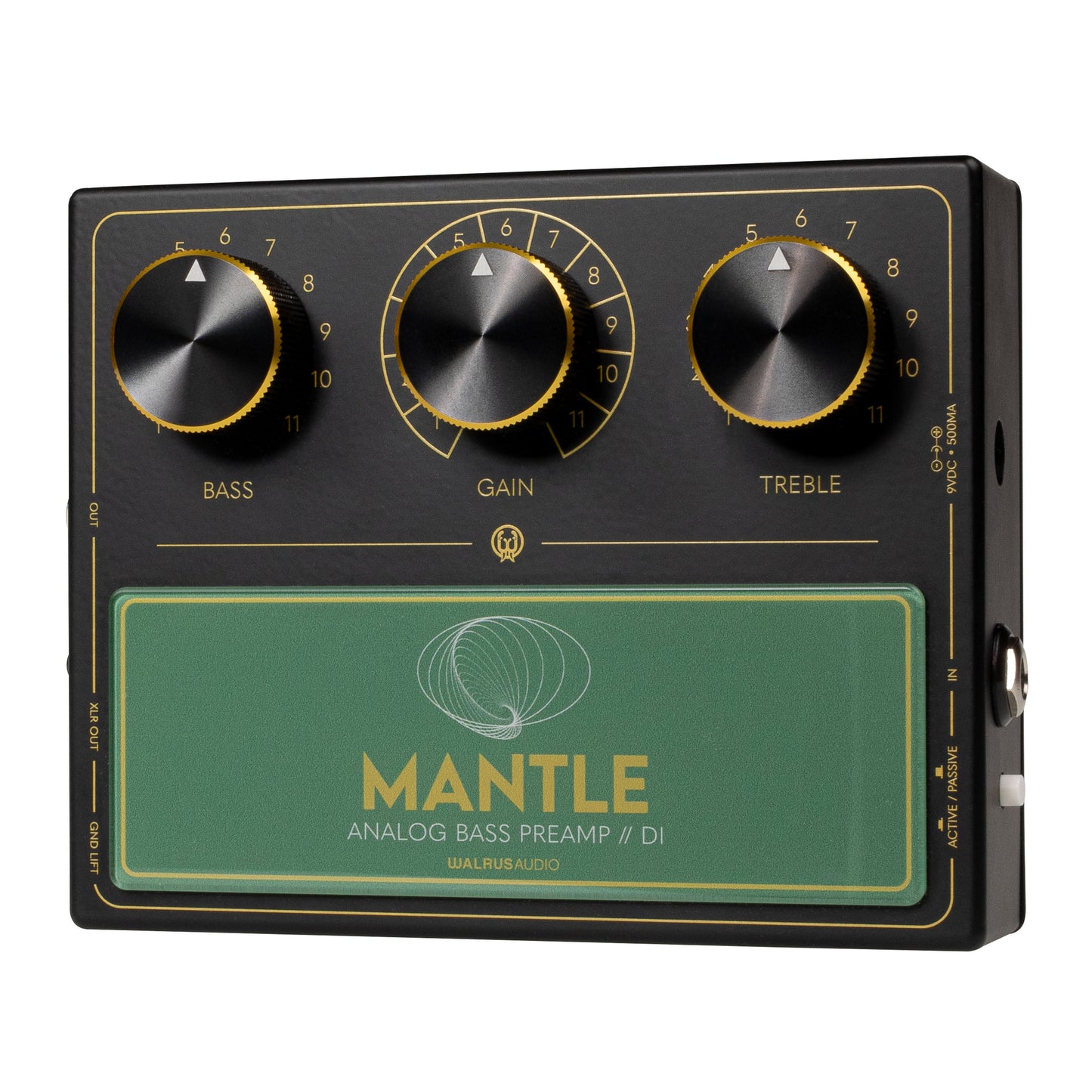

Walrus Audio Mantle Studio Bass Preamp and DI

The Mantle is a premium preamp and DI for electric bass, created in close collaboration with Ian Martin Allison. Designed to give your instrument an impeccable sonic foundation, the Mantle brings studio-grade refinement to any environment, whether you are stepping onstage, tracking in the studio, or shaping your tone at home.

At the heart of the circuit are proprietary, custom-wound Sapphire transformers, engineered to deliver authoritative low end and midrange push reminiscent of classic Neve circuits, paired with an airy, articulate top end inspired by revered API preamp architecture. Together, they provide a harmonically rich canvas that elevates your playing while preserving every nuance of your instrument.

The Mantle empowers you to sculpt your signal with intention, offering musical gain, smartly tuned EQ, tremendous headroom, and transformer-balanced outputs. Every component and stage of the signal path is built to ensure whatever comes next, amp, interface, or mixer, receives your bass in its most confident, fully realized form.

Features

• High-impedance JFET input buffer for articulate, touch-sensitive response and exceptional clarity.
• Up to +23dB of transformer-based gain offering clean, magnetic, harmonically rich amplification with premium depth and detail.
• Custom-tailored Bass and Treble controls co-designed with Ian, utilizing a sophisticated blend of shelving, bandpass, and selectable LPF and HPF behaviors.
• Transformer-balanced XLR output ensuring expansive headroom, uncompressed dynamics, and commanding low-frequency extension.
• High-headroom +24V internal power supply for clean dynamics and effortless low end.
• Active and Passive Pad plus Ground Lift switches for enhanced compatibility and additional headroom when using an active bass.
• Flexible routing with 1/4 inch in and out plus balanced XLR direct output for modern routing needs.

Signal Path Overview

Input → JFET Buffer → Low-Pass and High-Pass Filters or Dry Path → Input Transformer (-6dB to +23dB) → Boost EQ → Output Transformer

The Mantle architecture is meticulously voiced to maintain clarity, deliver musical transformer coloration, and give you control over both the front end and final output of your tone.

Transformers

The Mantle features proprietary custom-wound Sapphire transformers. With more than a year of research, listening, and refinement, the Walrus engineering team set a new benchmark with new input and output transformer designs that reflect a commitment to providing creators with cutting-edge tools that inspire innovation and creativity.

Based on Neve designs, the input transformer is capable of handling large signals without added distortion while maintaining a clean, strong, and quiet signal. High-quality core material and copper windings were used to achieve the gain needed for pristine performance across the frequency spectrum.

The output transformer is based on the output stage of an API 312. It balances the signal quietly and effectively while also providing rich harmonic content to the amplified signal. Like the input transformer, the core style and customized winding method result in a strong signal that can be transmitted over long cable runs without signal loss.

Connections

• 1/4 inch TS unbalanced input (Hi-Z): Optimized for electric bass and buffered by a high-quality JFET stage to maintain impedance, detail, and instrument integrity.
• 1/4 inch TS unbalanced output: Send your shaped signal to an amp or additional pedals.
• Male XLR balanced output: Transformer-balanced for elevated DI tones suitable for high-end studio and live environments.
• Power: 9VDC, 500mA center-negative. Internally boosted to +24V for massive headroom and clean, authoritative bass response.

Bass and Treble (Boost and Cut Filter System)

The Mantle EQ is a sophisticated dual-behavior design that is far more expressive than standard shelves. Both Bass and Treble controls feature eleven-position rotary switches for a satisfying studio feel, easily reproducible settings, and a true flat response at noon, position 6.

Boosting (positions 7 to 11)

• Begins as a shelf, gradually transitioning into a broad, musical bell as gain increases.
• Each increment adds +3dB, up to +15dB, without drifting into muddiness or harshness.

Cutting (positions 5 to 1)

• Bass control introduces a steep -18dB per octave HPF at selectable points: 30Hz, 50Hz, 80Hz, 100Hz, 120Hz.
• Treble control introduces a steep -18dB per octave LPF at selectable points: 8kHz, 6kHz, 4kHz, 2kHz, 1kHz.

This design allows precision mix shaping or broad musical coloration without sacrificing elegance or fidelity.

Gain Control

The Gain control adjusts the amount of transformer-based gain applied to the signal. The gain circuit comes directly from the input transformer, creating magnetic manipulation at its finest. The control offers a gain range from -6dB to +23dB across its sweep. Combined with the JFET buffer, the result is a tone that feels alive, dimensional, and deeply expressive.

Active and Passive (-10dB Pad)

• Engaged: Introduces a -10dB input pad, ideal for active basses or instruments with high-output preamps, preventing overload of the input stage.
• Disengaged: Bypasses the pad for full-strength passive bass output and maximum sensitivity.

Ground Lift

• Engaged: Separates the XLR output ground from circuit ground.
• Purpose: Eliminates hum and ground-loop noise in complex or unfamiliar live and studio setups.

FAQ

Q: Can I run this as my always-on tone solution?
Yes. The Mantle is designed to function as your primary front-end, studio-quality, always-on preamp and tone enhancer.

Q: Can I use both 1/4 inch and XLR outputs at once?
Absolutely. You can send the 1/4 inch output to an amp onstage and the XLR output to front of house simultaneously.

Q: Does it take other pedals well?
Yes. The high-headroom JFET front end and transformer-driven architecture preserve clarity and cohesion even with compressors, drives, and modulation feeding into it.
