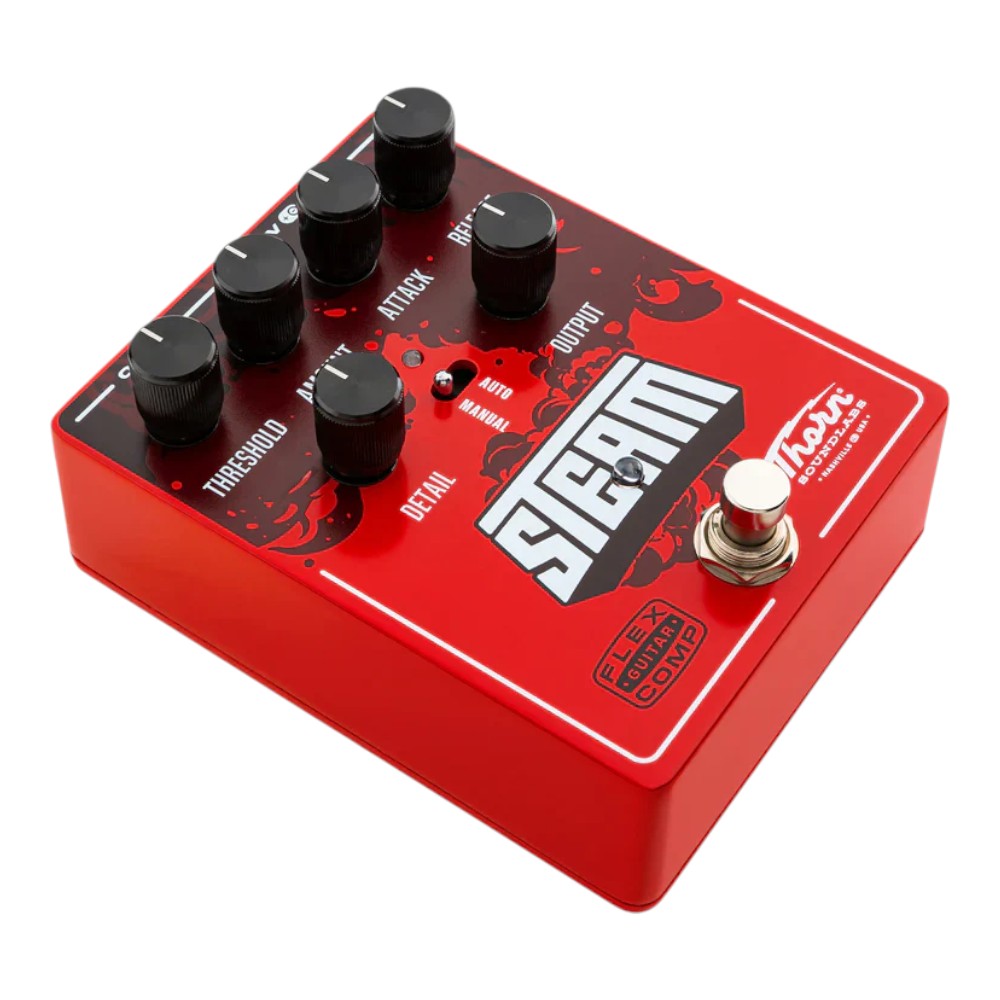

Thorn Soundlabs Steam Flexible Compressor Guitar Pedal with Auto Mode and Detail Upper Frequency Restoration

Dynamic Clarity, Total Sonic Control

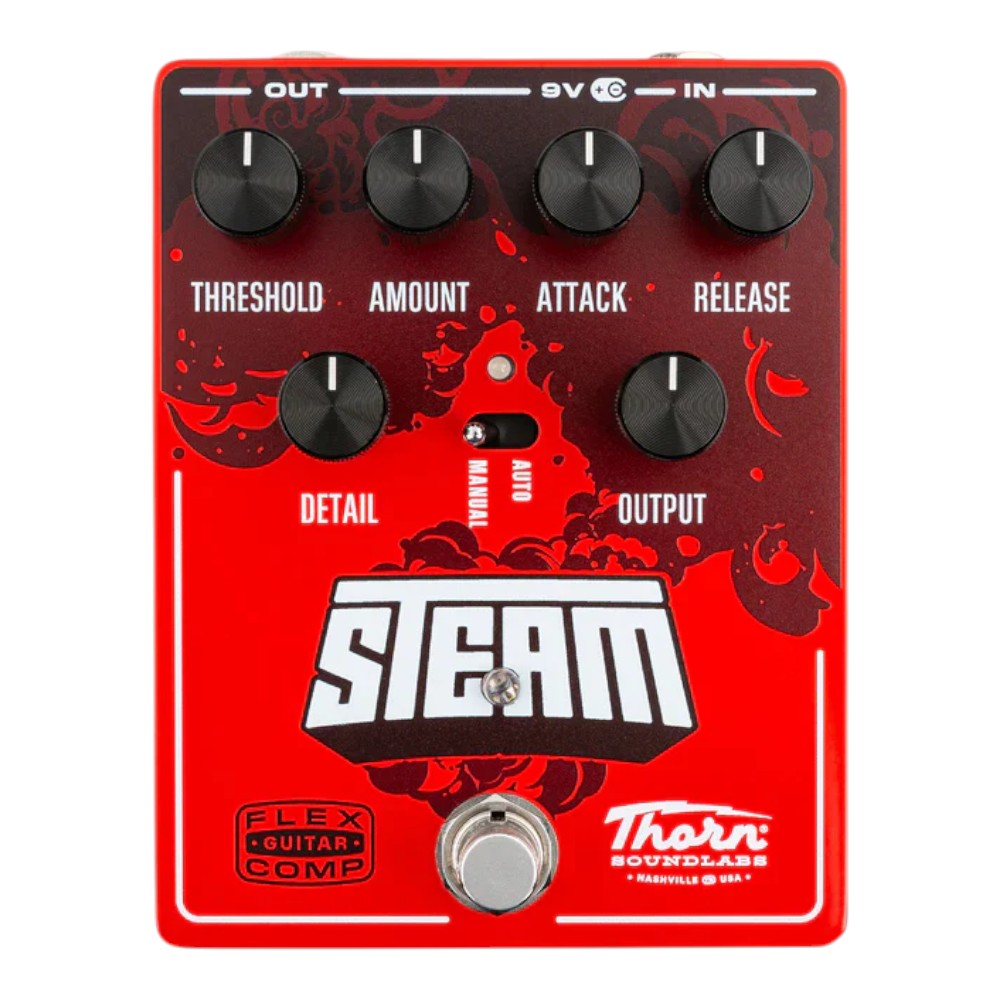

The STEAM is a highly versatile compressor pedal designed to give guitarists precise control over their dynamics. Featuring a comprehensive set of controls, including Threshold, Amount, Attack, Release, Detail, and Output, this pedal allows you to shape your tone with accuracy, whether you want subtle compression or more pronounced dynamic control. The Auto/Manual switch adds an extra layer of flexibility, enabling you to choose between automatic attack and release timing or the ability to manually dial in your preferred settings. Whether you’re after subtle compression or a more pronounced effect, the STEAM is an essential tool for guitarists looking to enhance their sound with dynamic precision.

Specifications

• flexible Compressor
• perfect for pairing with pedals or with any amplifier
• all analog
• controls: Threshold – Ratio – Attack – Release – Detail - Gain
• switch: Auto/Manual
• footswitch: Effects Bypass
• hardwire true bypass
• status LED: Effect On/Off

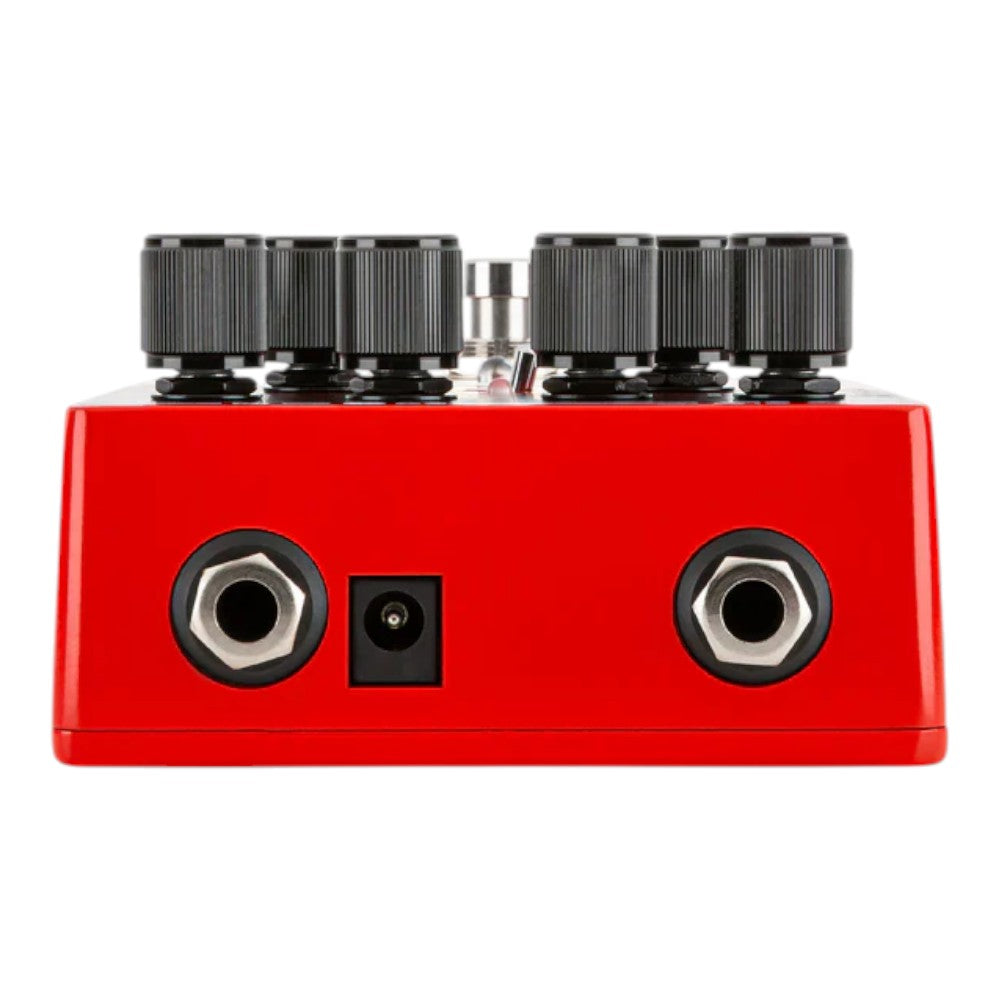

• input: 1/4” (6.35 mm) mono TS jack
• output: 1/4” (6.35 mm) mono TS jack
• input impedance = 470 kOhm
• output impedance = 2.2 kOhm
• power supply: 9V DC – NOTE: do not connect more than 9V DC
• current draw: 29 mA
• power supply connector: 5.5 x 2.1 mm barrel plug, center negative
• power supply not included
• no battery operation possible
• dimensions: Width x Depth x Height: 3.70" x 4.72" x 1.50" (94 x 120 x 38 mm)
• dimensions with switches, jacks & knobs: 3.70" x 4.86" x 2.09" (94 x 123.5 x 53 mm)
• weight: 0.84 lbs. (380 g)
