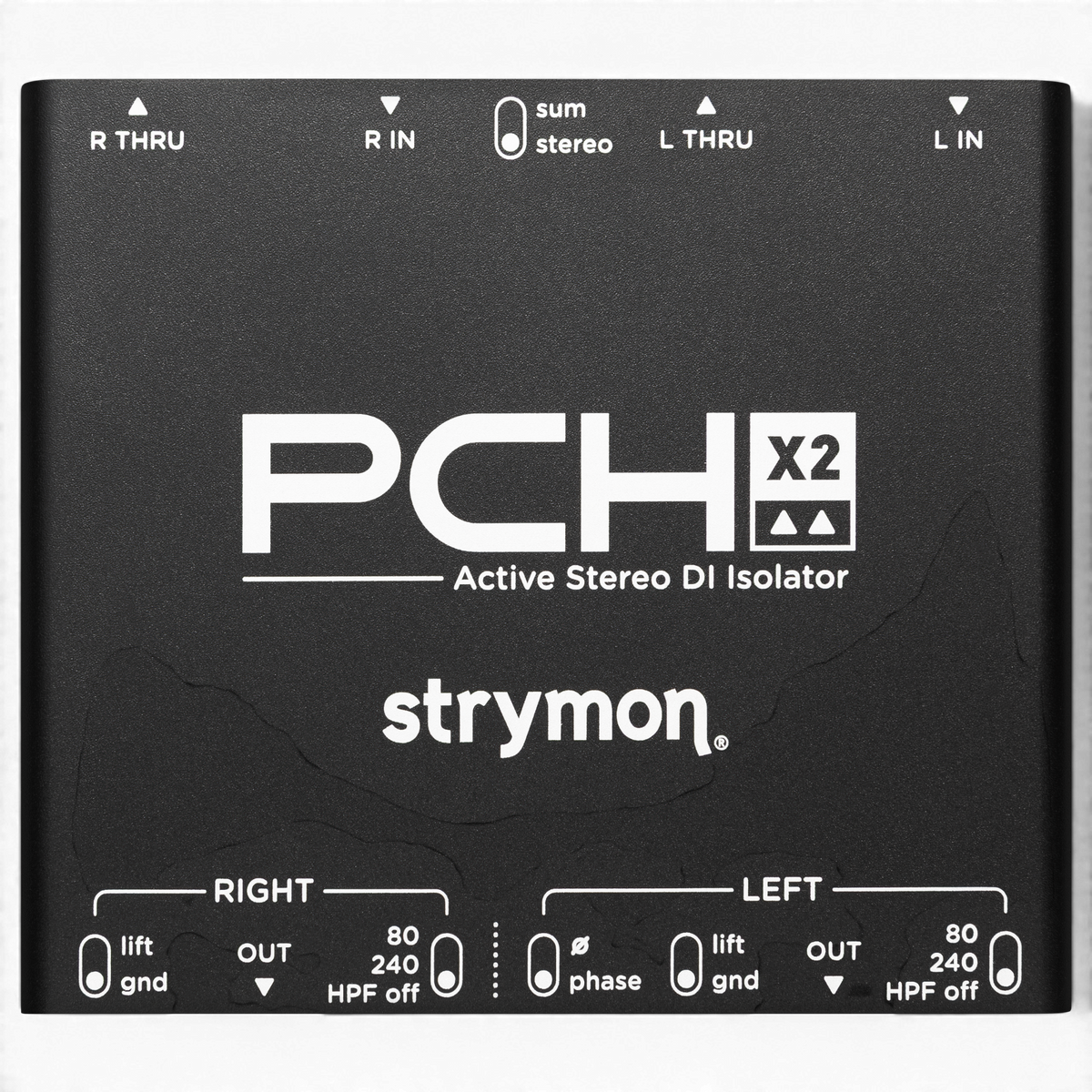

Strymon PCH X2 Active Stereo DI Isolator / Direct Box

Strymon PCH X2 Active Stereo DI Isolator / Direct Box

$299.00 USD
$299.00 USD $299.00 USD
Sale Sold Out
Shipping calculated at checkout.

In stock
Full Manufacturer's Warranty | 30 Day Returns
All items for sale (unless otherwise indicated as Used or Preowned) are brand new. Z String Music is a directly licensed or authorized dealer and all new items carry the full manufacturer's warranty.

The Strymon PCH X2 is a premium two-channel active stereo DI isolator designed to deliver exceptionally clean, transparent audio from your pedalboard, modeler, keyboard, guitar, bass, or other instrument to a mixing console or audio interface. With custom transformers, flexible mono/stereo routing, and an ultra-low-noise signal path, PCH X2 is built for professional stage and studio use.

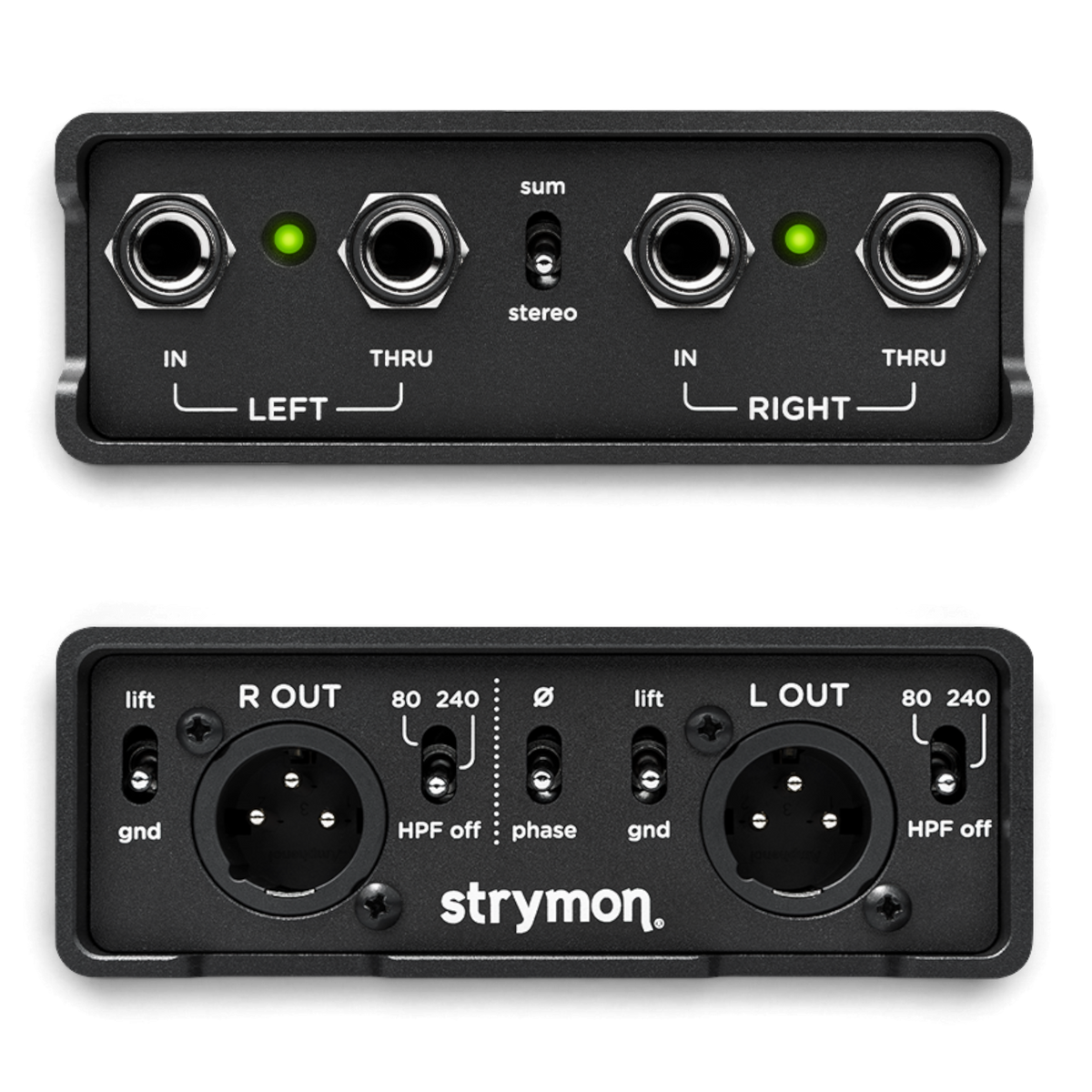

Each channel features a high-impedance buffered 1/4" input, passive 1/4" THRU output, and transformer-isolated balanced XLR output. Custom audio transformers provide true galvanic isolation to help eliminate troublesome ground loops while preserving the character and detail of your source signal.

Flexible Stereo and Mono Operation

Use PCH X2 as a stereo DI, as two independent mono direct boxes, or engage the SUM function to combine the left and right inputs and route the summed signal through the left outputs. A polarity-reversal switch for the left XLR output provides additional flexibility for live and studio setups.

Each channel also includes an independent ground lift and a three-position high-pass filter. Select 80Hz to reduce stage rumble and unwanted low-frequency energy, or 240Hz for more aggressive low-frequency filtering when needed.

Key Features

  • Two-channel active stereo DI isolator
  • Ideal for pedalboards, amp modelers, keyboards, guitars, basses, acoustic instruments, and more
  • Custom audio transformer on each channel
  • Galvanic isolation helps eliminate ground loops
  • High-impedance buffered 1/4" inputs
  • Passive 1/4" THRU outputs
  • Transformer-isolated balanced XLR outputs
  • Independent ground lift for each channel
  • Three-position high-pass filter: Off / 80Hz / 240Hz
  • SUM/STEREO switch for flexible mono and stereo routing
  • Polarity reversal for the left XLR output
  • Ultra-low-noise, wide-frequency-response design
  • Rugged extruded aluminum enclosure
  • Powered by 48V phantom power — no separate power supply required
  • Designed and built in the USA

Specifications

  • Input Impedance: 2 MΩ
  • Maximum Input Level: +20.5 dBu
  • XLR Output Impedance: 100 Ω
  • XLR Gain Relative to Input: -20 dB
  • Maximum XLR Output Level: +0.5 dBu
  • Noise Floor: -123 dBu (10Hz–22kHz, unweighted)
  • Frequency Response: ±0.25 dB, 20Hz–30kHz; ±0.5 dB, 10Hz–80kHz
  • THRU Gain: 0 dB
  • Power Requirements: 48V phantom power, 5mA per channel
  • Dimensions: 3.66" L × 4.20" W × 1.54" H

New from an authorized Strymon dealer.
