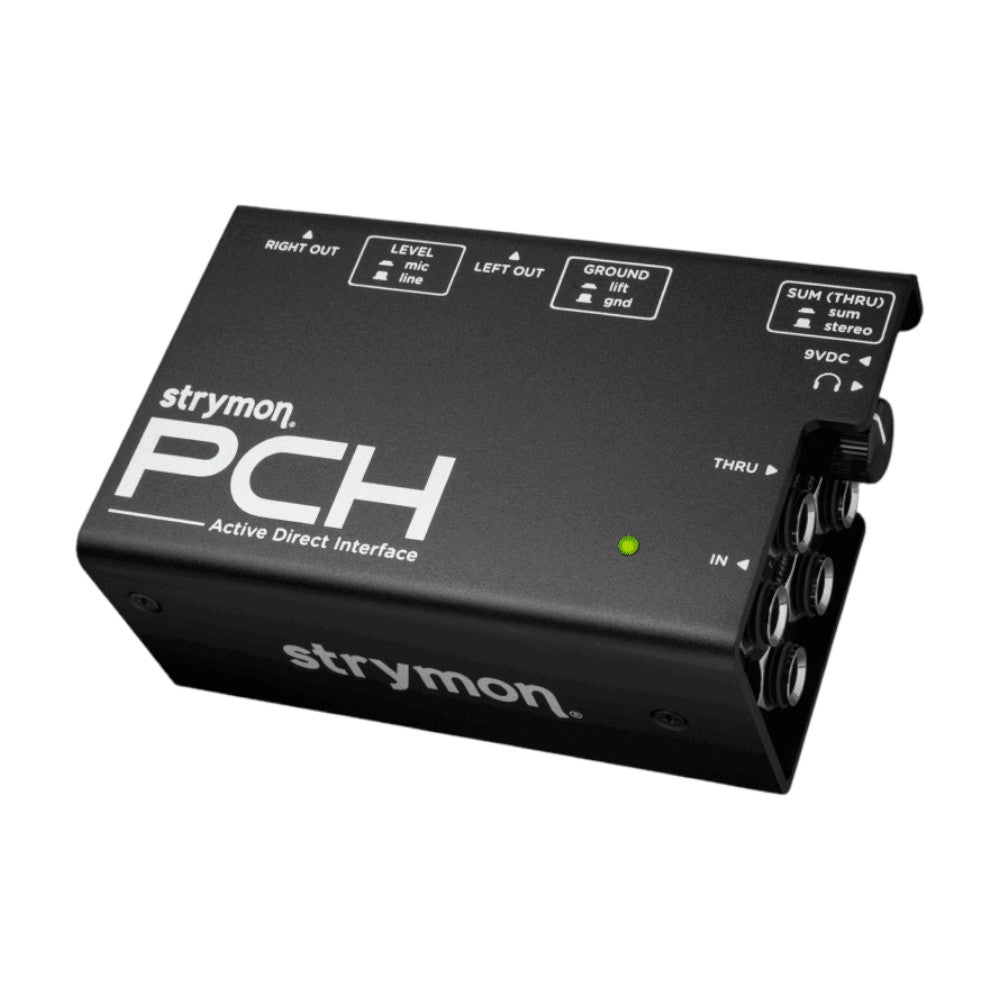

Strymon PCH Active Direct Interface Stereo High Fidelity Direct Box and Headphone Amplifier

PCH is an advanced stereo active direct interface with a hidden superpower – an onboard console-quality headphone amplifier. Now you can rest easy knowing that the sound of your pedalboard won’t change even a little when passing through PCH, and the headphone amp means you won’t have to ask anyone how you sound. You’ll know.

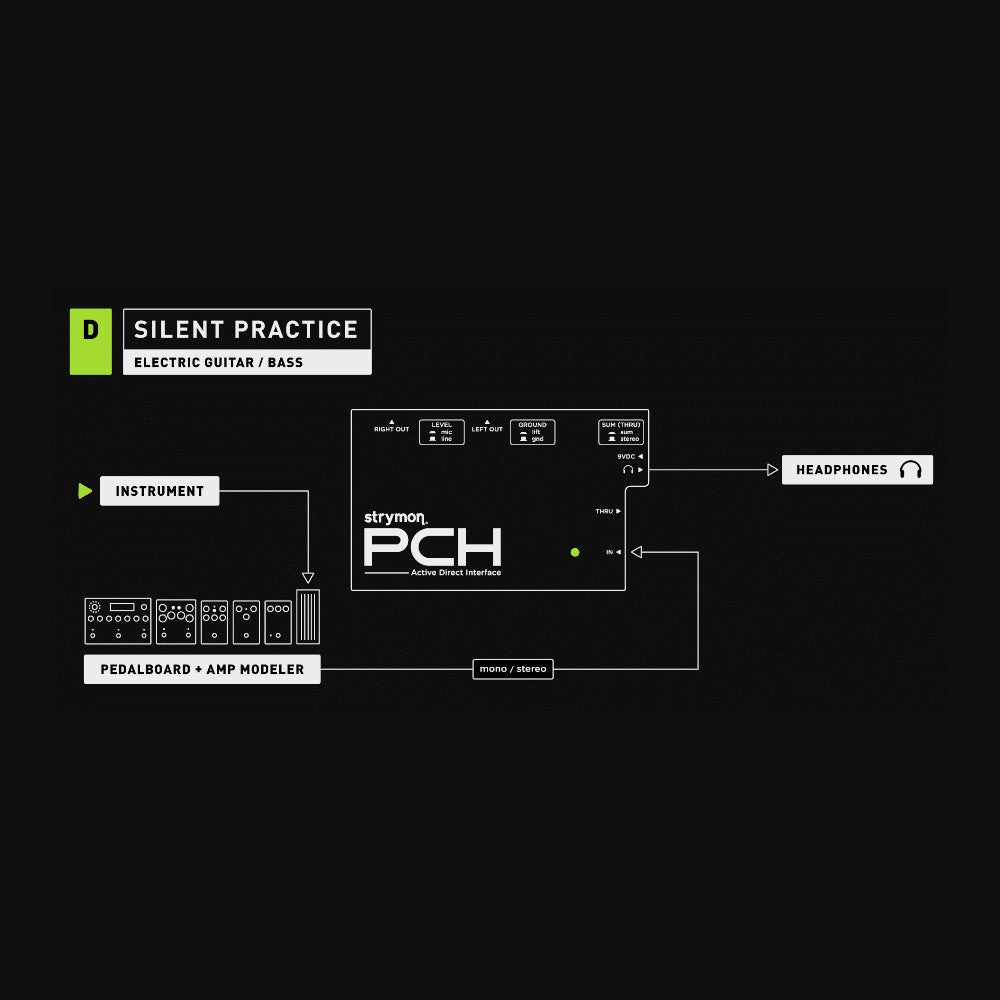

PCH has a powerful headphone amplifier onboard, making it easy to monitor or practice listening to the sound of your entire rig or pedalboard in full stereo, no matter the pedal order or the components.

• Runs on 9VDC — internally converted to 24V to be virtually unclippable
• Onboard headphone amplifier powerful enough to drive high impedance headphones cleanly

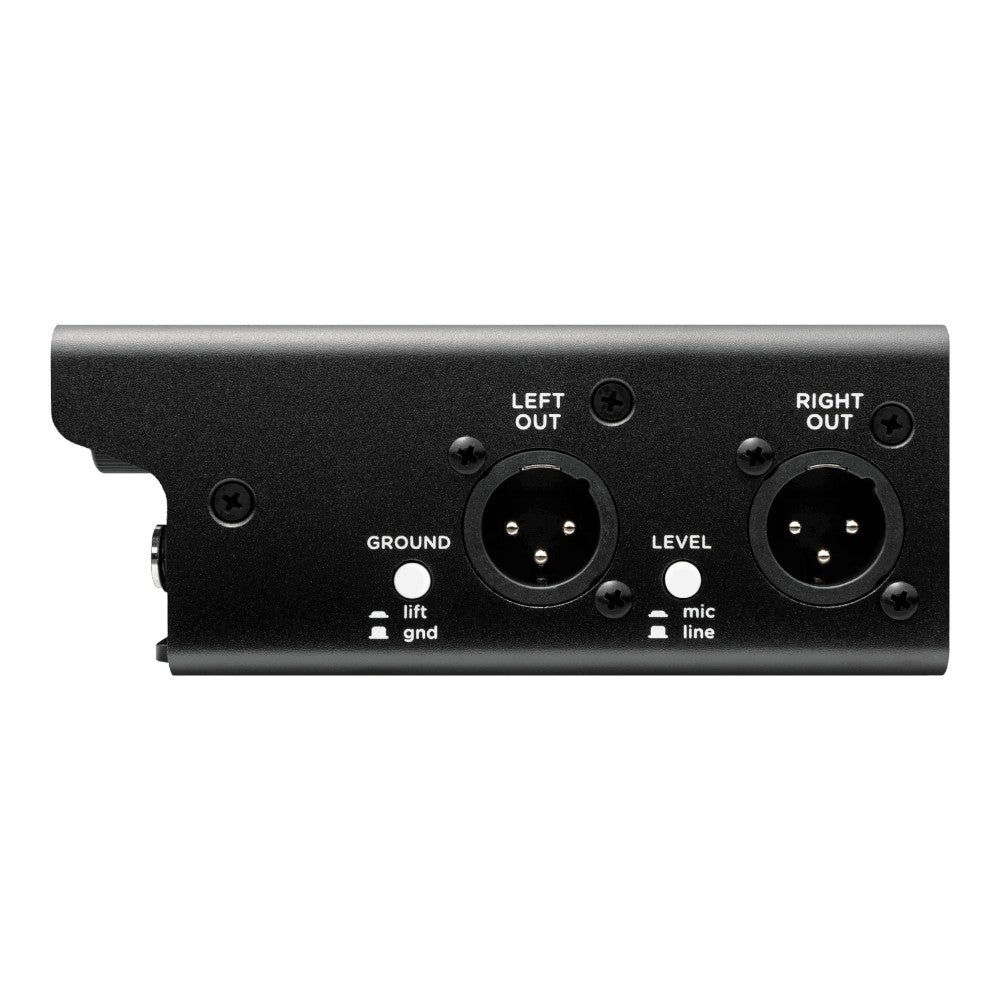

• Switchable Mic/Line level operation for the XLR outputs
• Defeatable ground lift for the XLR outputs

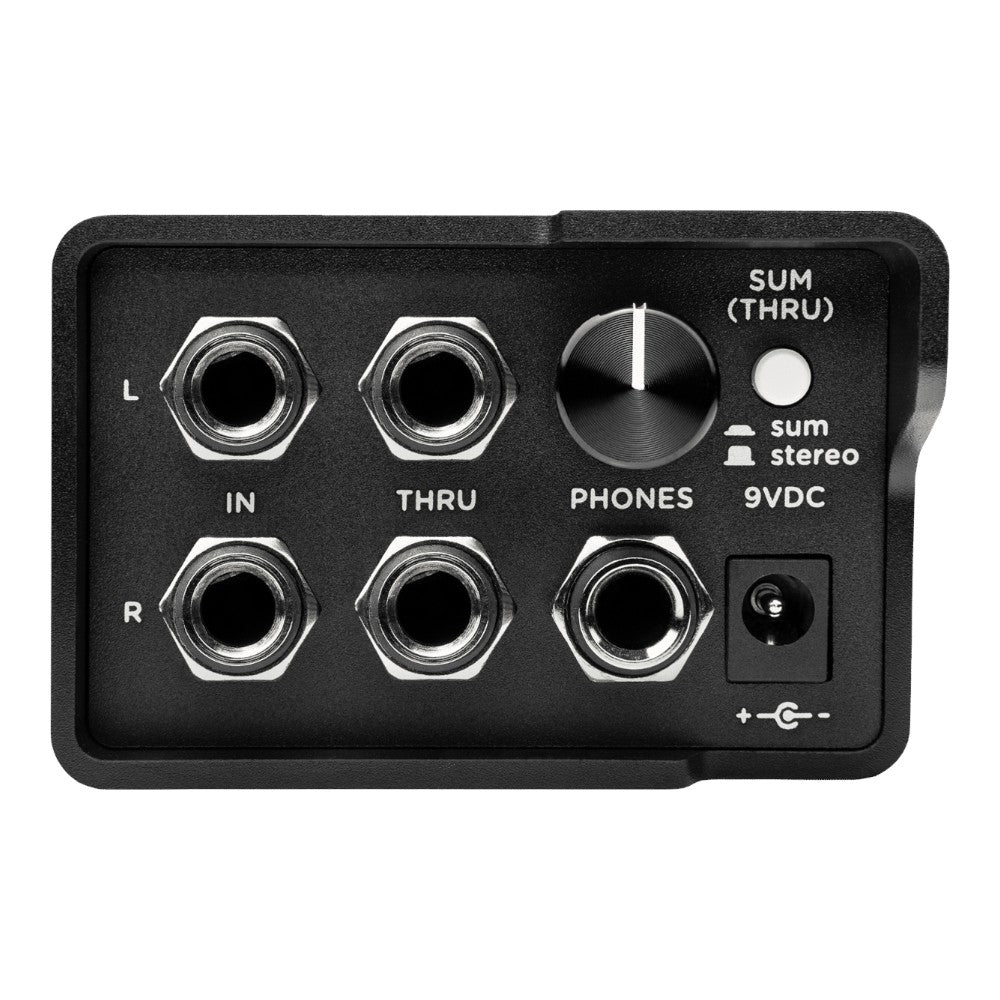

• Defeatable Sum for the Thru outputs
• Powered by a custom single-channel internal Ojai power supply
• Internal supply’s custom transformer provides galvanic isolation
• Extremely flat frequency response
• Extremely low total harmonic distortion

Connecting the output of your pedalboard to a DI is a very different thing than simply plugging your bass or guitar straight into one. Pedalboards can generate very loud output signals, enough to swamp the input of ordinary direct boxes. PCH is different, partially because it runs on 9VDC, and it has enough headroom to handle powerful incoming audio while remaining pristine, ensuring you always sound your best.

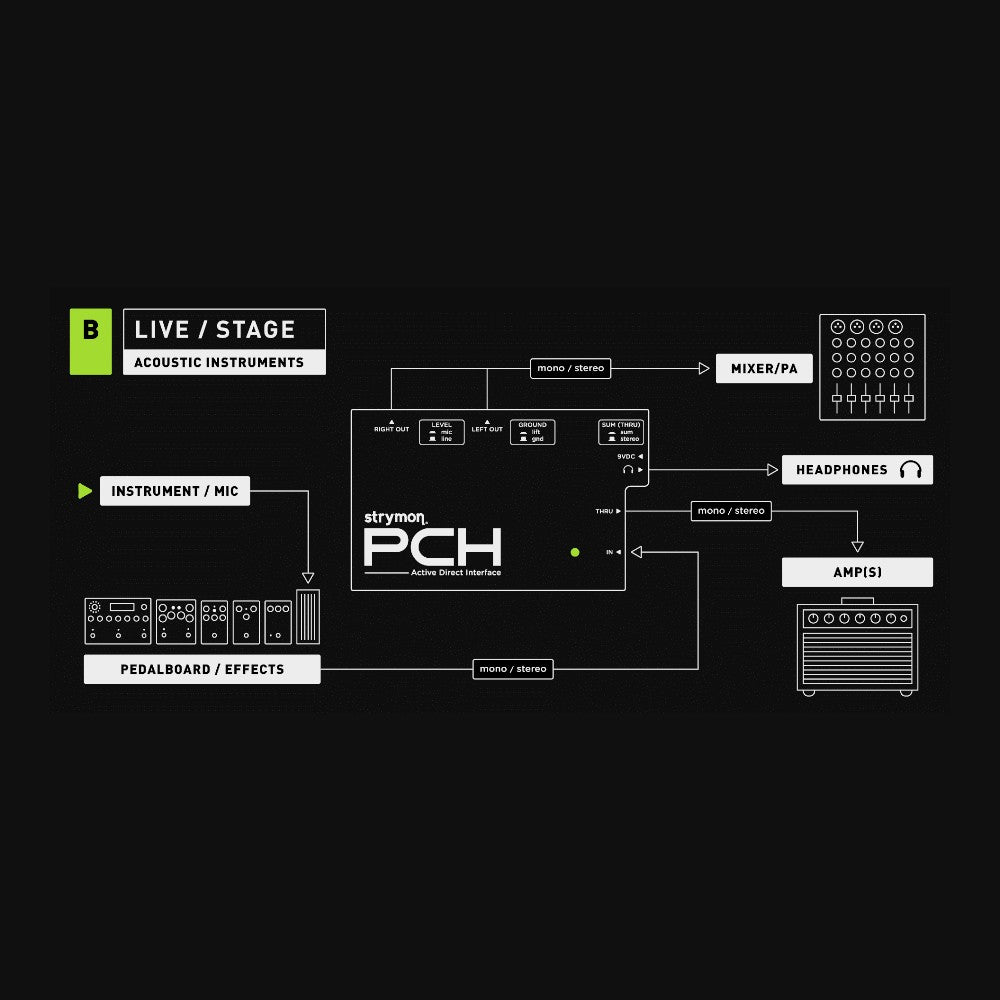

No matter what instrument or genre of music you play, if you need to connect unbalanced outputs to a PA, recording interface or flat response speaker system, PCH is the ultimate choice for an absolutely transparent stereo direct interface — and it’s the only one that you can listen to locally via the headphone amp.

• Input Impedance: 1 MΩ
• Max Input Level: +20dBu
• Thru Output Impedance: 100 Ω,  Frequency Response: +/- 0.25dB, 10Hz – 80kHz+
• SNR: +135dB (A-Weight)
• Noise Floor: -115dBV (10-22kHz no A-Weight)
• HP Output Impedance: 2 Ω, Frequency Response: +/- 0.25dB, 10Hz – 80kHz
• XLR Line Output Impedance: 275 Ω, Frequency Response: +/- 0.25dB, 10Hz – 80kHz+
• SNR: +130dB (A-Weight)
• Noise Floor: -110dBV (10-22kHz no A-Weight)
• Maximum Output Level: +20dBu
• XLR, Mic Output Impedance: 100 Ω, Frequency response: +/- 0.25dB, 10Hz – 80kHz+
• Input Voltage: 9VDC
• Current Requirement: 500mA
• Dimensions L – 4.88″ (124mm) W – 2.97″ (76mm) H -1.94″ (50mm)
