Stereo to FOH Kit - Walrus Canvas Dual Line Isolator / Stereo DI + 2x Rockboard Flat XLR Cables 20ft

Send your full stereo rig output to front of house. This kit pairs the Walrus Audio Canvas Dual with two low-profile RockBoard flat XLR cables, giving you a clean, reliable path from pedalboard to PA or interface. Whether you’re running stereo effects, a wet/dry rig, or a compact direct setup, everything you need to connect left and right channels is here in one complete, stage-ready solution.

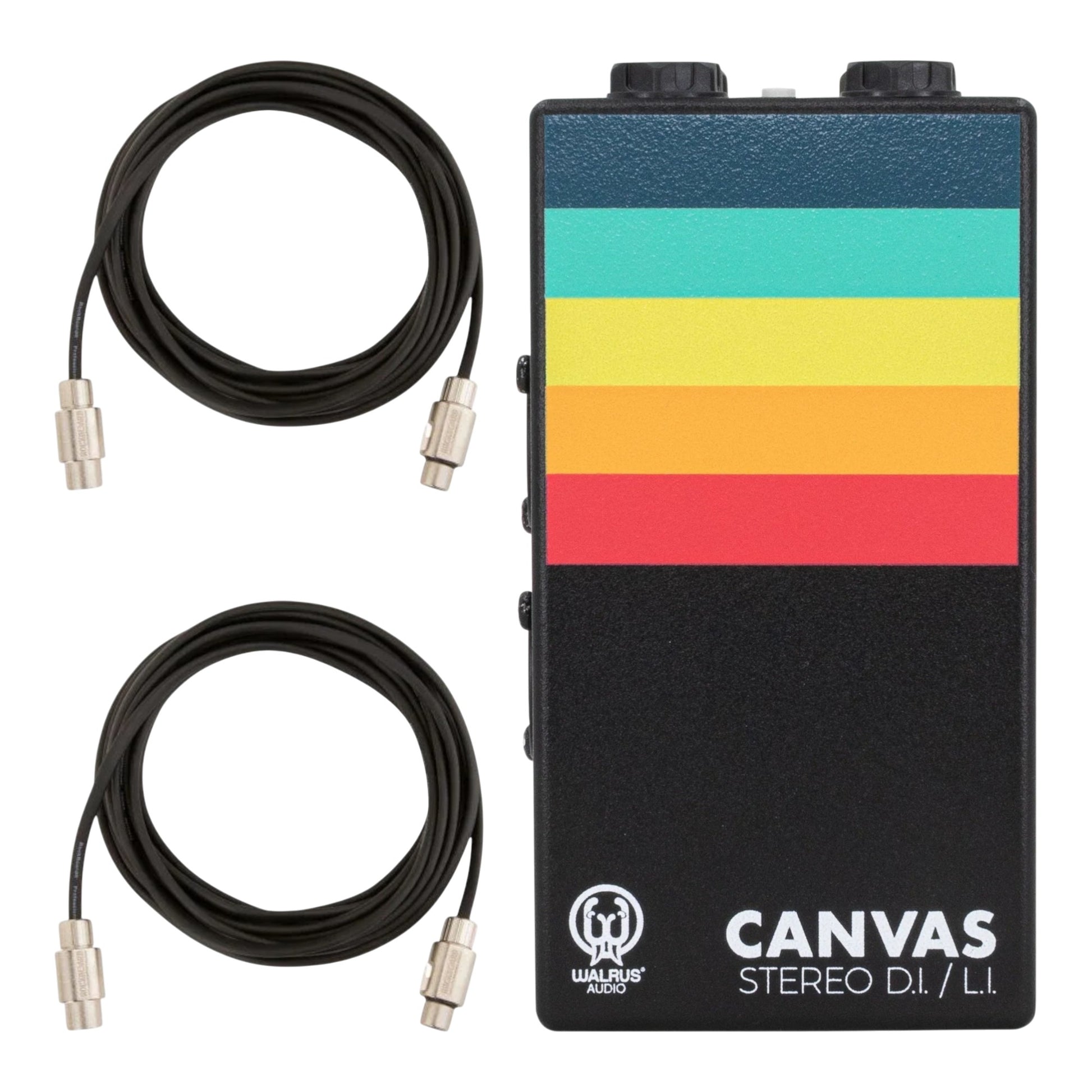

Includes:

Canvas Stereo Dual Line Isolator / Stereo DI
RockBoard Flat XLR Cable 600cm / 20ft x2

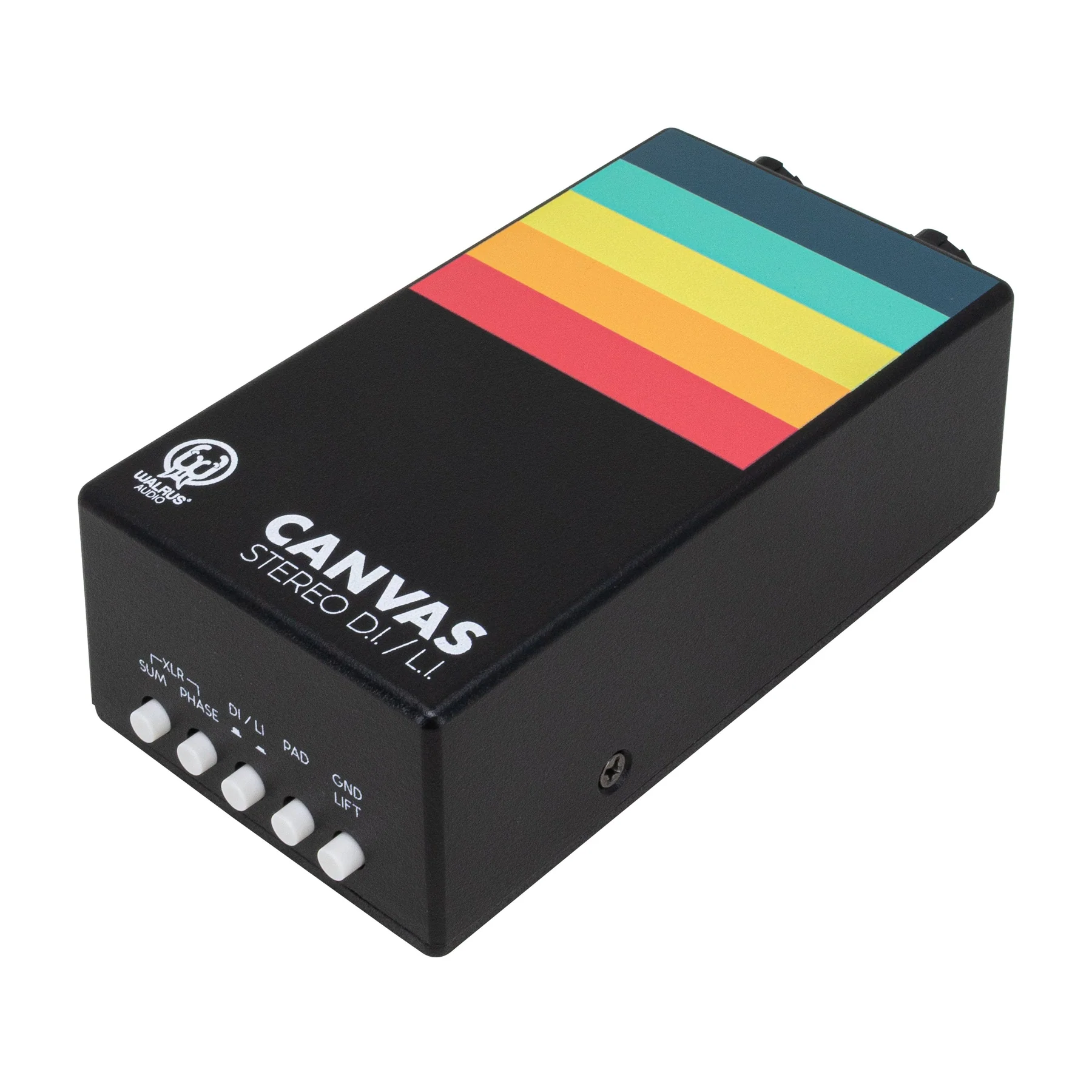

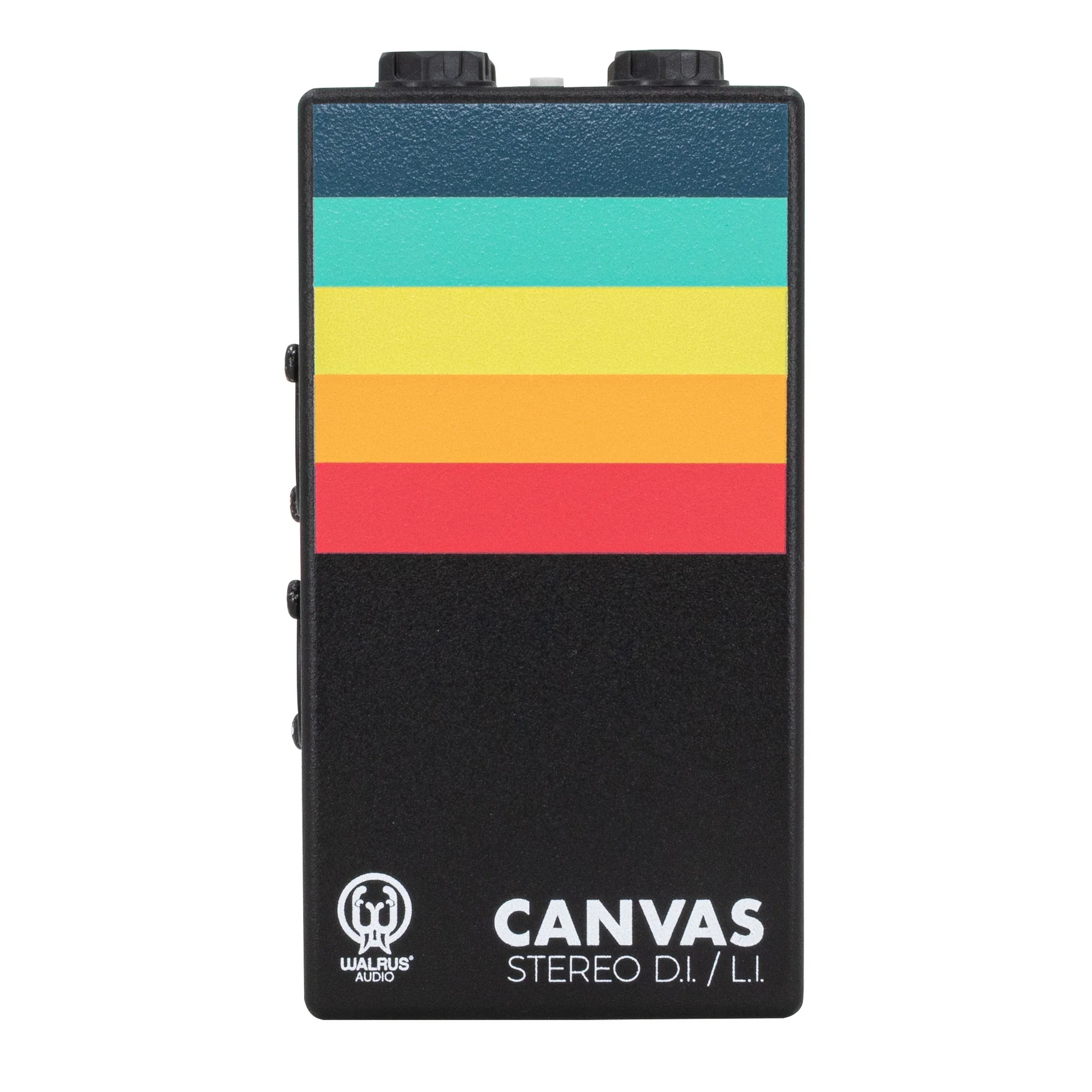

Canvas Stereo is a Direct Box/LIne Isolator designed to remove any resistance between you and your audience by giving a pristine, sonic foundation to build your stereo masterpiece upon. From houses of worship to the dive bar downtown, Canvas Stereo is built to be the performance tool that goes wherever you are making your music.

Canvas Stereo is a Passive Line Isolator (LI) and Direct Injection (DI) device that converts your unbalanced signals into balanced signals for interfacing properly with your recording interface or mixer at front-of-house. If you’re using an amp-in-a-box (DSP Guitar Rig), like our ACS1, keyboards, or any other instrument utilizing both left and right outputs, then the Canvas Stereo is your new bridge to the front-of-house. The Canvas Series DIs pack everything you need from a DI/LI into a standard pedal-sized enclosure designed to look great right on top of your board.

Canvas Stereo Features:

• Flat frequency response from 20Hz-20kHz

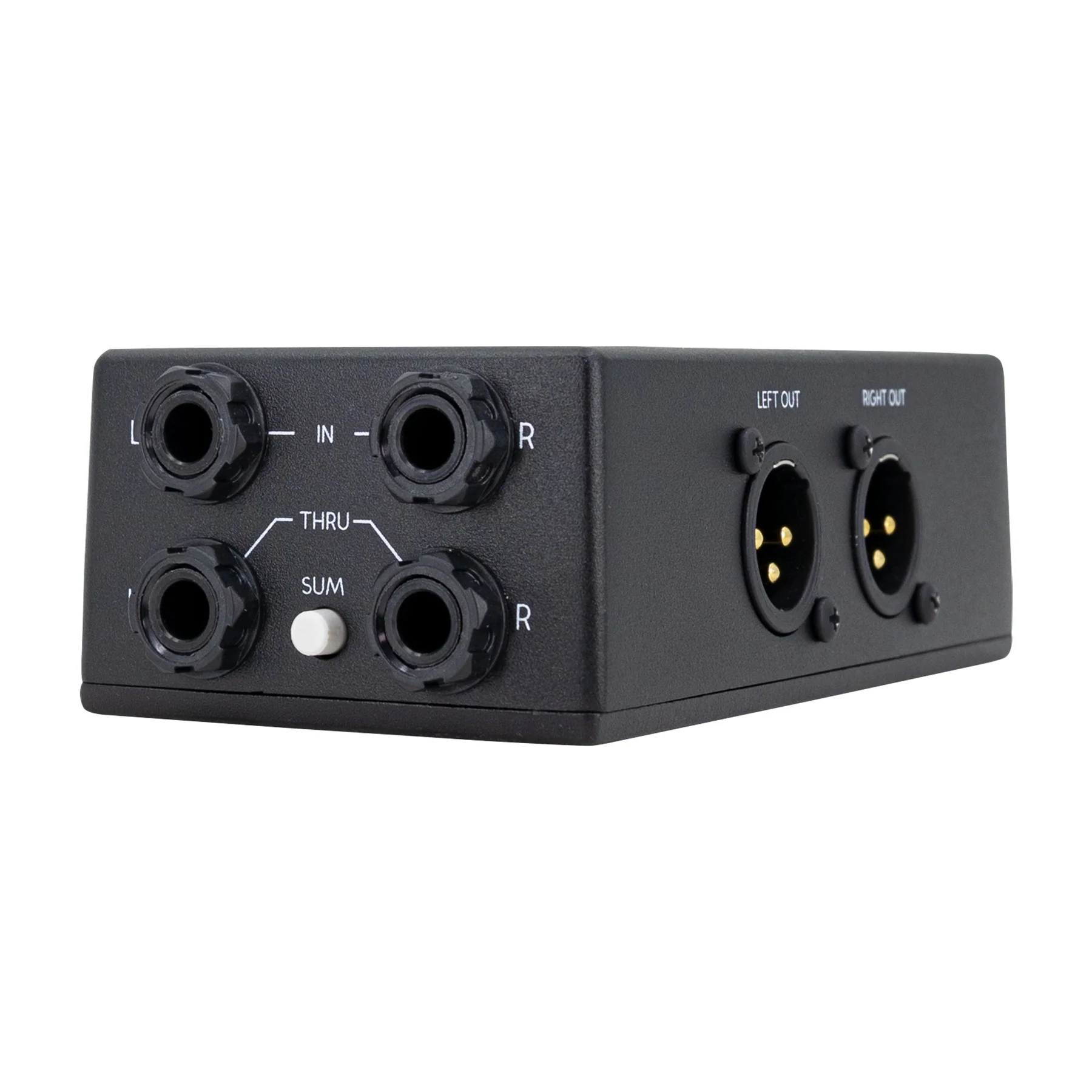

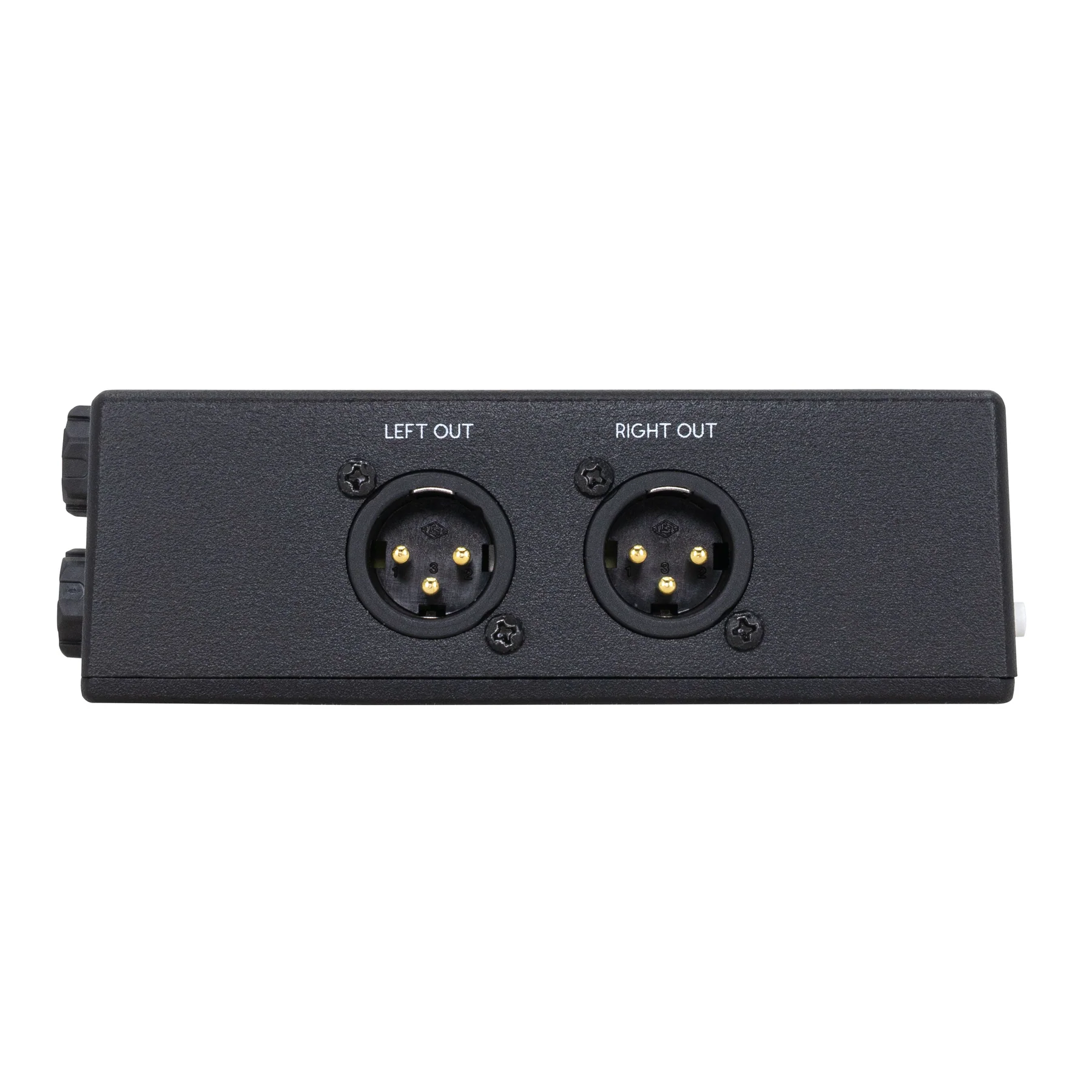

• Converts ¼” unbalanced input to XLR balanced output.
• Transformer isolated output.

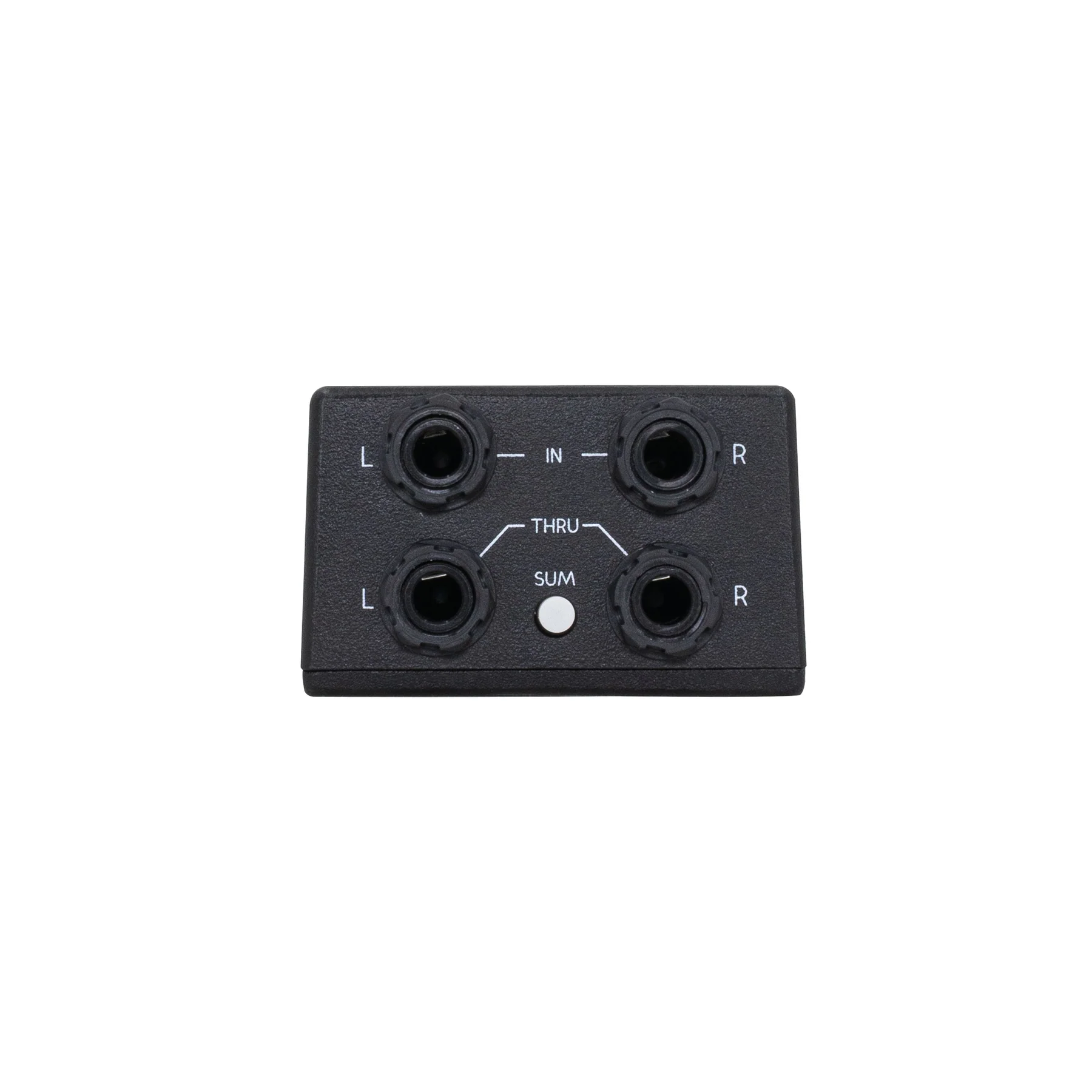

• Sum switch
  • When disengaged (out), the left input connects to the left thru. The right input connects to the right thru allowing the use of stereo amplifiers.
  • When engaged (in), Sum connects the left and right thru jacks together to combine the signals for running into a single amplifier (use either thru jack).

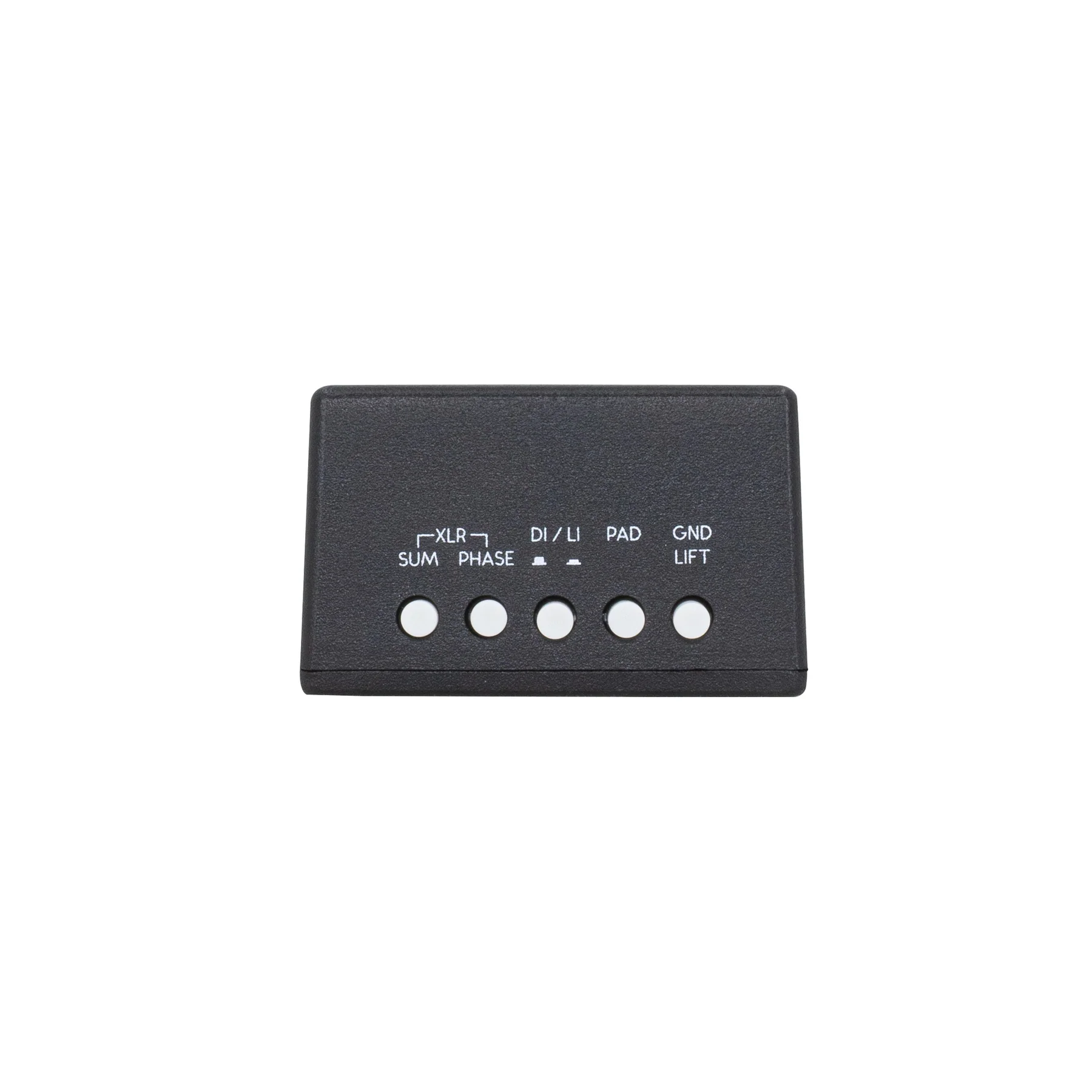

• Pad: Enabled a -15dB input pad (Only in D.I. mode) for reducing hot signals in order to minimize distortion.
• I./L.I.: Choose between Direct Injection or Line Isolator modes (Out for DI, In for LI)
• GND Lift: Isolates the GND pin on XLR to help reduce hum if present. Leave out for normal operation.
• Custom wound transformers for low THD (Total Harmonic Distortion) and full frequency response.

Direct Injection:

Use DI mode when connecting an unbalanced, high impedance source  (Electric Guitar, Bass Guitar, etc). The signal will be reduced by -20dB (-35dB with pad engaged) and converted to a balanced signal via the transformer connected to the XLR output. Use the gain on your mixer or preamp to bring up to line level. Use the LI when needing to connect your unbalanced, low impedance source (Amp + Cab Sim like the ACS1, keys, etc.). The signals will remain full volume and be converted to balanced signals via the transformer connected to the XLR output. Less preamp gain will be required in LI mode. When deciding between DI or LI, check with the manufacturer of your gear to find the output impedance of the device you are wanting to interface. For a general guide: High Impedance = anything above 1k = Use DI, Low Impedance = less than 1k = Use LI

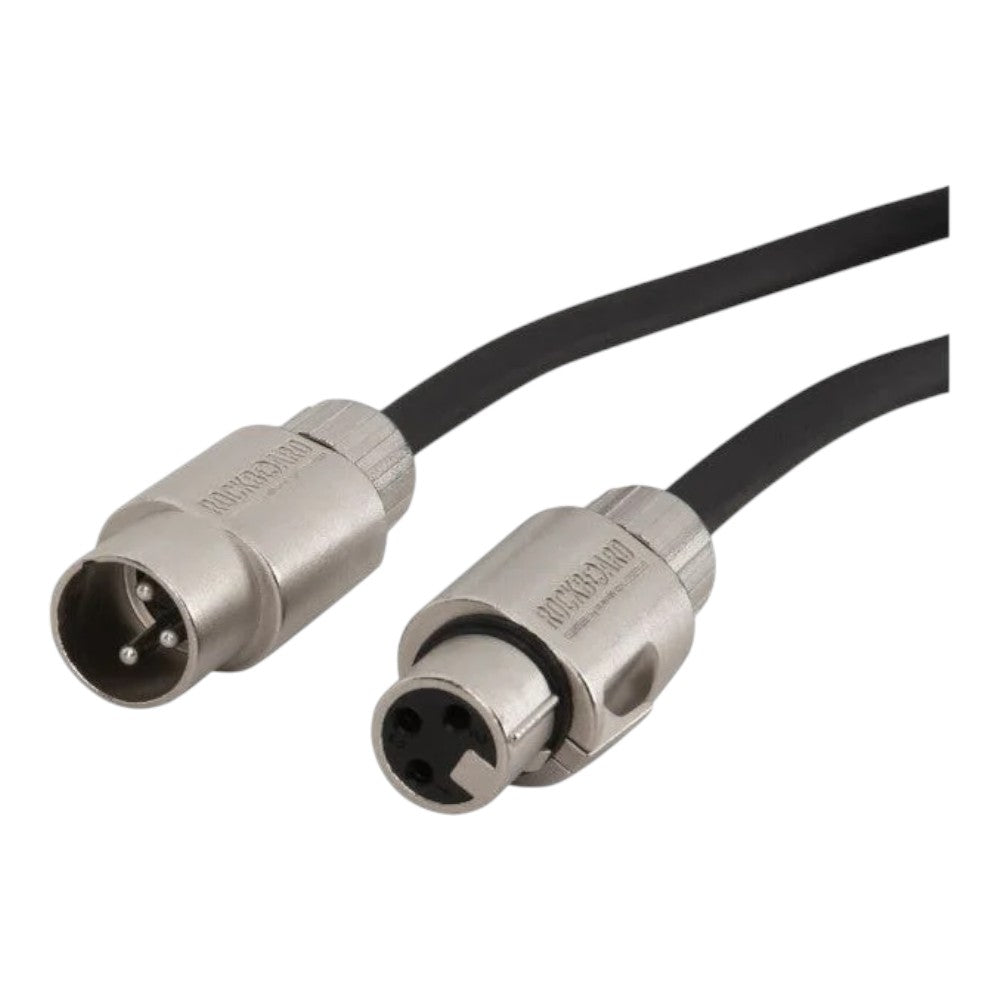

2x Includes RockBoard Flat XLR Cable 600cm / 20ft

Designed to optimize pedalboard real estate, the RockBoard Flat XLR Cables combine super flat XLR plugs and a space-saving rectangular cable profile. Of course, the Flat XLR Cables can also be used on stage, as a microphone cable, XLR patch cable, or in any possible setup where a standard XLR cable is required. The specially designed super flat XLR plugs fit through the slot grid on top of the RockBoard pedalboards and can be used on compact mixers, patchbays, or anything else to save space and to keep the setup tidy and neat looking.

• flat XLR cable with rectangular profile and super compact XLR plugs

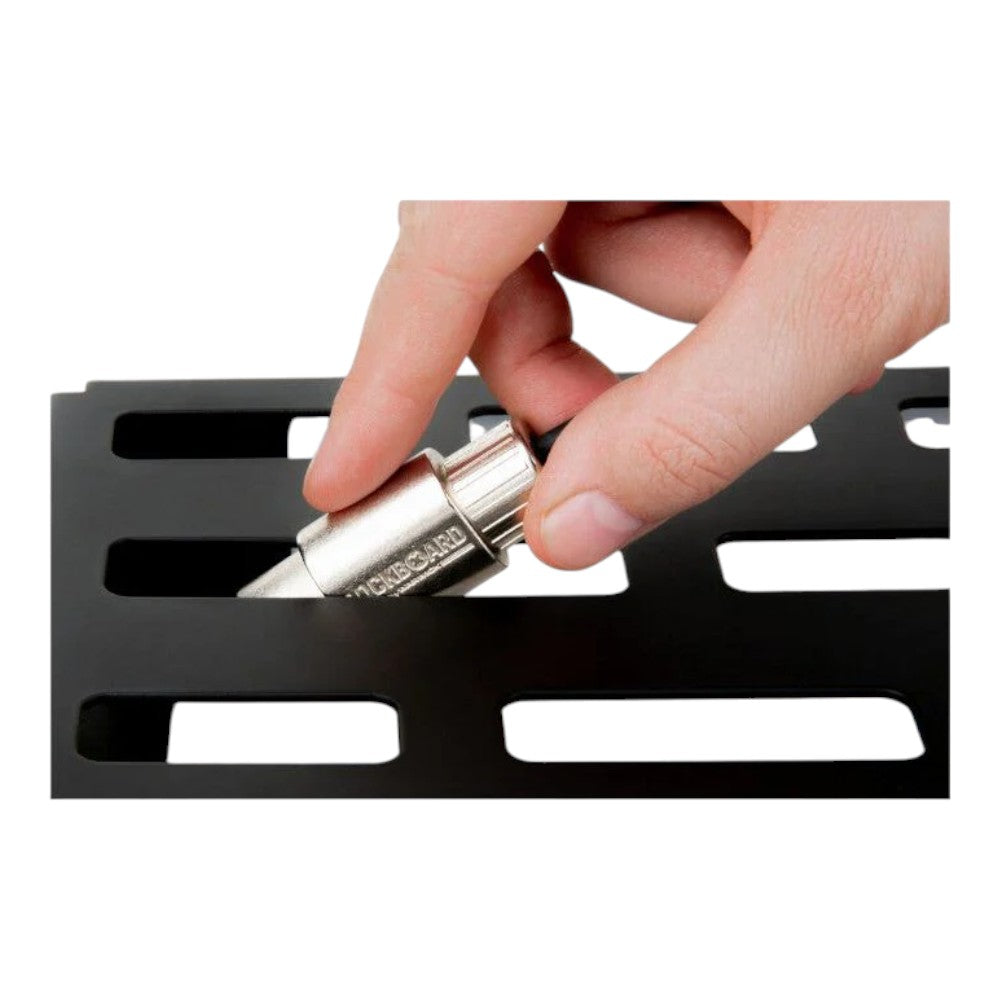

• XLR plugs fit through the slot grid on top of the RockBoard pedalboards
• gold-plated XLR connectors
• flat rectangular cable prevents cable preakage and jams
• 2 flexible copper conductors 20 x 0.12 mm (36 AWG)
• twisted copper shielding 64 x 0.12 mm (36 AWG)
• PE (polyethylene) signal insulation
• plug dimensions (L x W x H): male: 40 x 24 x 18 mm / 1 9/16" x 15/16" x 11/16", female: 43 x 24 x 18 mm / 1 11/16" x 15/16" x 11/16"
