Stereo to FOH Kit Extended Range - Strymon PCH Active Direct Interface + 2x Pig Hog Black/White Woven XLR Cable 30FT

Send your full stereo rig to front of house with a complete, stage-ready setup. This kit pairs the Strymon PCH active dual DI with two matched 30ft XLR cables, giving you a clean, consistent path from your pedalboard to a PA or interface. Ideal for larger or fixed stage setups where connection points aren’t right next to your rig.

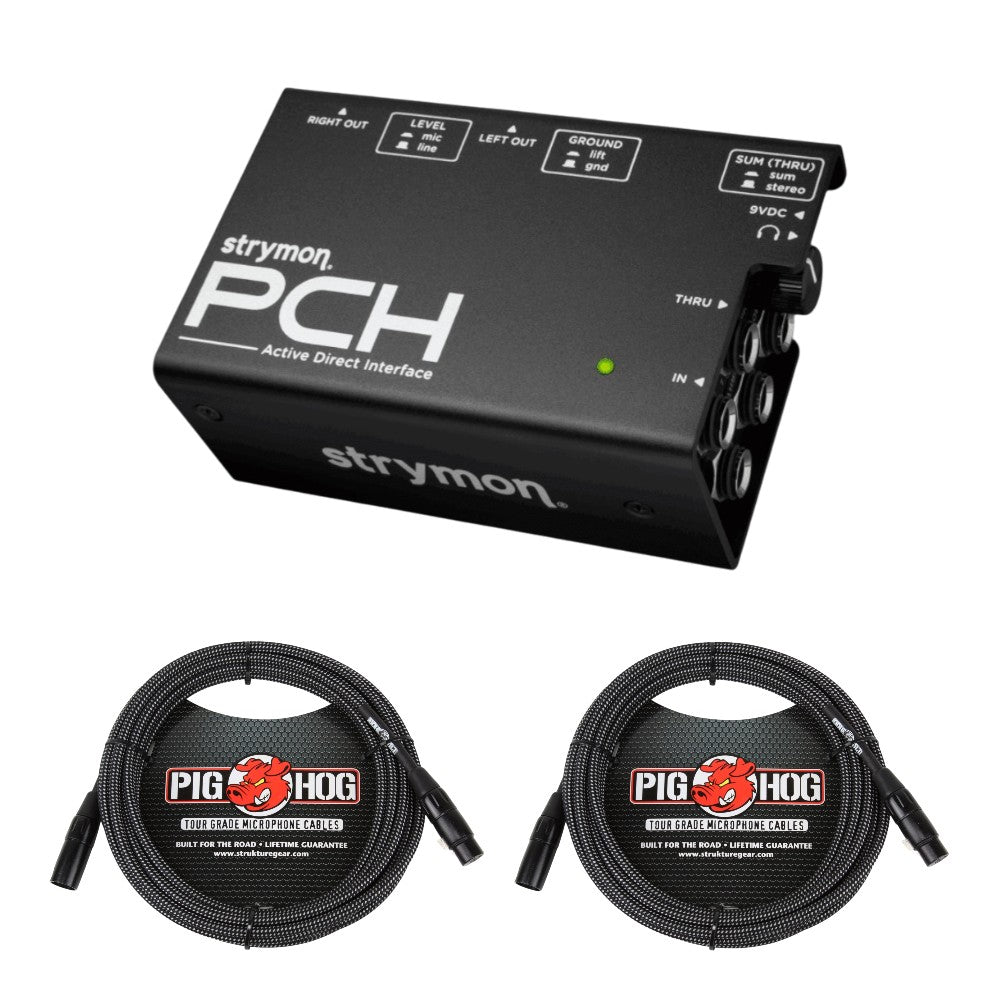

Includes:

Strymon PCH Active Direct Interface Stereo High Fidelity Direct Box and Headphone Amplifier
2x Pig Hog PHM30BKW Tour Grade Microphone Cable 30FT, Black/White Woven

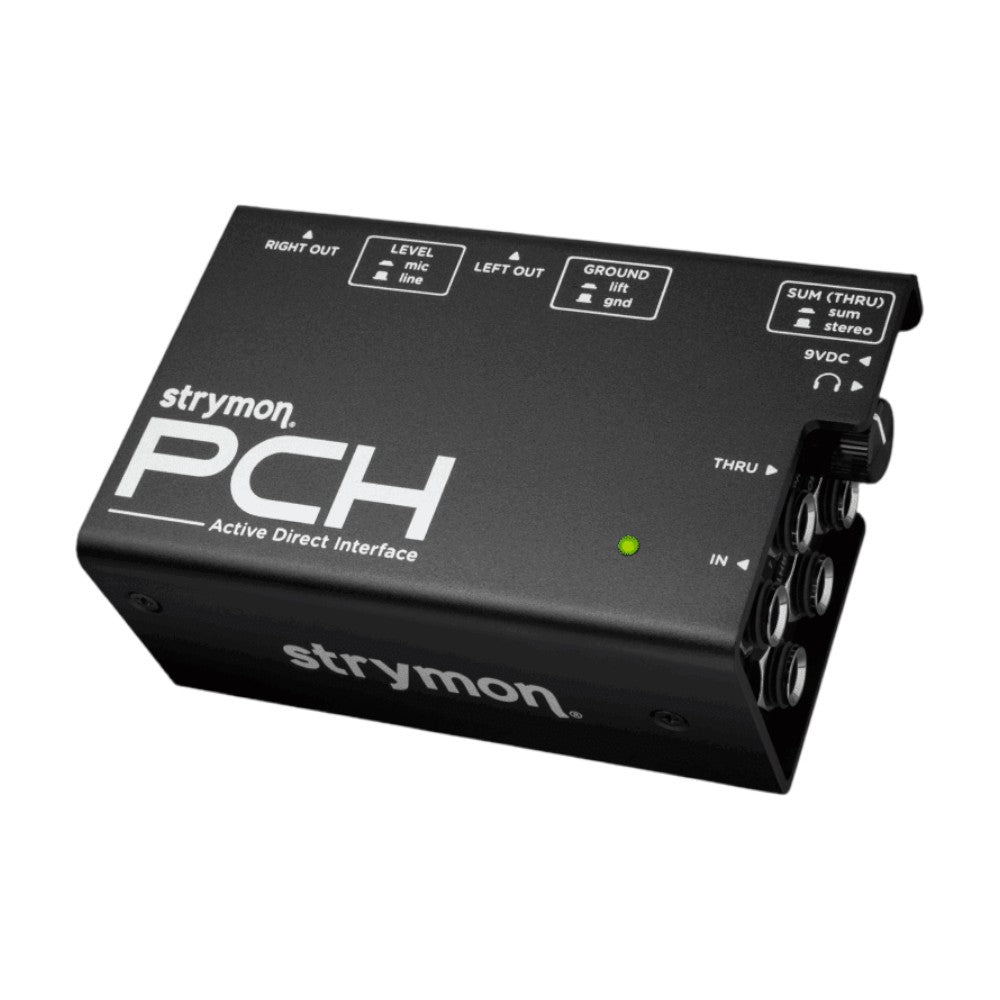

PCH is an advanced stereo active direct interface with a hidden superpower – an onboard console-quality headphone amplifier. Now you can rest easy knowing that the sound of your pedalboard won’t change even a little when passing through PCH, and the headphone amp means you won’t have to ask anyone how you sound. You’ll know.

PCH has a powerful headphone amplifier onboard, making it easy to monitor or practice listening to the sound of your entire rig or pedalboard in full stereo, no matter the pedal order or the components.

• Runs on 9VDC — internally converted to 24V to be virtually unclippable
• Onboard headphone amplifier powerful enough to drive high impedance headphones cleanly

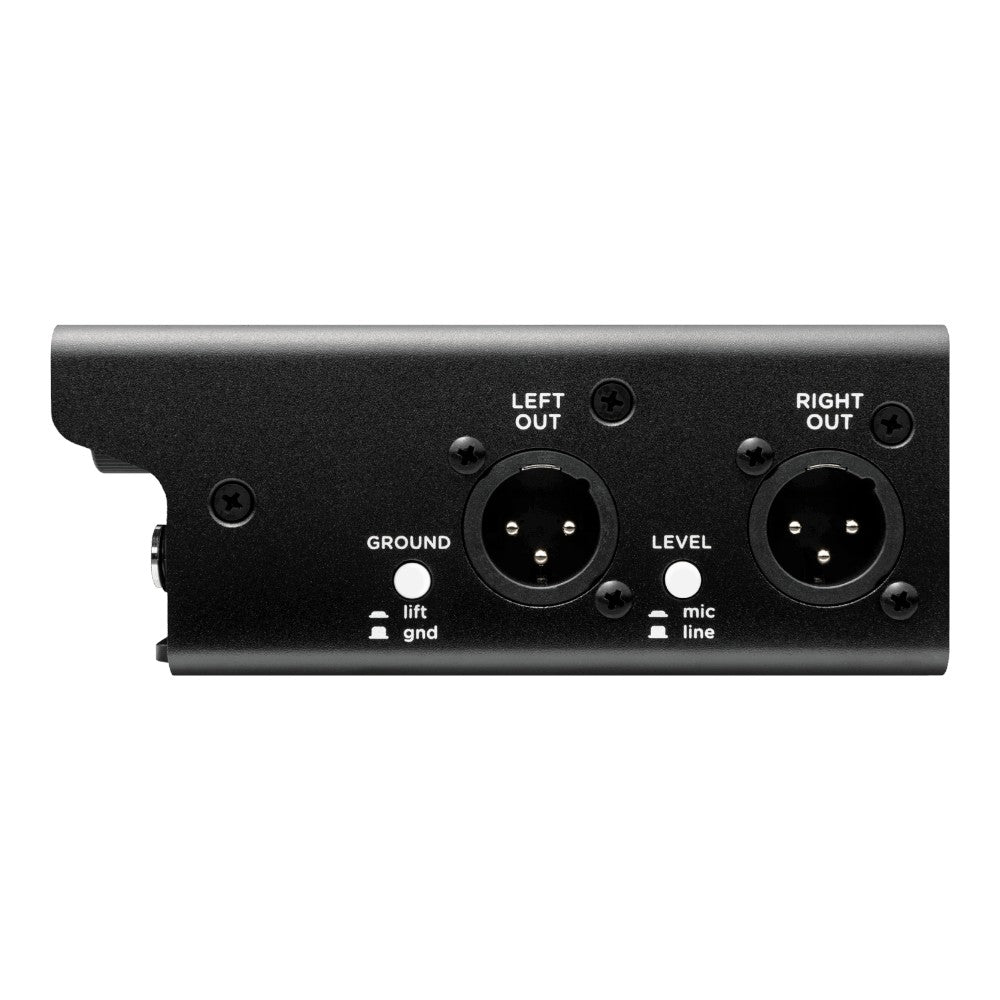

• Switchable Mic/Line level operation for the XLR outputs
• Defeatable ground lift for the XLR outputs
• Defeatable Sum for the Thru outputs
• Powered by a custom single-channel internal Ojai power supply
• Internal supply’s custom transformer provides galvanic isolation
• Extremely flat frequency response
• Extremely low total harmonic distortion

Connecting the output of your pedalboard to a DI is a very different thing than simply plugging your bass or guitar straight into one. Pedalboards can generate very loud output signals, enough to swamp the input of ordinary direct boxes. PCH is different, partially because it runs on 9VDC, and it has enough headroom to handle powerful incoming audio while remaining pristine, ensuring you always sound your best.

No matter what instrument or genre of music you play, if you need to connect unbalanced outputs to a PA, recording interface or flat response speaker system, PCH is the ultimate choice for an absolutely transparent stereo direct interface — and it’s the only one that you can listen to locally via the headphone amp.

• Input Impedance: 1 MΩ
• Max Input Level: +20dBu
• Thru Output Impedance: 100 Ω,  Frequency Response: +/- 0.25dB, 10Hz – 80kHz+
• SNR: +135dB (A-Weight)
• Noise Floor: -115dBV (10-22kHz no A-Weight)
• HP Output Impedance: 2 Ω, Frequency Response: +/- 0.25dB, 10Hz – 80kHz
• XLR Line Output Impedance: 275 Ω, Frequency Response: +/- 0.25dB, 10Hz – 80kHz+
• SNR: +130dB (A-Weight)
• Noise Floor: -110dBV (10-22kHz no A-Weight)
• Maximum Output Level: +20dBu
• XLR, Mic Output Impedance: 100 Ω, Frequency response: +/- 0.25dB, 10Hz – 80kHz+
• Input Voltage: 9VDC
• Current Requirement: 500mA
• Dimensions L – 4.88″ (124mm) W – 2.97″ (76mm) H -1.94″ (50mm)

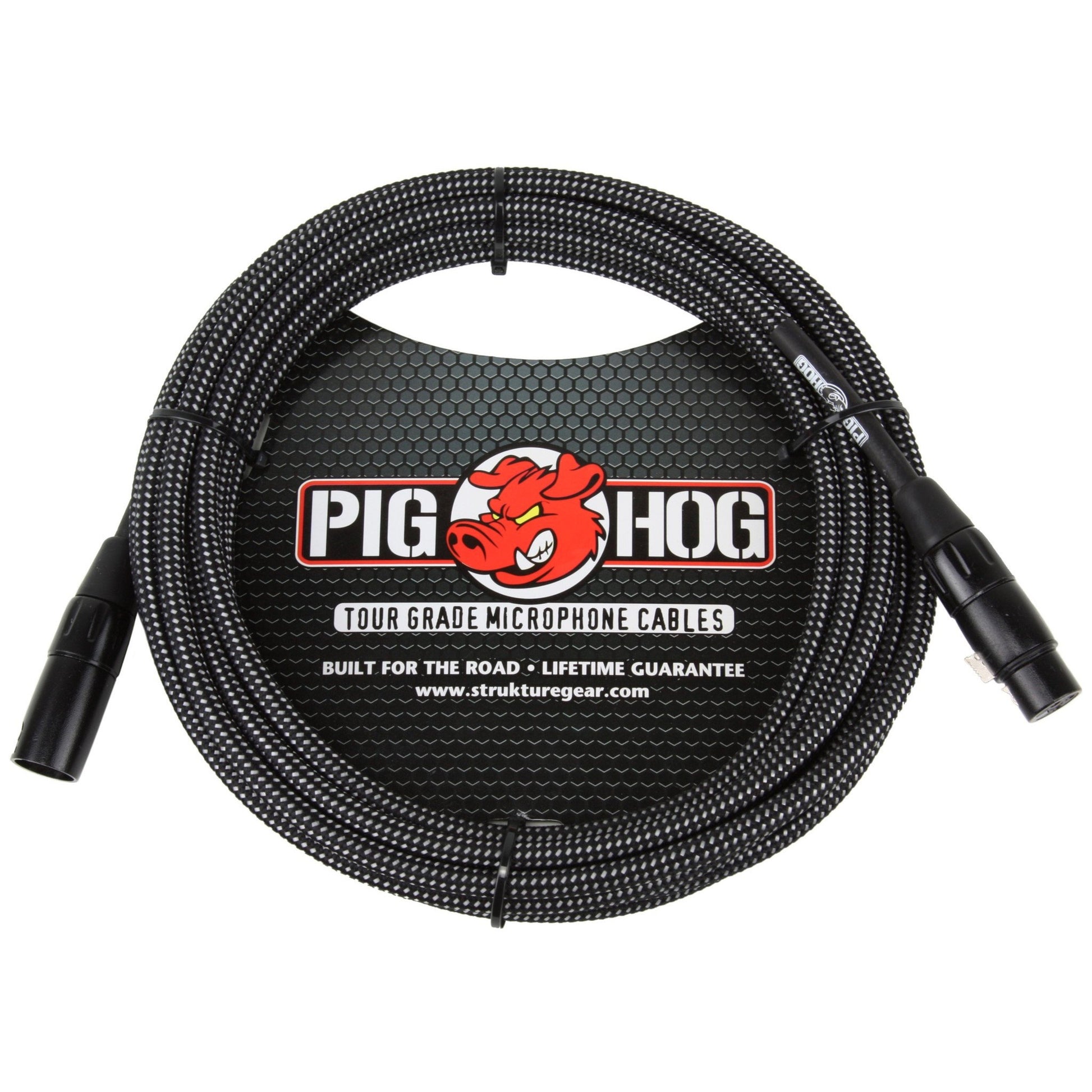

Includes 2x Pig Hog PHM30BKW Tour Grade Microphone Cable 30FT, Black/White Woven

Pig Hog Vintage Series cables are precisely overbuilt to stand up to the most grueling tour conditions imaginable. They feature extra-thick tour grade wire, unique high quality woven jackets, performance quality connectors, and tension-resistant stress relief. And with Pig Hog's "no question" lifetime guarantee, we've got your back for the life of the cable. Don't settle for those fat-free cables. Grab hold of a Pig Hog!

• High performance instrument cable
• Unique, high quality, woven outer covering
• XLR - XLR connectors
• Lifetime guarantee
