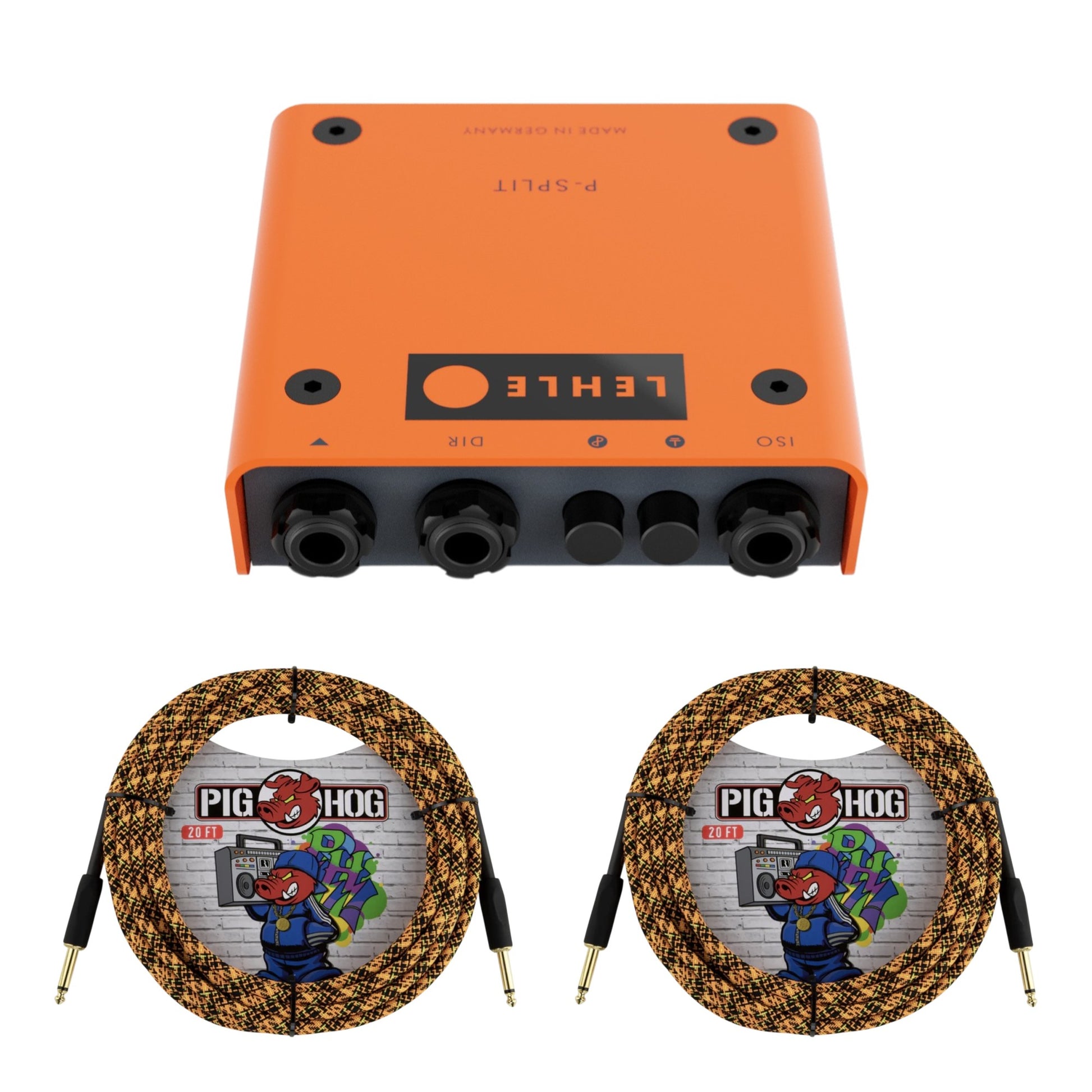

Split Amp Kit - Lehle P-Split III Passive Splitter DI + 2x Pig Hog PCH20GOR Cable 20FT, Orange Graffiti

Split your signal to two amps or amp and front of house without noise, ground loops, or guesswork. This kit pairs the Lehle P-Split III with two matched 20ft instrument cables, giving you a clean, isolated path to both destinations in one complete setup.

Includes:

Lehle P-Split III Passive Splitter DI
2x Pig Hog PCH20GOR VIntage Woven Cable 20FT, Orange Graffiti

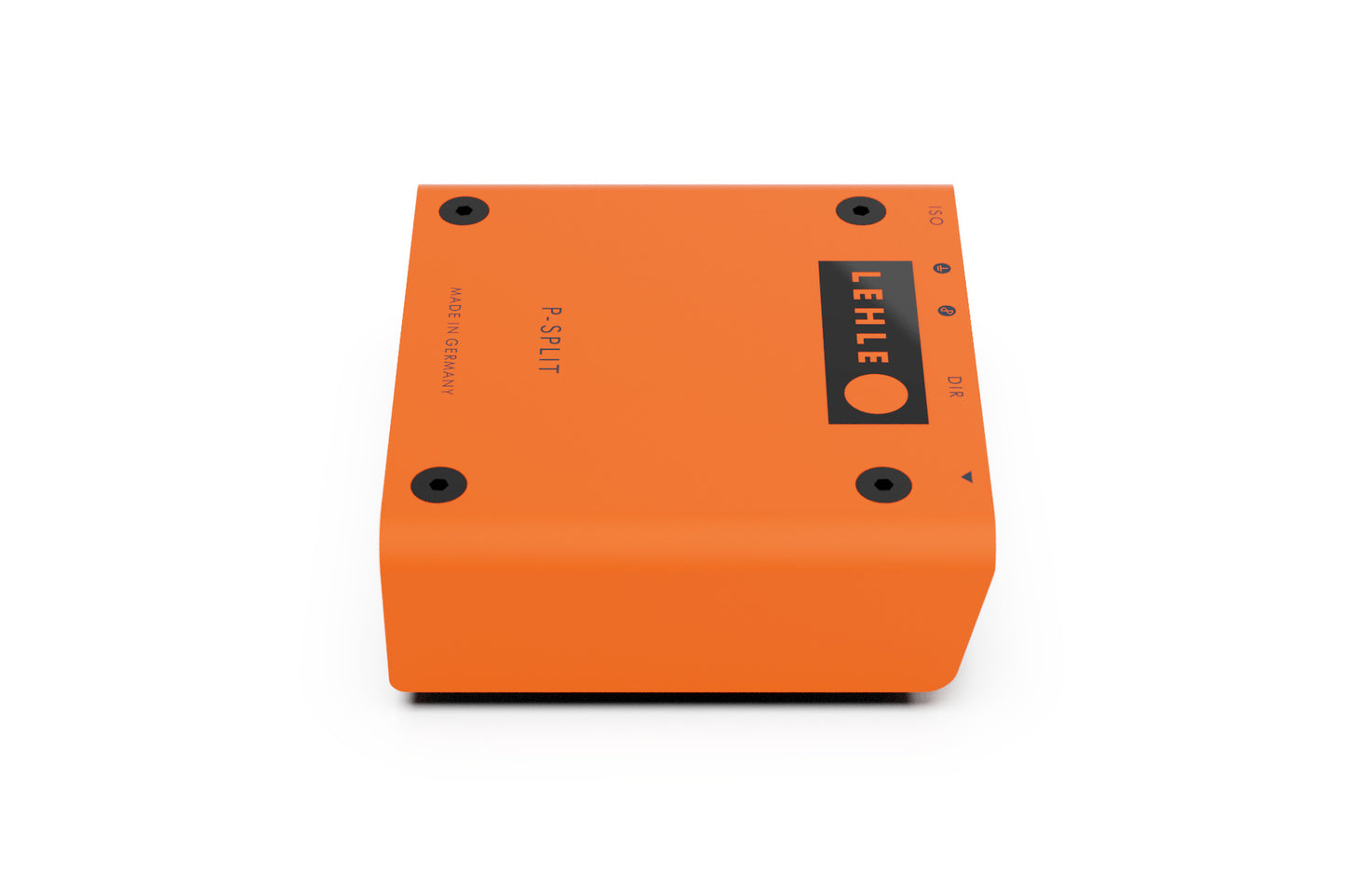

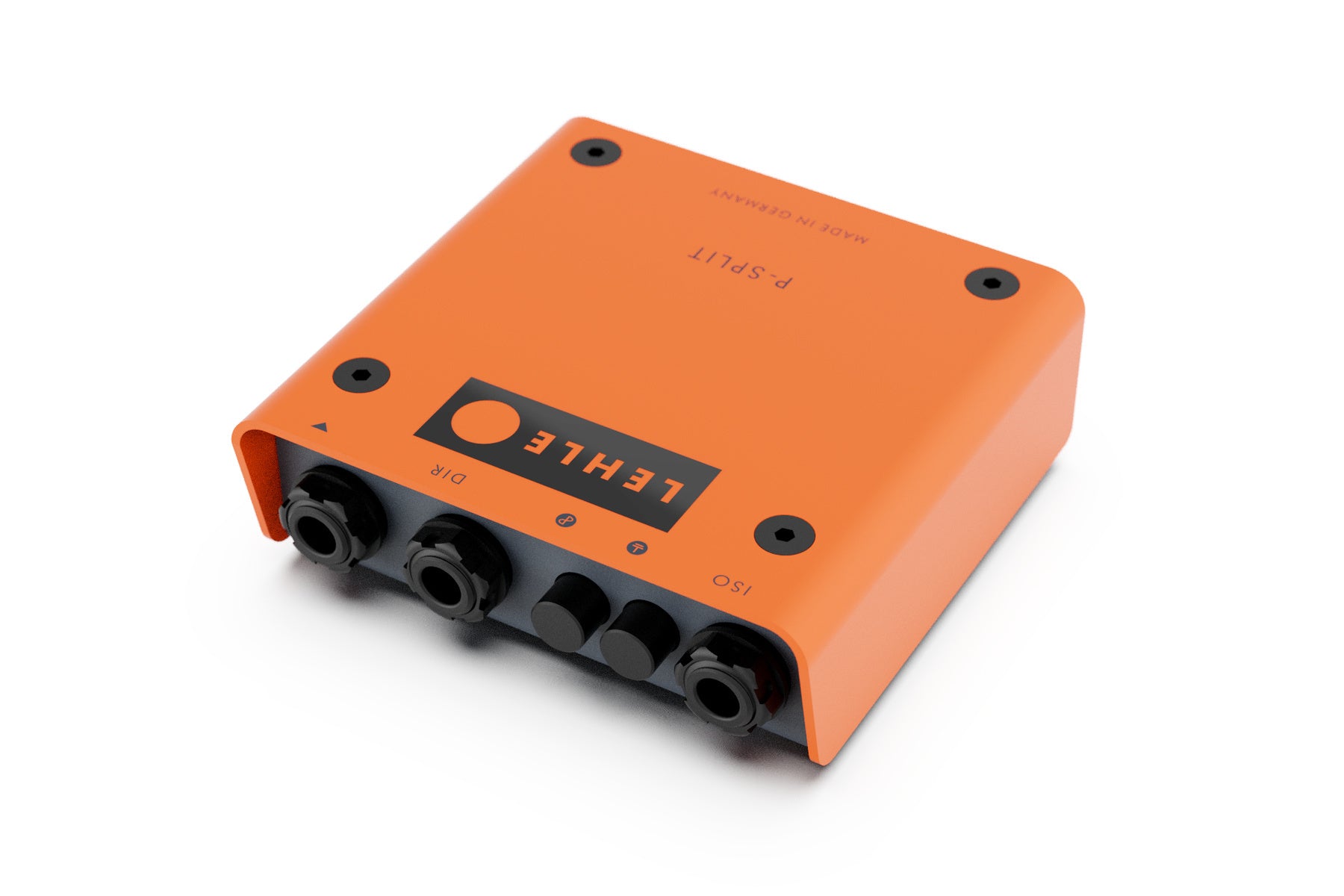

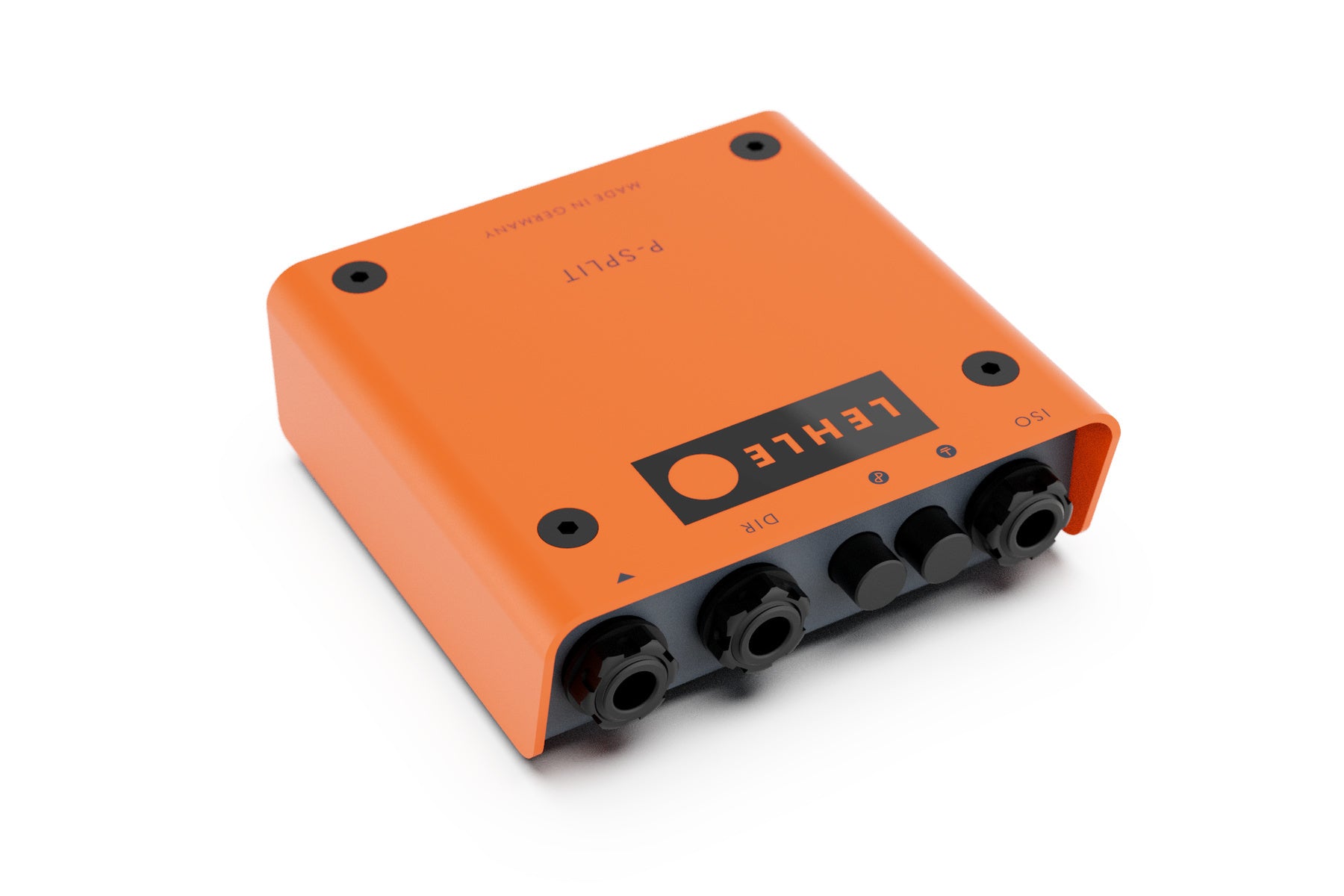

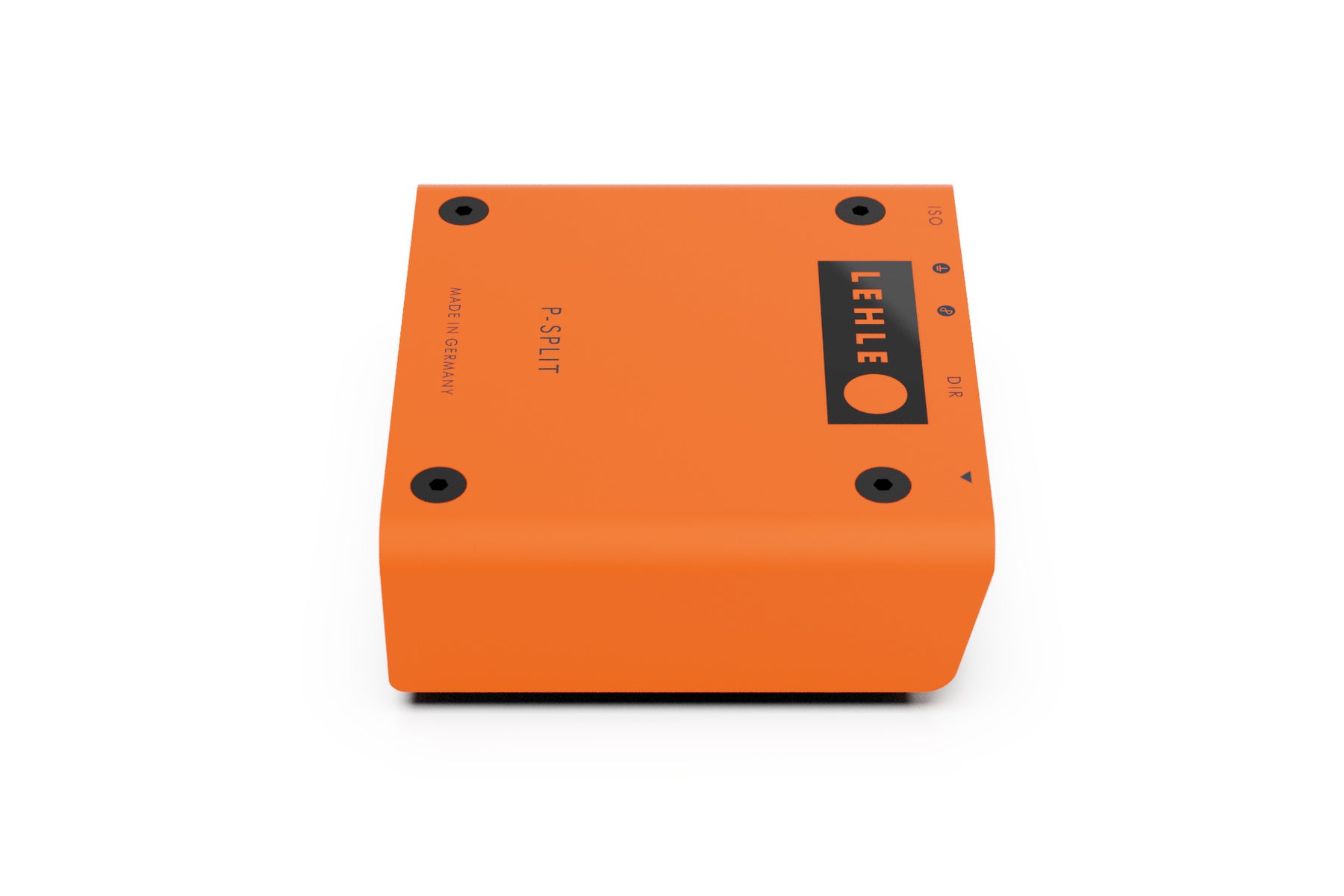

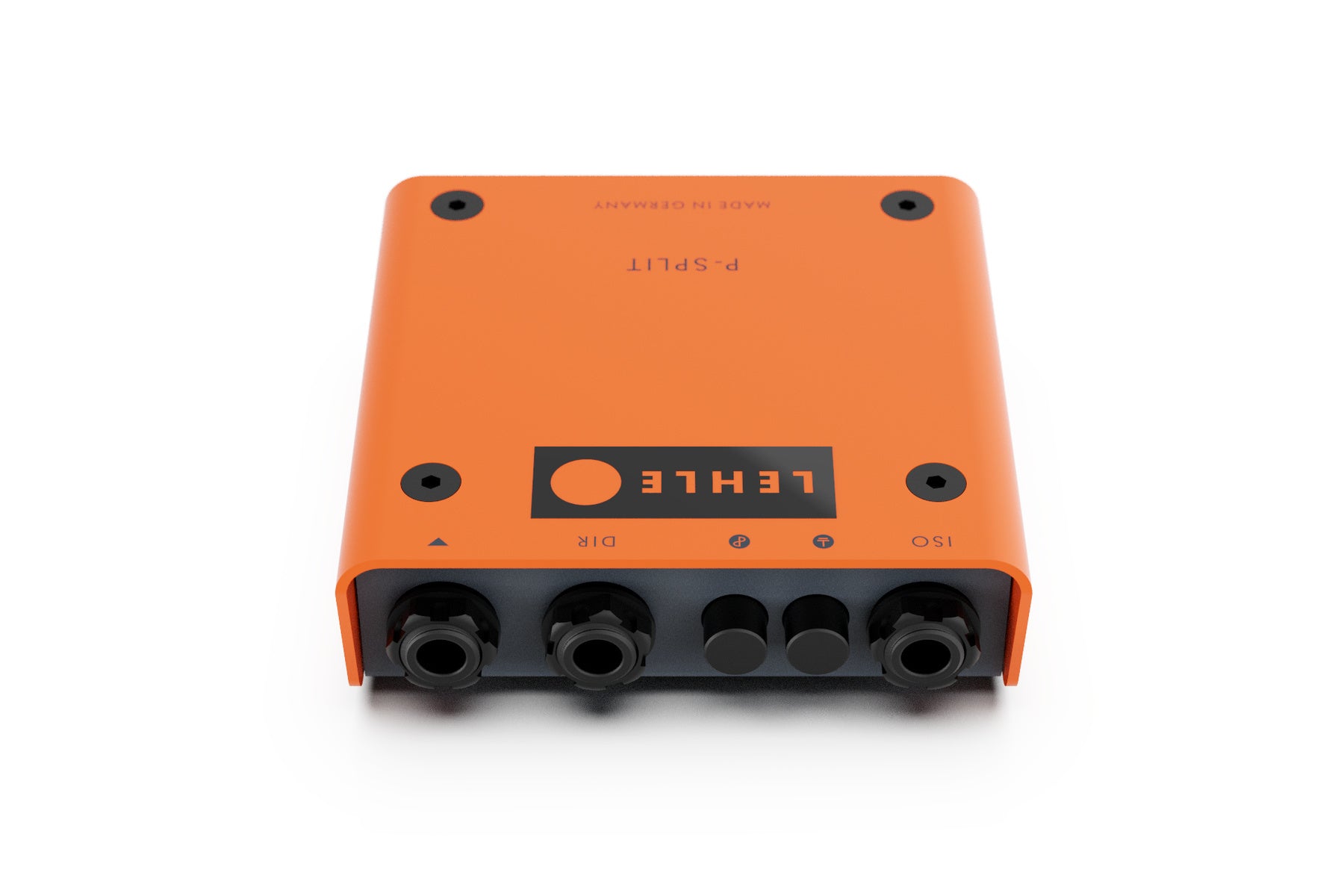

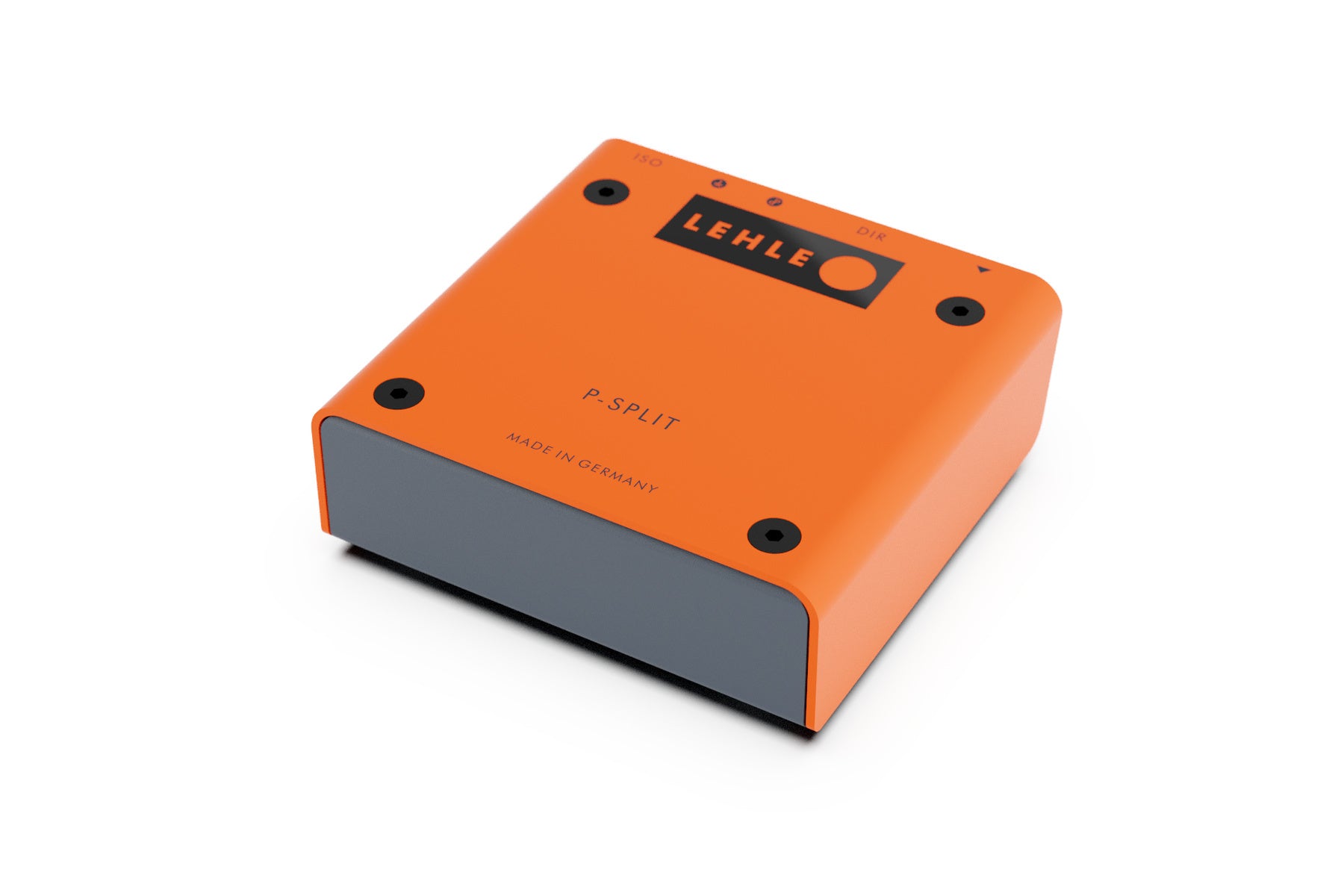

The LEHLE P-SPLIT III combines passive splitting with the highest possible signal fidelity.

• Passive splitter and DI box
• Absolutely no signal loss or hum
• High-impedance LEHLE TRANSFORMER HZ with phase and ground switch
• Suitable for balanced or unbalanced signals

Its applications range from splitting signals and eliminating hum, to balancing and reamplification along with any signal routing that requires a clean signal free from noise.

At its core is the high-end LEHLE TRANSFORMER HZ, which galvanically isolates the two outputs, eliminating any possibility of ground loops. The LEHLE TRANSFORMER HZ was specially designed for use with high-impedance signals but also splits low-impedance signals with uncompromising sound quality. The signal can be picked off either symmetrically or asymmetrically from the ISO output.

By using the phase inverter switch with gold-plated contacts you can flip the signal phase at the ISO output, preventing phase cancellation from impairing signal reproduction.

The classic application for the LEHLE P-SPLIT III is splitting an input signal to two outputs, enabling you to connect an instrument to two devices, which may, for example, be two amplifiers, or an amp and a mixer/recording unit (PC/DAW). Thanks to its ability to pick off the balanced signal on the ISO output, the LEHLE P-SPLIT III is also eminently suitable for use as a high-quality compact DI box for all types of signal.

Another useful application for the LEHLE P-SPLIT III is as a hum suppressor. Frequently background noise caused by ground loops occurs when two electronic devices are connected to each other. The LEHLE P-SPLIT III provides a simple, but extremely effective remedy when installed between the two units. Using the ISO output, the devices are galvanically isolated and background noise becomes a thing of the past.

You can even use the versatile LEHLE P-SPLIT III as a passive mono summing unit for a stereo signal by using the DIR output as second input.

And just in case you are looking for a power connection: the LEHLE P-SPLIT III performs all its functions without any need for a power supply.

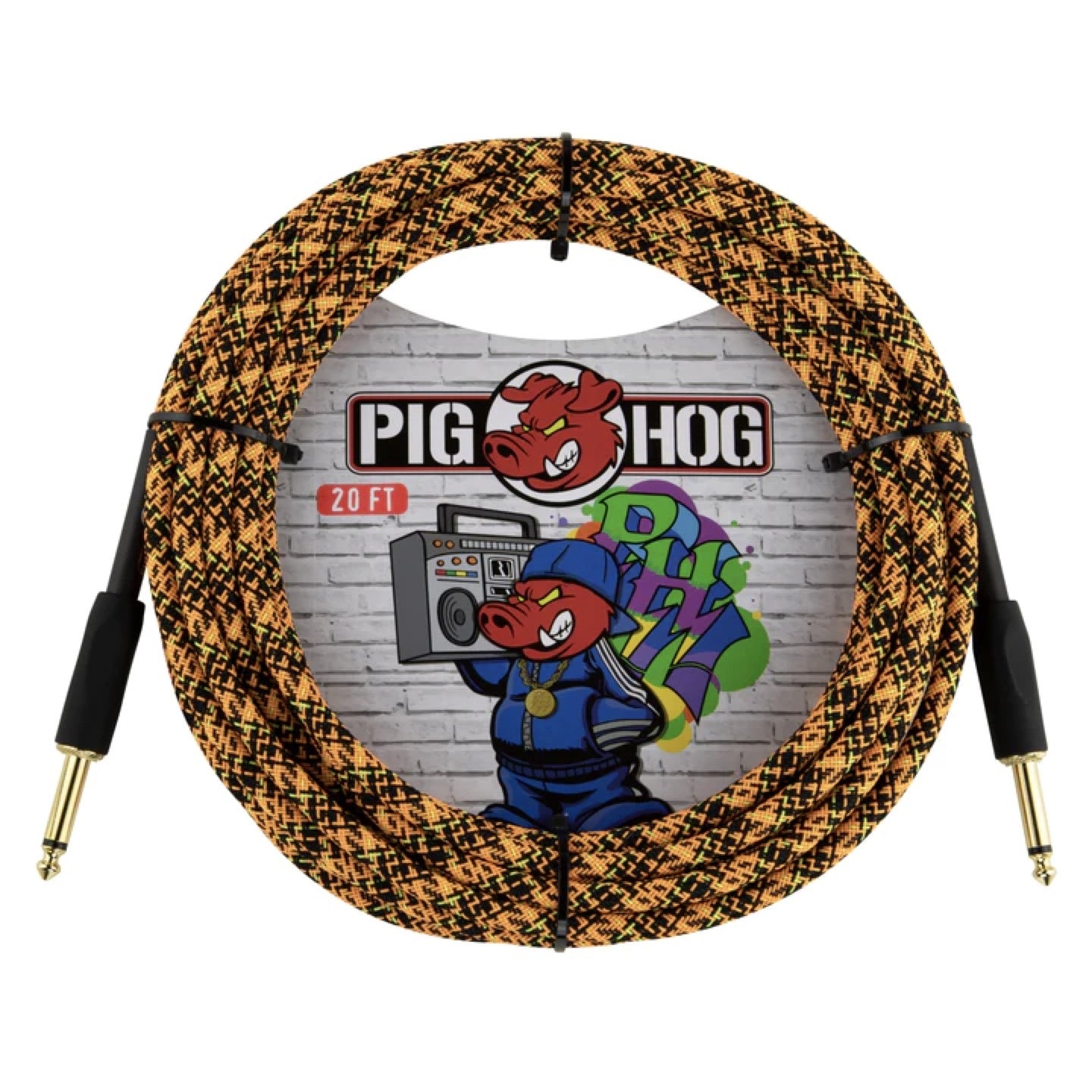

Includes 2x Pig Hog PCH20GOR Cable 20FT, Orange Graffiti

Pig Hog has always looked beyond the normal order, in favor of flavor and creativity. The Graffiti Series draws inspiration from spray-can catalyzed aerosol art. The cable patterns paint a visually colorful communication of controlled chaos. Like all Pig Hog cables, the Graffiti Series cables are precisely overbuilt to stand up to the most grueling tour conditions imaginable, while adding splashes of color to make your rig really pop! Our cables are designed to provide the highest quality performance with outstanding value. We understand your cables need to sound great and perform reliably, night after night, without costing you an arm or a leg! That’s why we use a high quality 7mm woven jacket that won’t fray, and resists kinking and tangling. Our proprietary OFC conductor technology and robust shielding is designed to ensure your sound is crystal clear, without noise or interference, every time. Each cable is hand tested before shipment, and we back up our quality with a lifetime warranty so you can be sure your Pig Hog Cables will be an integral part of your rig for years to come.

• High performance instrument cable
• Unique, high quality, woven outer covering
• Gold plated 1/4"-1/4" straight connectors
• Lifetime guarantee
