Rockboard Mini Mounting MOD TRS Pedalboard Patchbay Interface
Rockboard Mini Mounting MOD TRS Pedalboard Patchbay Interface
Regular price
$16.99 USD
Regular price
$0.00 USD
Sale price
$16.99 USD
Unit price
per
Shipping calculated at checkout.
In stock
Full Manufacturer's Warranty | 30 Day Returns
Couldn't load pickup availability
All items for sale (unless otherwise indicated as Used or Preowned) are brand new. Z String Music is a directly licensed or authorized dealer and all new items carry the full manufacturer's warranty.

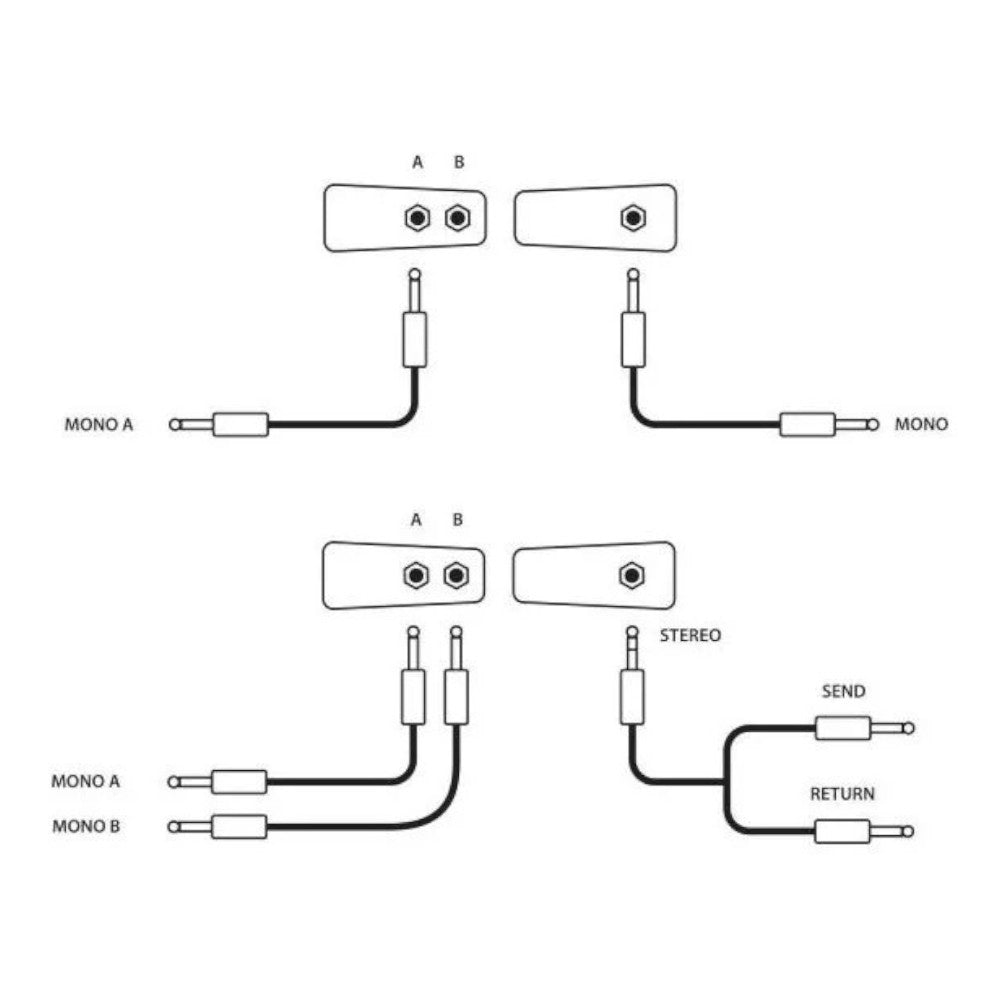

The Mini Mounting MOD TRS provides convenient access to the signal supply of the pedals on the board. It fits perfectly into the RockBoard® LED Light mounting holes and is a versatile, clean mounting solution on all RockBoard® series pedalboards. Central access to the signal supply is provided by a TRS 6.3 mm stereo jack socket. Since the Mini Mounting MOD TRS uses through-connections between the inner and outer jacks, it is also possible to pass signals in the reverse direction to external pedals, such as Wah. Also, by using TRS stereo jacks, „send/return“ applications (A- = tip and B- = ring) are easy to realize.
- Mounting solution for RockBoard pedalboards
- Fits in the mounting hole for the RockBoard LED Light
- 1 x 6.3mm (1/4") TRS jack to 2 x 6.3 mm (1/4") TRS jack
- No drill holes are necessary
- Dimensions: (W x D x H): 25 - 20 x 35 x 70 mm - 63/64"- 25/32" x 1 3/8" x 2 3/4"
- Weight: 50 g / 0.11 lbs
- Incl. mounting screws
