All items for sale (unless otherwise indicated as Used or Preowned) are brand new. Z String Music is a directly licensed or authorized dealer and all new items carry the full manufacturer's warranty.

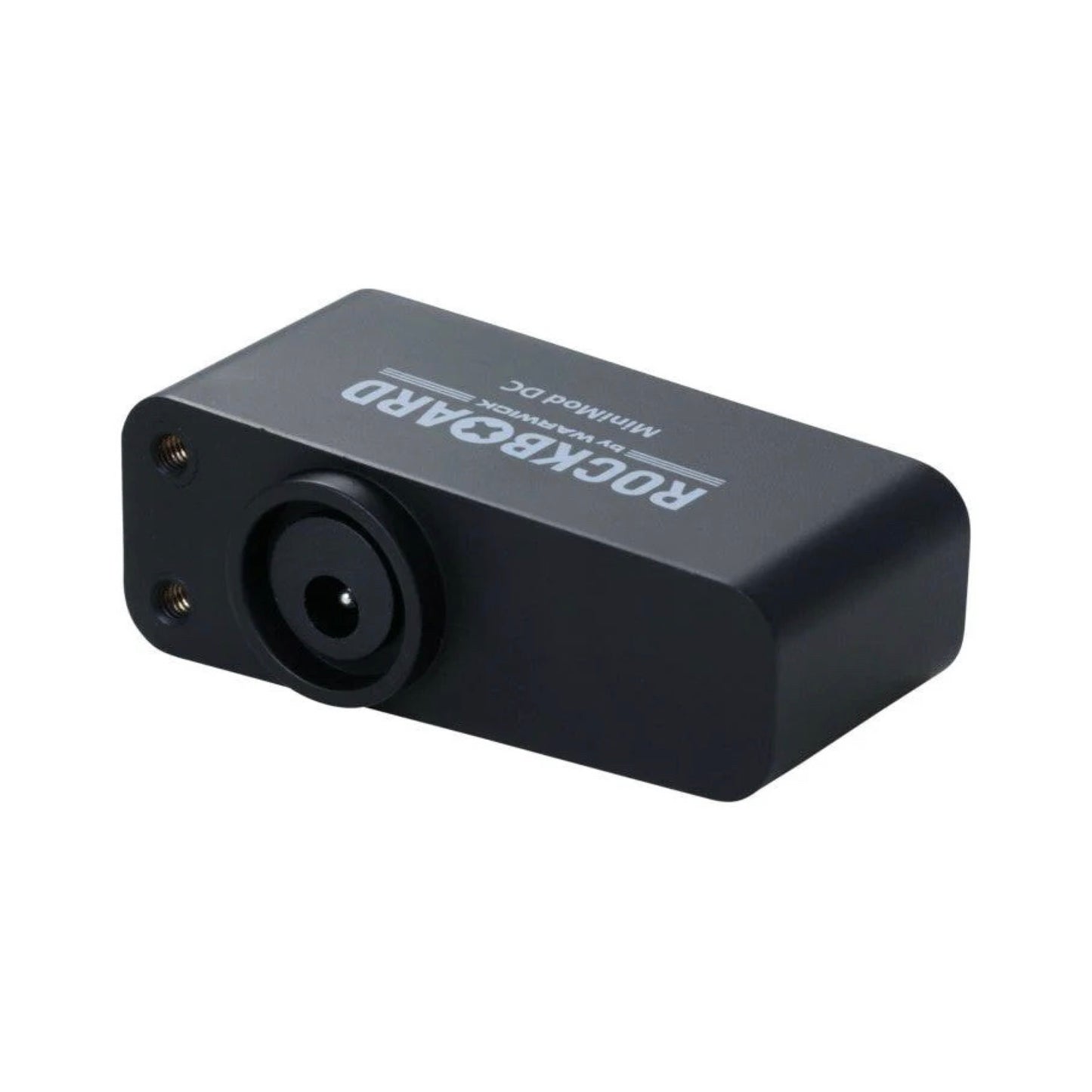

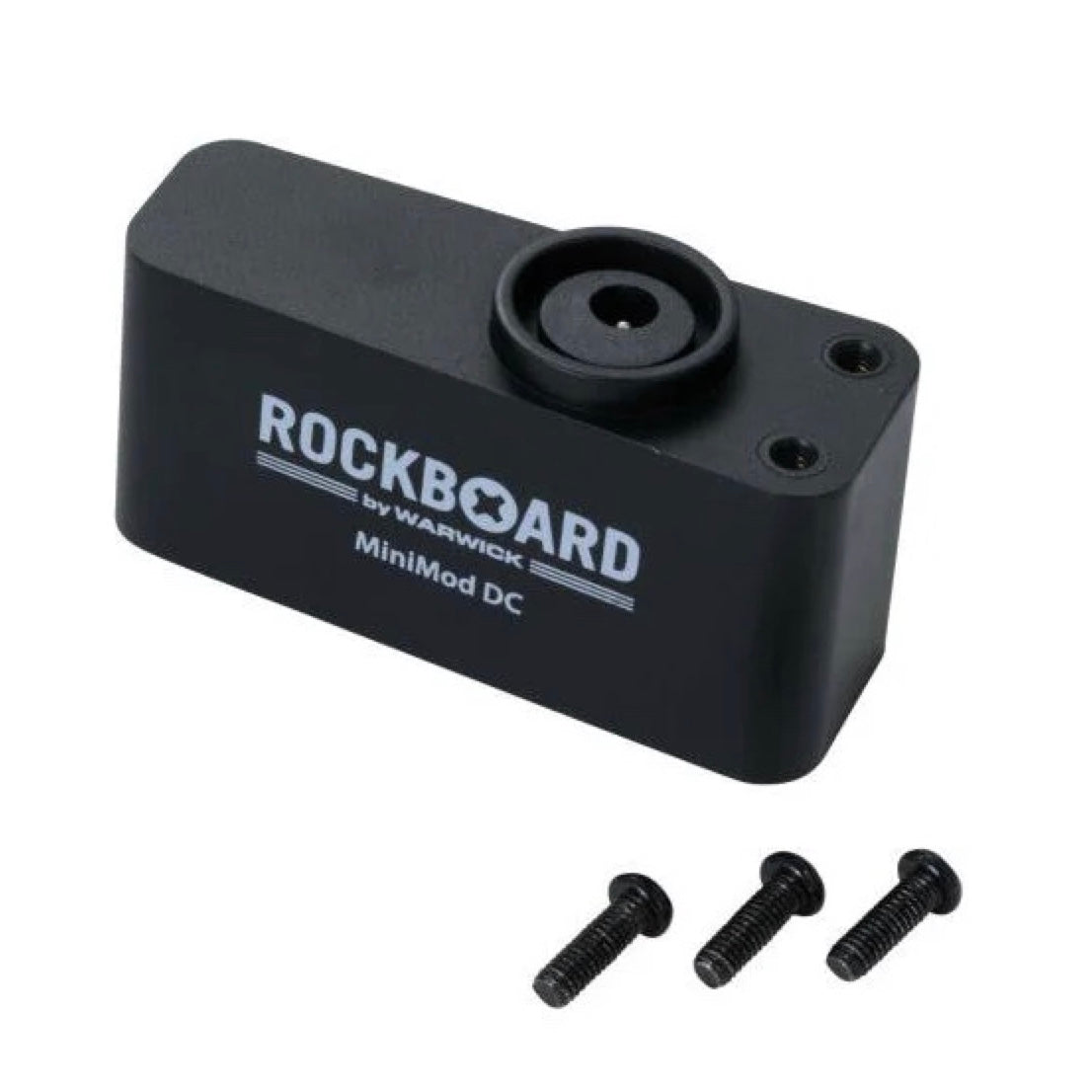

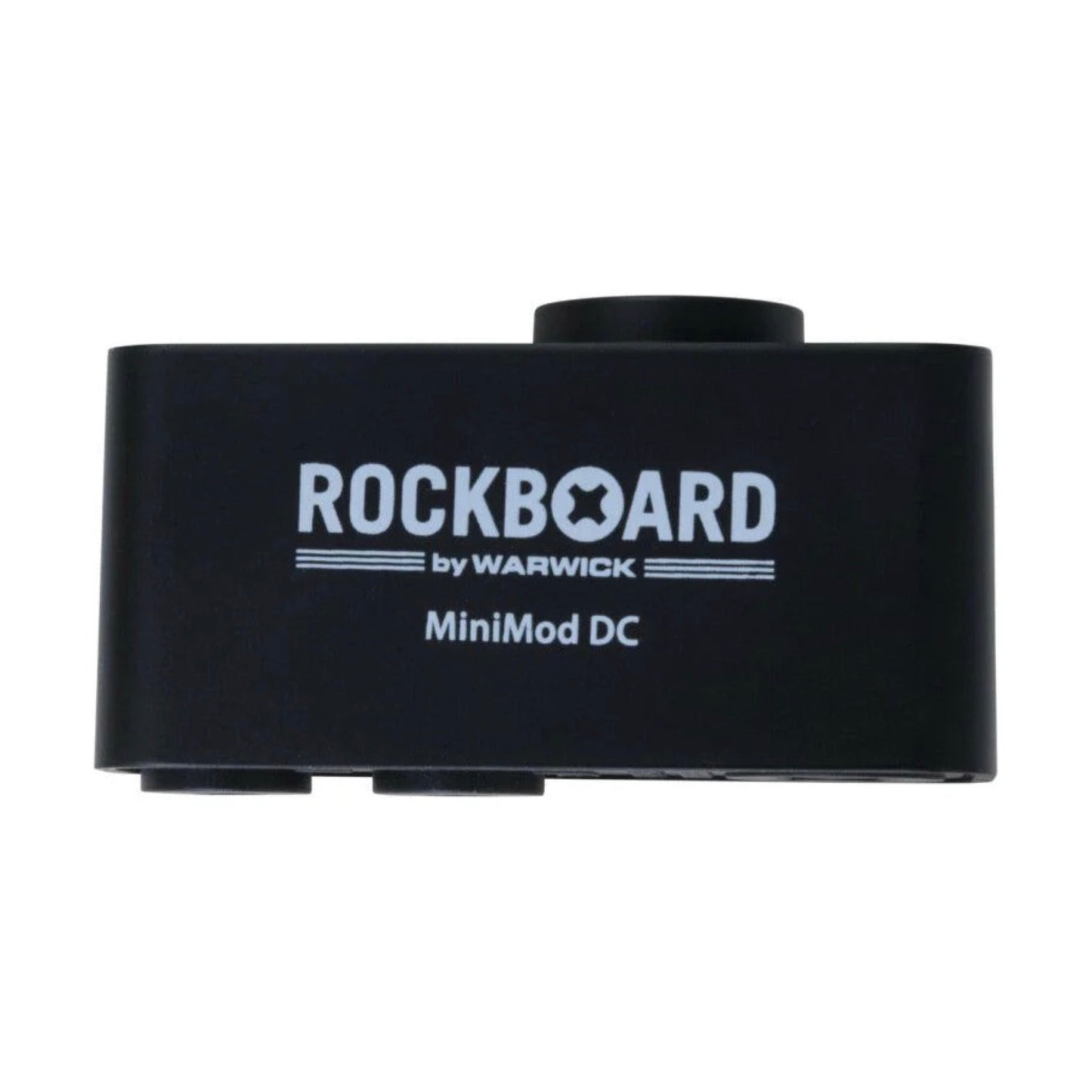

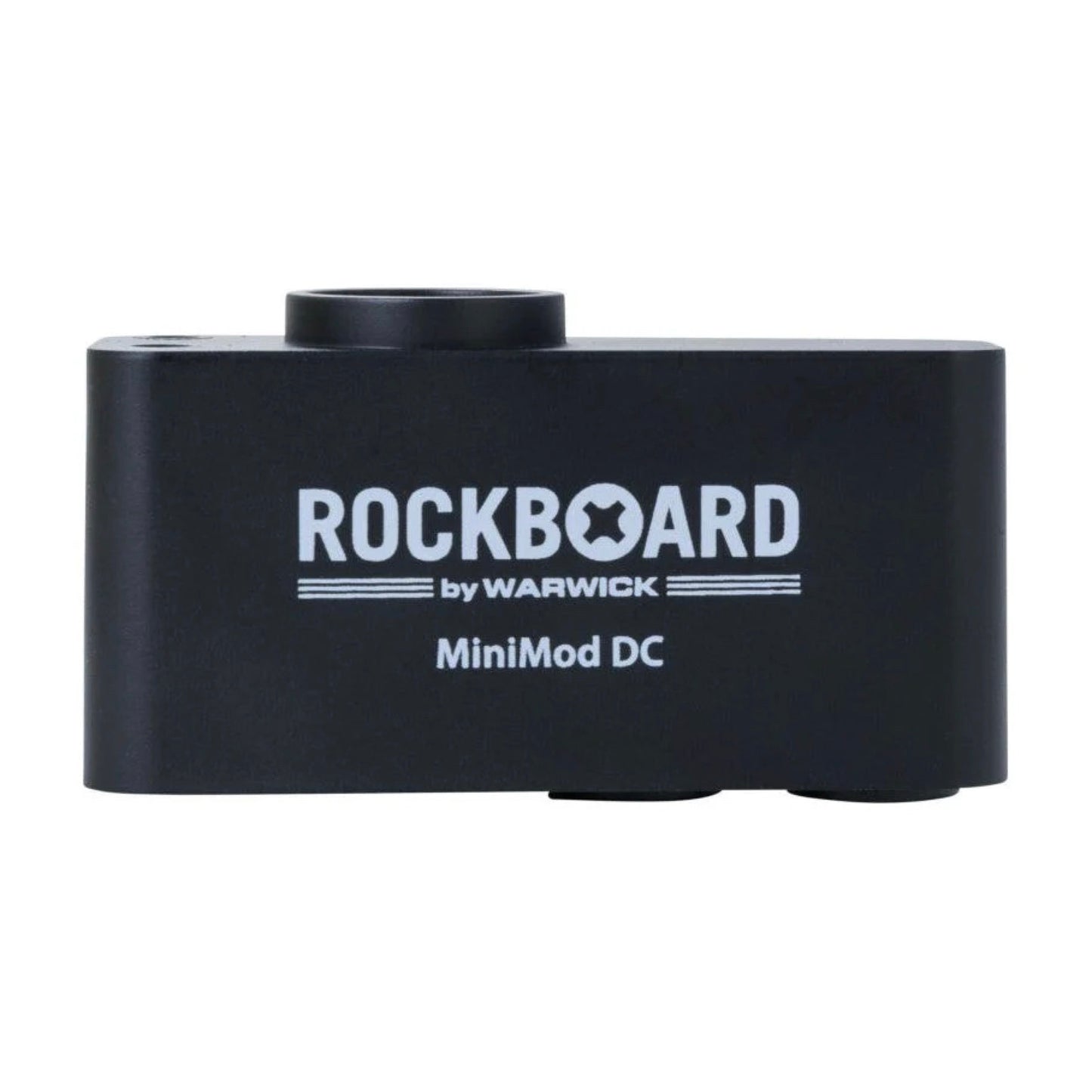

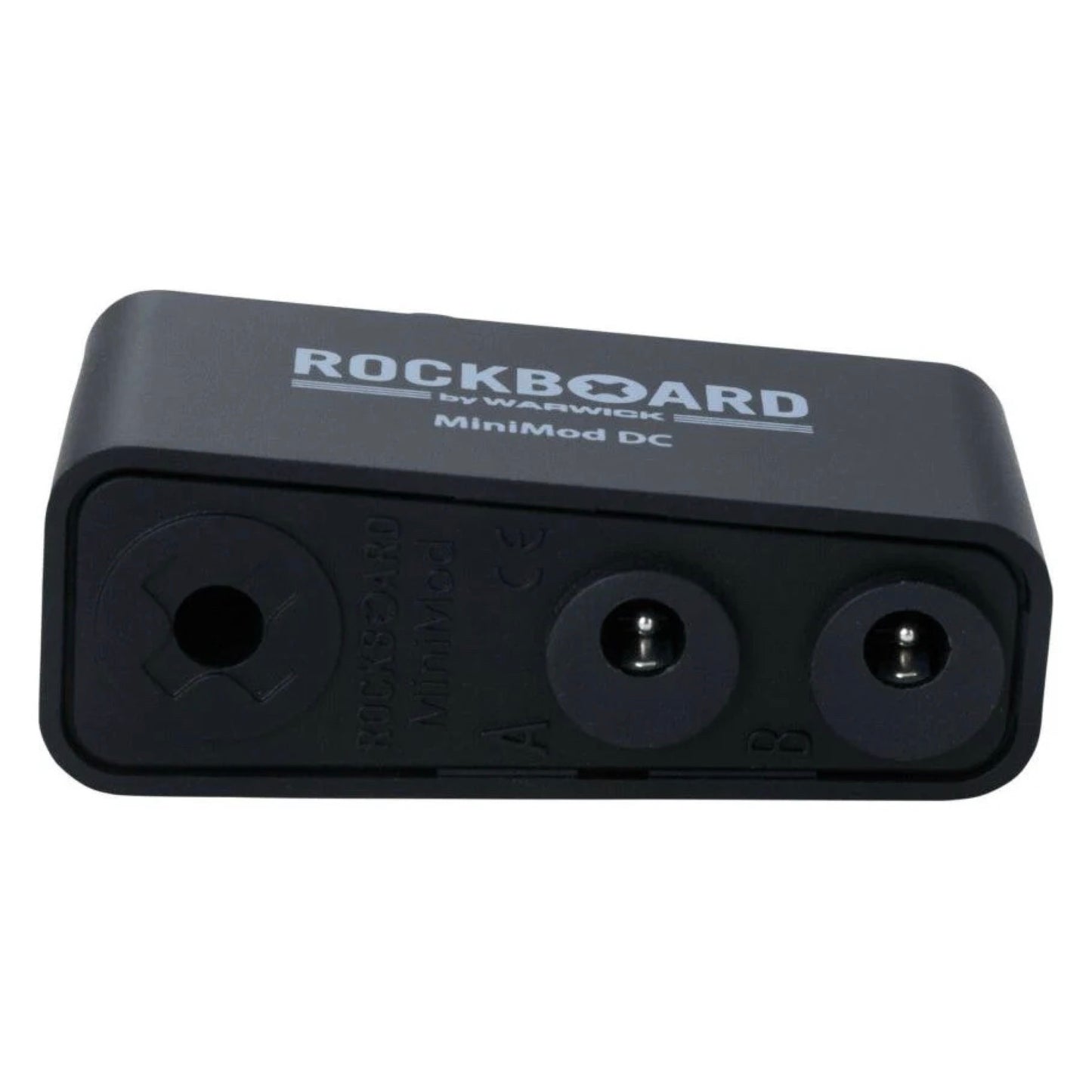

The Mini Mounting MOD DC provides convenient access to your setup‘s multi-power supply without the need for complicated routing of the power supply cable under the pedalboard.
It fits perfectly into the RockBoard® LED Light mounting holes and is a versatile, clean mounting solution on all RockBoard® series pedalboards.

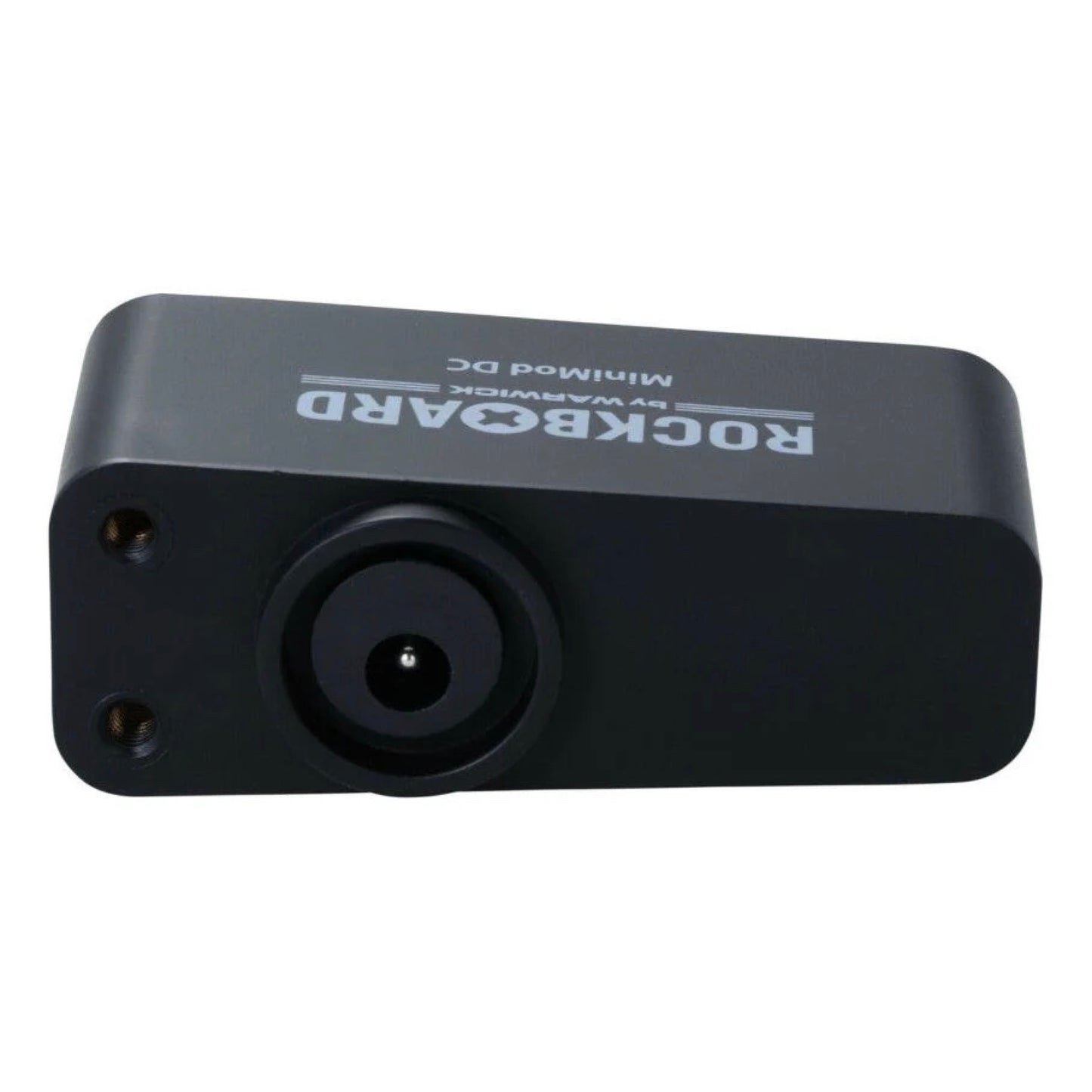

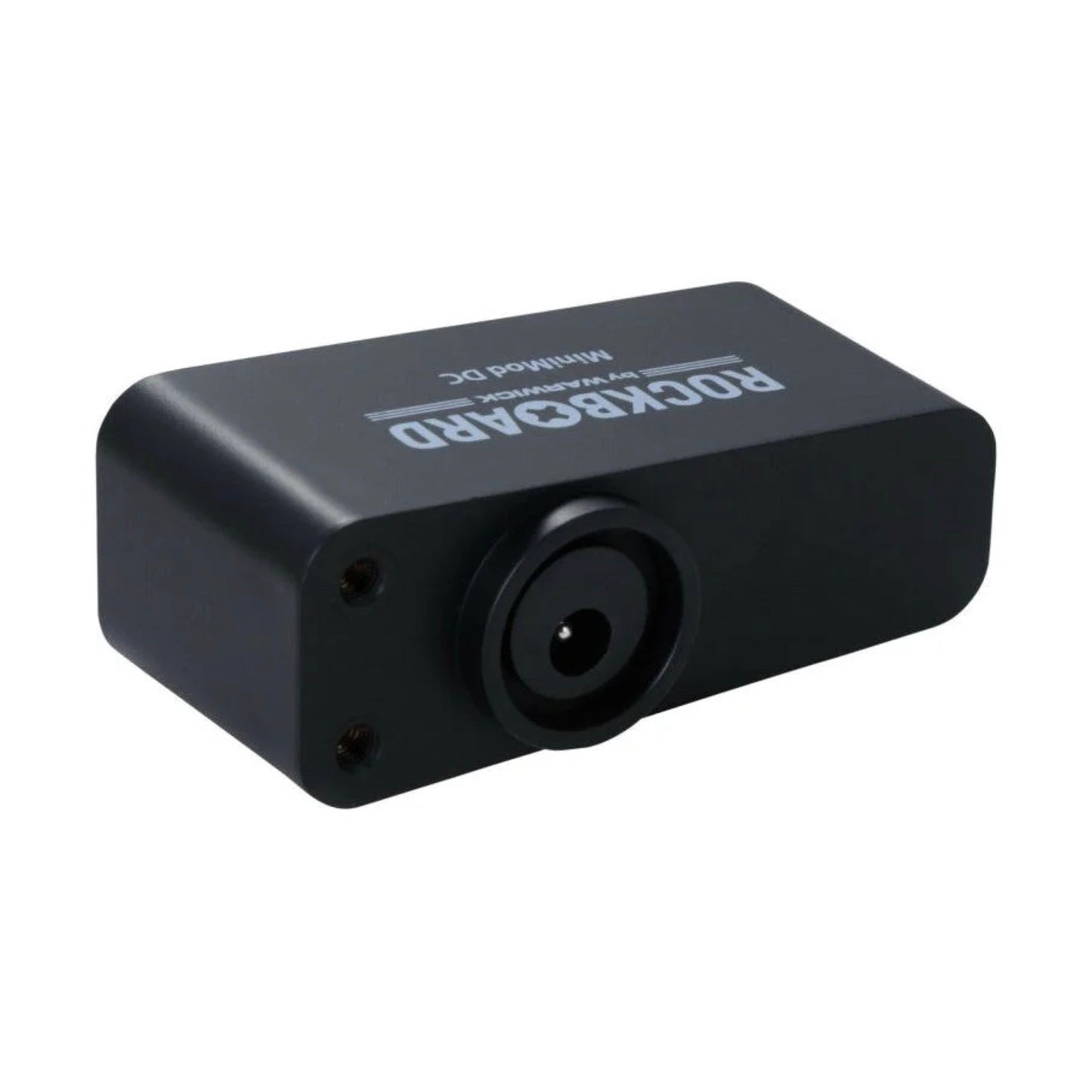

The central access to the power supply is provided by a DC 2.1 x 5.5 mm barrel thru jack.

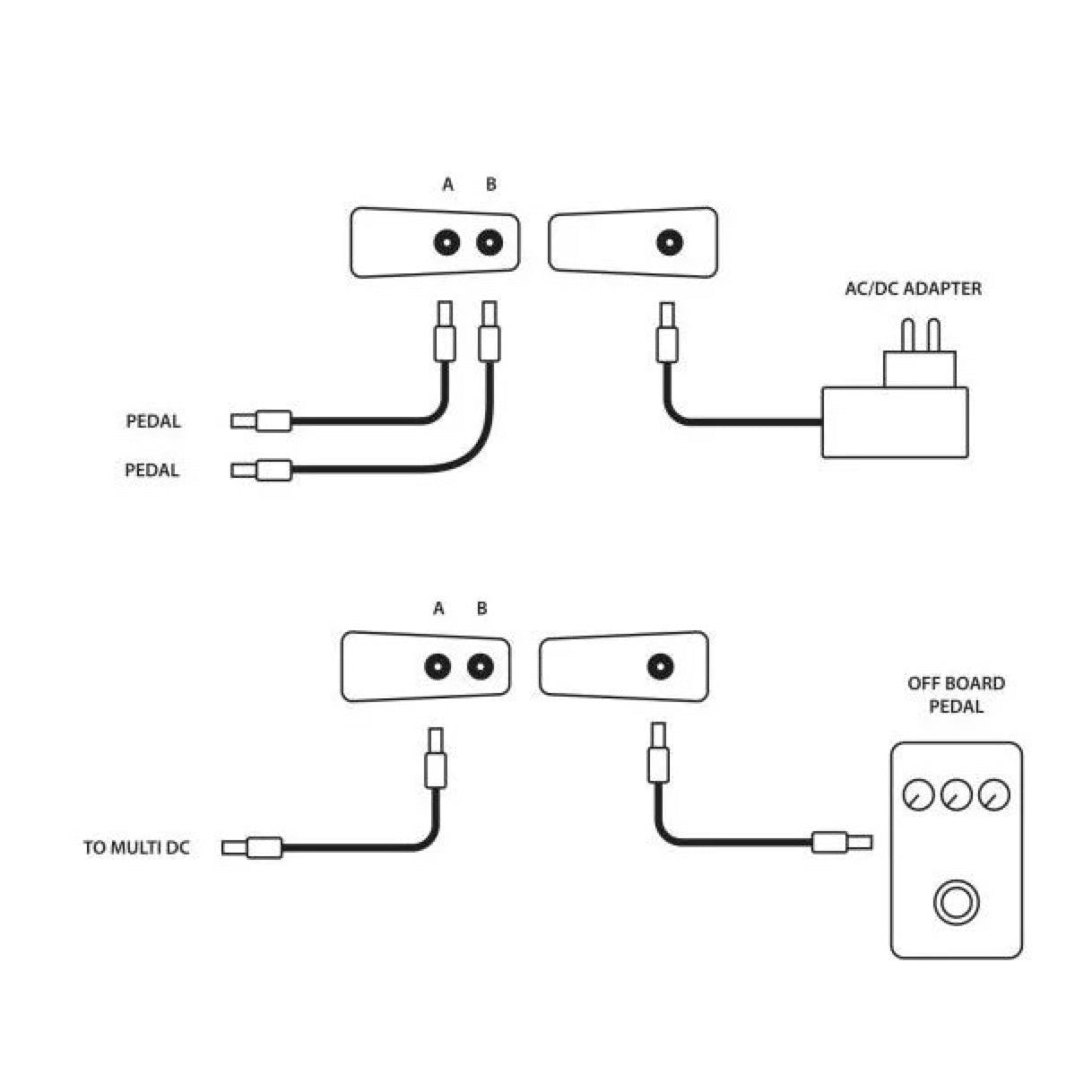

Since the Mini Mounting MOD DC uses through-connections between the inner and outer barrel jacks, it is also possible to supply power to external pedals, such as Wah, in the reverse direction.

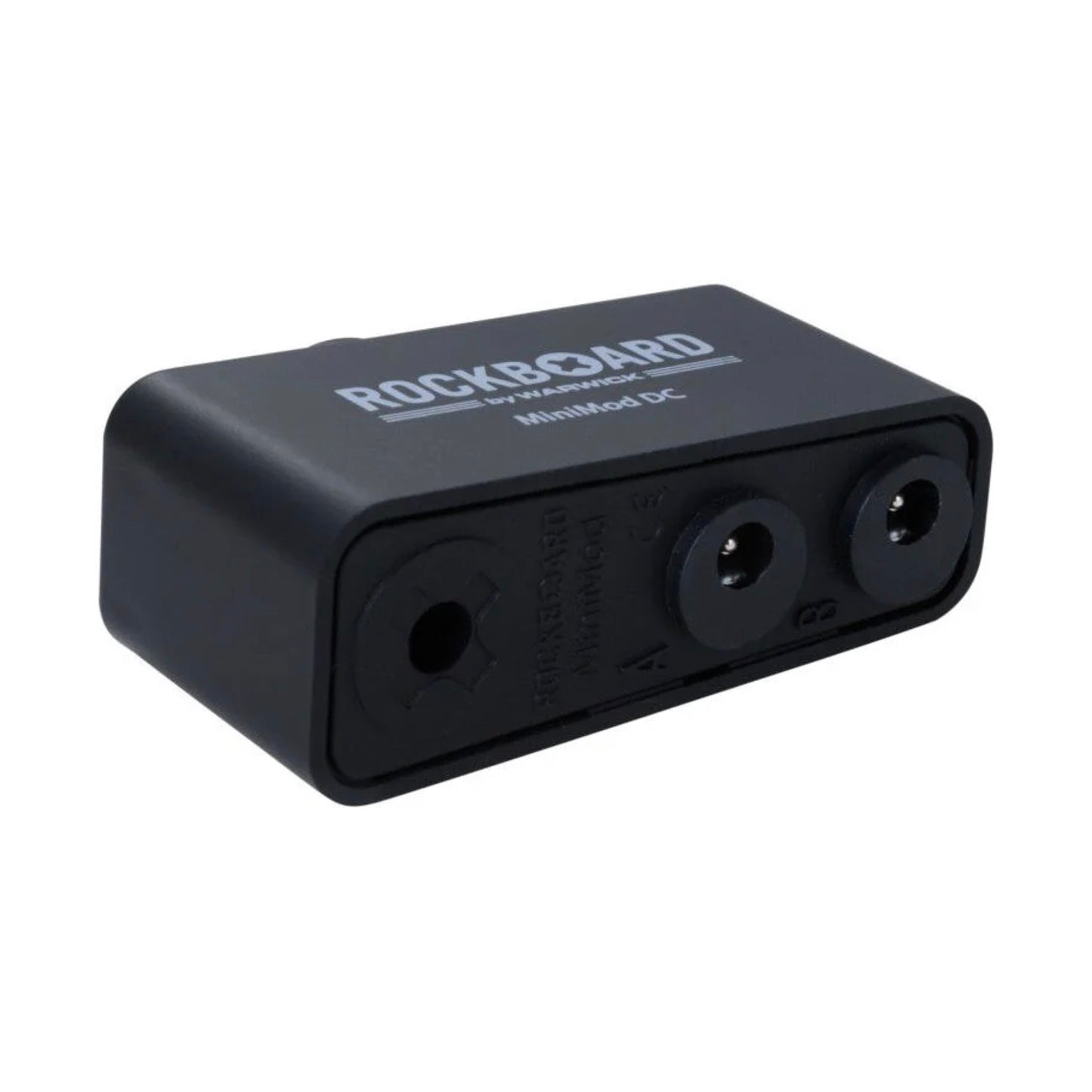

DC power supply cables or "daisy chain“ distributors can be used instead of a multi-power supply to distribute power to the pedals. (Outputs A and B are connected in parallel).
Note: To avoid damage to the individual components, the total current consumption of all devices on the board should not exceed the output current of the connected multi-power supply or of the power adapter supplying the "daisy chain“ connections. Make sure that the voltage and polarity of the external power supply match the requirements of the multi-power supply/pedals.
- Mini MOD DC
- Mounting solution for RockBoard pedalboards and power supplies
- Fits in the mounting hole for the RockBoard LED Light
- 1 x DC 2.1 x 5.5 mm barrel jack to 2 x DC 2.1 x 5.5 mm barrel jack
- No drill holes necessary
- Dimensions: (W x D x H): 25 - 20 x 35 x 70 mm / 63/64"- 25/32" x 1 3/8" x 2 3/4"
