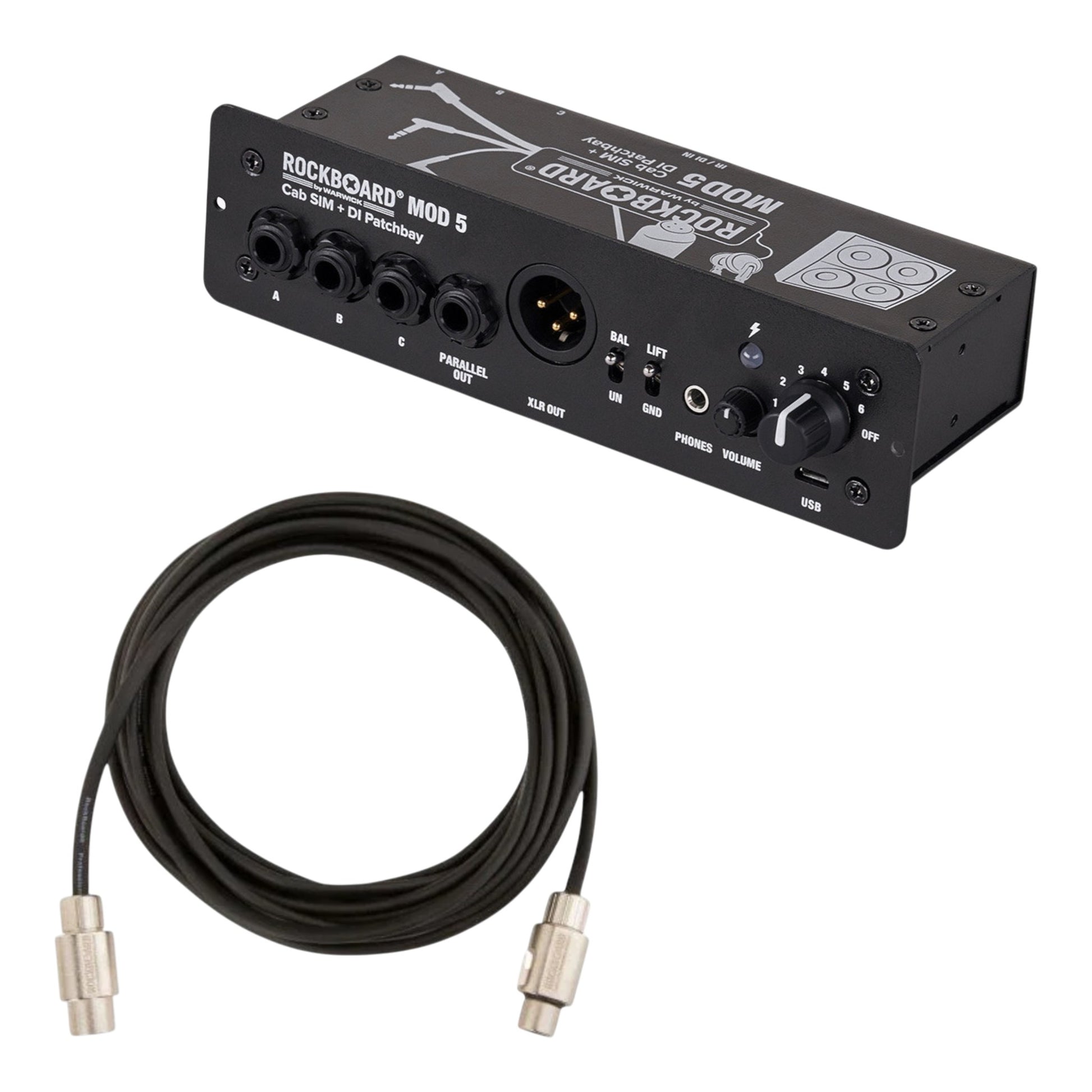

Rockboard Cab Sim to FOH Kit - MOD5 Cab Sim DI Patchbay + Flat XLR Cable 20ft

Send your signal to front of house with a clean, cab-simulated output in one simple connection. This kit pairs the RockBoard MOD 5 Cab Sim + DI Patchbay with a Rockboard 20ft flat XLR cable, giving you everything needed to run direct from your pedalboard to a PA or interface without extra boxes or guesswork.

Includes:

Rockboard MOD5 Cab Sim + DI Patchbay
RockBoard Flat XLR Cable 600cm / 20ft

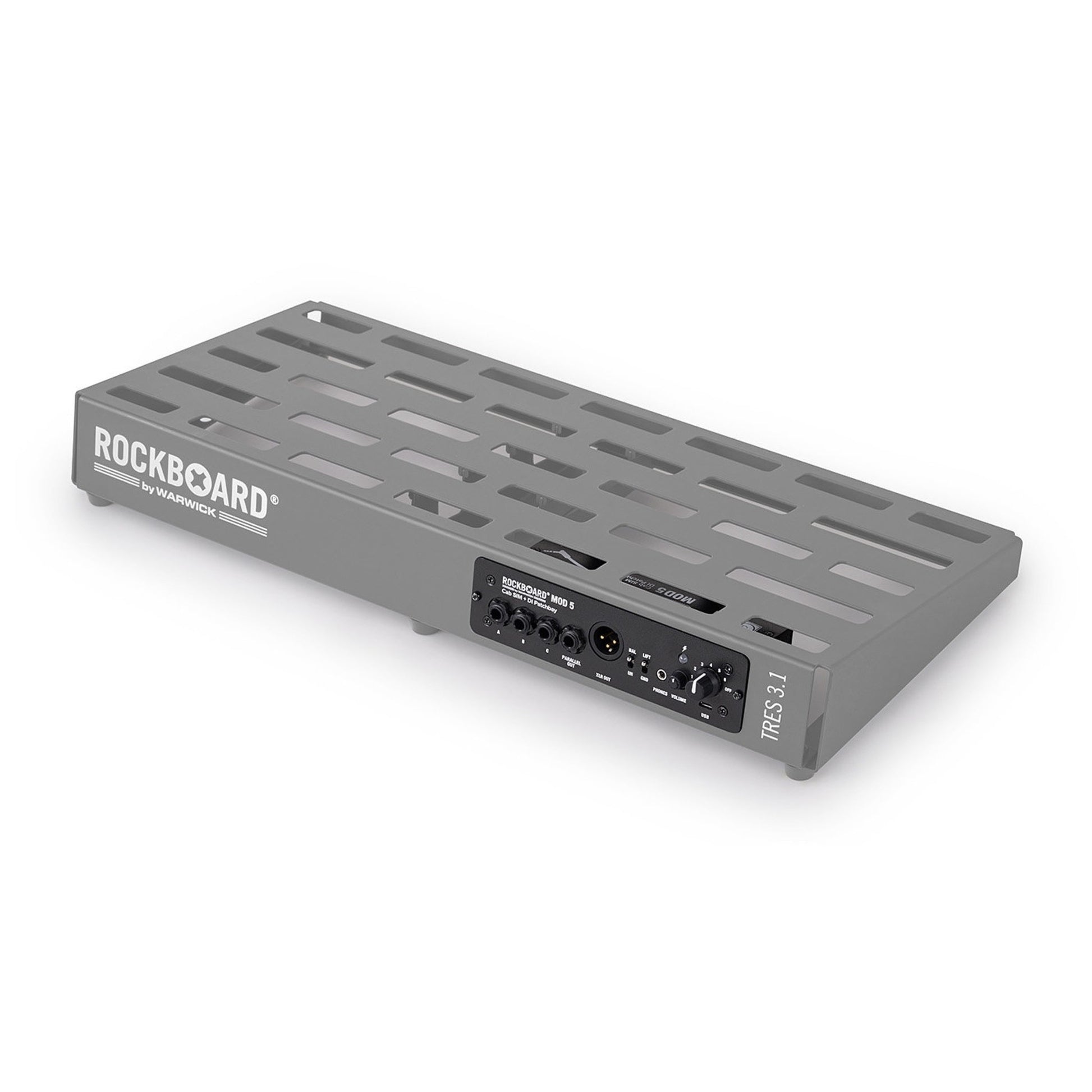

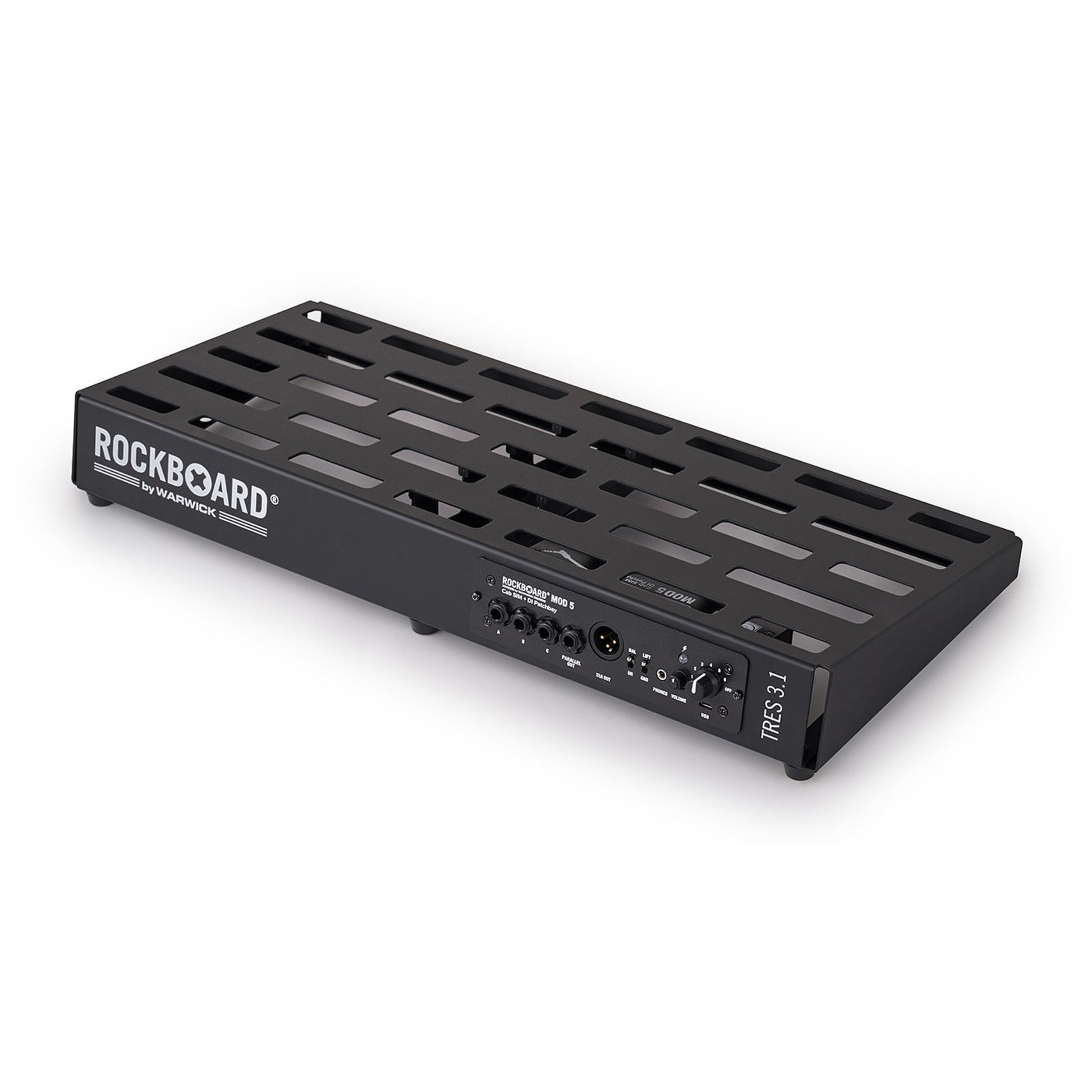

Plug into the space on the back of your compatible Rockboard pedalboard, or remove the faceplace and mount on top of any board for easy routing of cables to the back of your board.

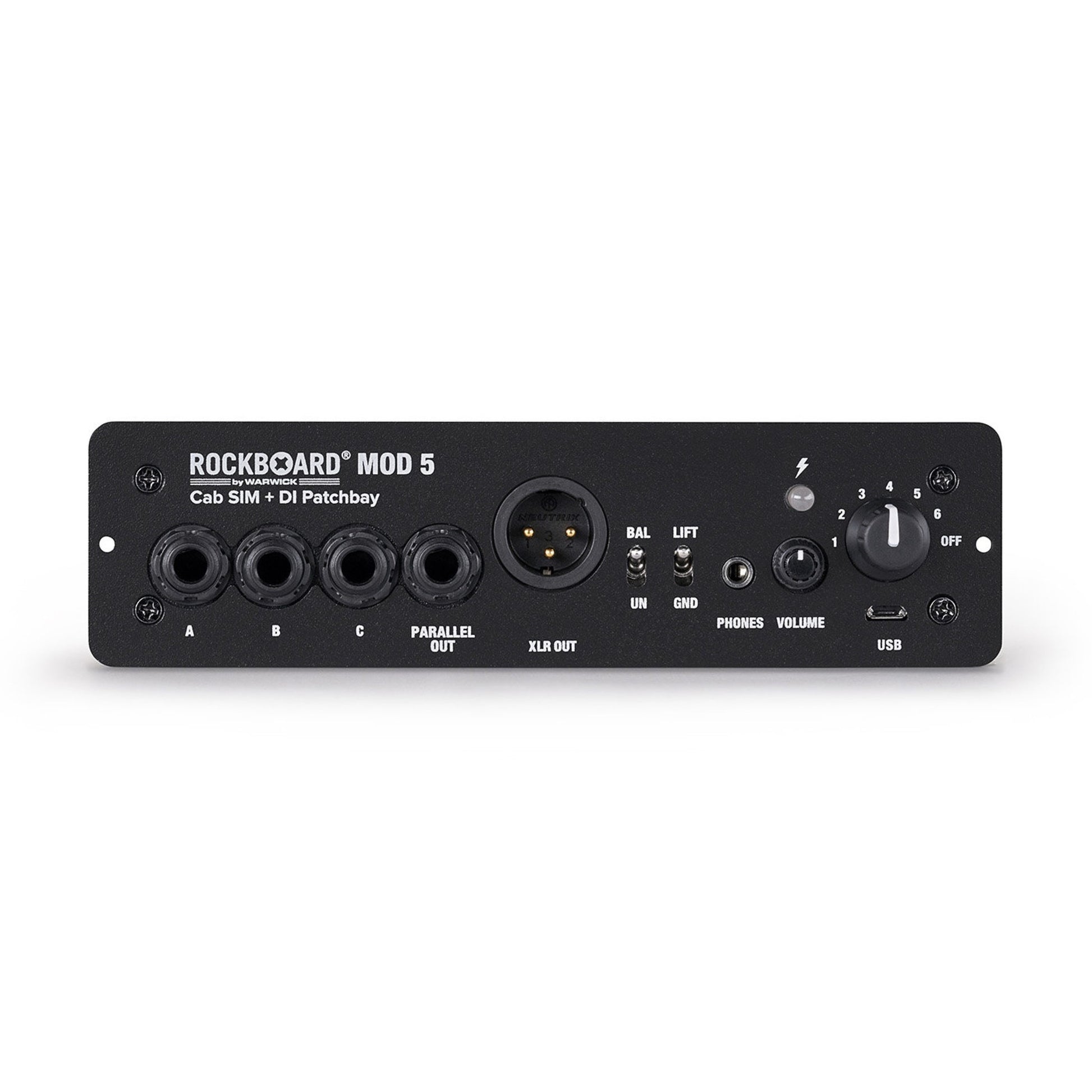

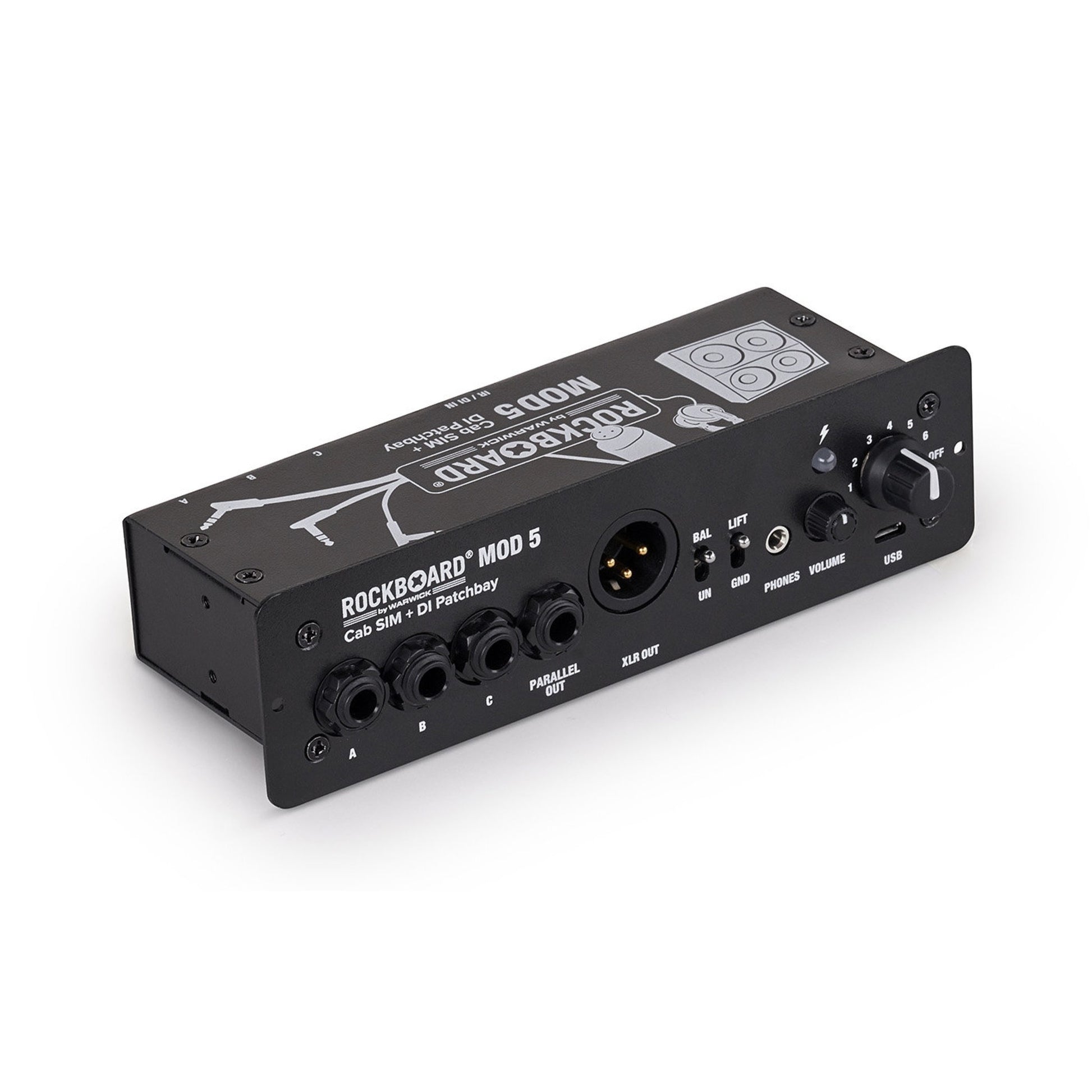

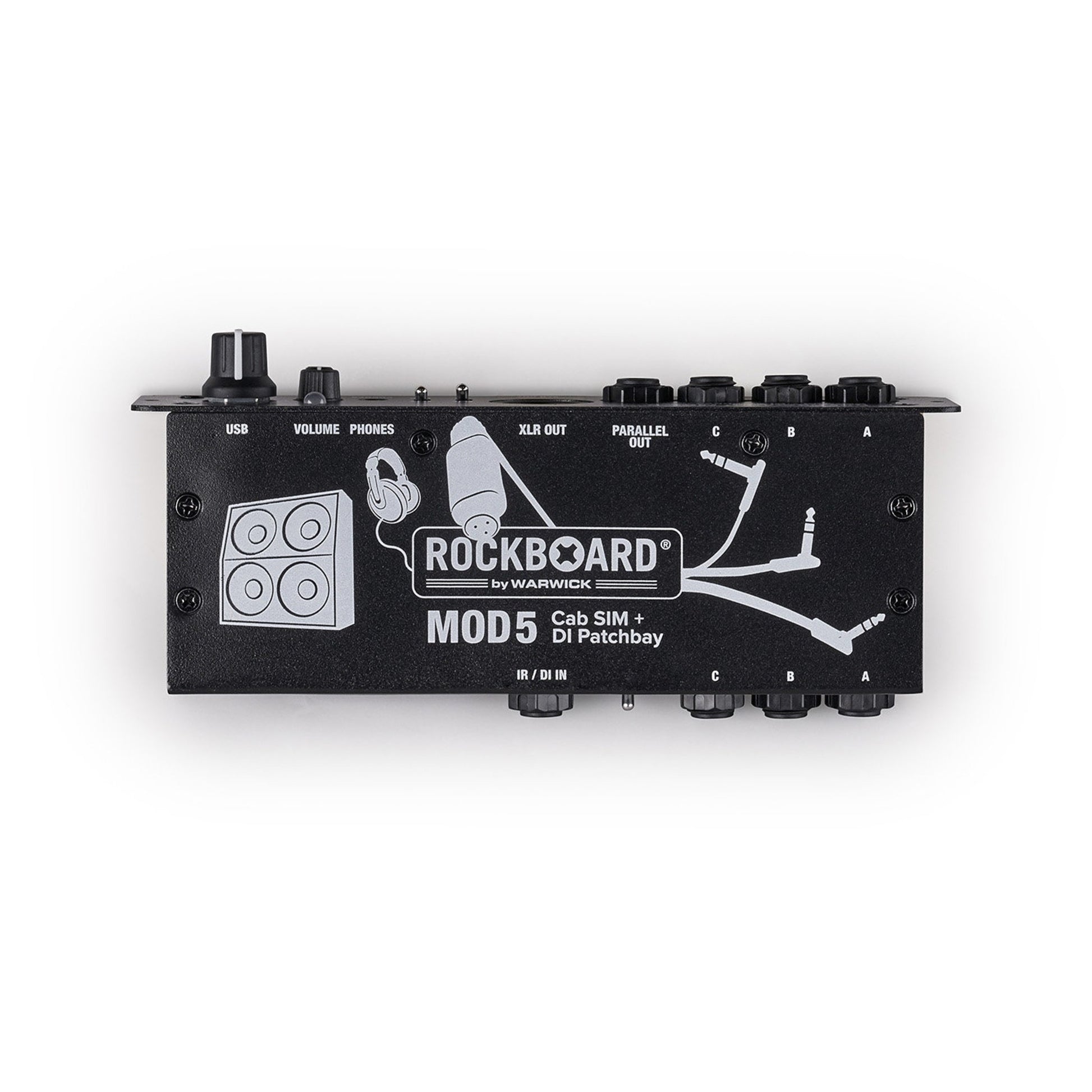

The RockBoard MOD 5 Cab SIM + DI Patchbay offers customizable, IR-based stereo speaker cabinet simulation, an active DI box, as well as a simple solution to organize all the connections to and from your effects setup. Whether you are using a RockBoard¨ or any other brand pedalboard - the MOD 5 will open completely new possibilities. The speaker cab simulation & DI let's you go direct, providing YOUR sound, whatever backline is being provided at the venue you're playing. You want to use your favorite cab? No problem, load an impulse response of its sound into the MOD 5 and you have it with you, wherever you go. The patchbay part is designed to route connections from underneath your pedalboard to its front, in order to give you a central access point to your setup and tidy up your connections. For silent and on the road practicing, the MOD 5 also provides a headphone amplifier with adjustable output volume.

• cabinet simululation & DI patchbay
• IR based speaker cabinet simulation
• 6 integrated IRs selectable
• support of additional Custom IRs (max. 1024 pts.)
• integrated active DI box
• headphone amplifier
• fits MOD slots in RockBoard¨ pedalboards
• compatible with a wide variety of other pedalboards
• acts as central access point to your effects setup
• establishes clean cable paths to and from the pedal board

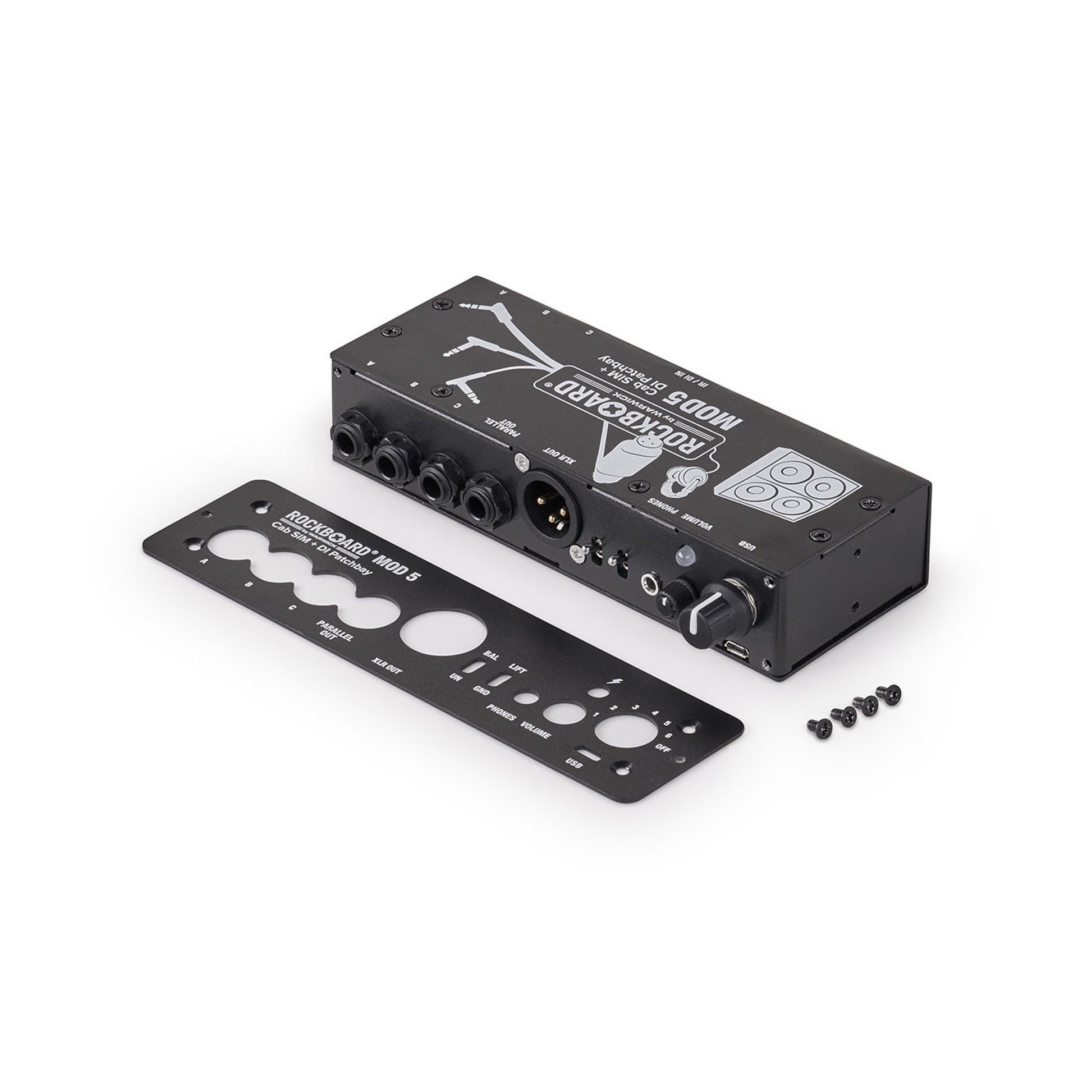

• detachable front plate for mounting on top or underneath pedalboards
• selectable MONO / STEREO input
• selectable UN / BALANCED output
• ground lift switch
• control for Phones Volume
• 3 x 6.3 mm / 1/4" TRS thru
• XLR DI Out
• 6.3 mm / 1/4" Parallel TRS output
• 3.5 mm / 1/8" stereo headphone output with adjustable volume
• micro USB connection for firmware updates and loading custom IRs

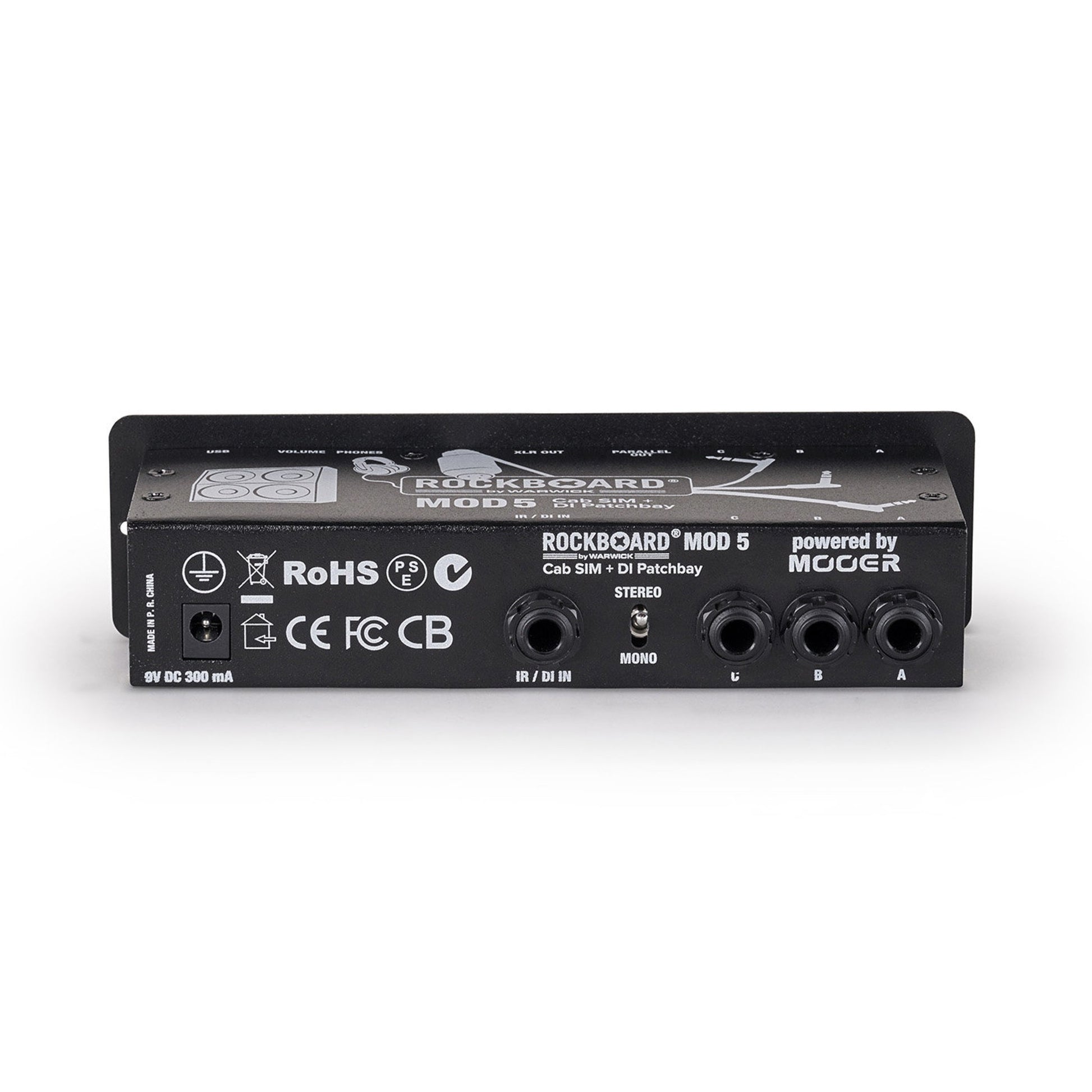

• power supply via optional 9V DC power adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
• current draw 300 mA
• battery operation not supported
• dimensions with front plate (W x D x H) 175 x 85 x 47 mm / 6 7/8" x 3 3/8" x 3 15/16"
• dimensions without front plate (W x D x H) 160 x 85 x 33 mm / 6 5/16" x 3 3/8" x 1 5/16"
• weight 470 g / 1.04 lbs.
• incl. mounting screws, counter nuts and TX wrench

Includes RockBoard Flat XLR Cable 600cm / 20ft

Designed to optimize pedalboard real estate, the RockBoard Flat XLR Cables combine super flat XLR plugs and a space-saving rectangular cable profile. Of course, the Flat XLR Cables can also be used on stage, as a microphone cable, XLR patch cable, or in any possible setup where a standard XLR cable is required. The specially designed super flat XLR plugs fit through the slot grid on top of the RockBoard pedalboards and can be used on compact mixers, patchbays, or anything else to save space and to keep the setup tidy and neat looking.

• flat XLR cable with rectangular profile and super compact XLR plugs
• XLR plugs fit through the slot grid on top of the RockBoard pedalboards
• gold-plated XLR connectors
• flat rectangular cable prevents cable preakage and jams
• 2 flexible copper conductors 20 x 0.12 mm (36 AWG)
• twisted copper shielding 64 x 0.12 mm (36 AWG)
• PE (polyethylene) signal insulation
• plug dimensions (L x W x H): male: 40 x 24 x 18 mm / 1 9/16" x 15/16" x 11/16", female: 43 x 24 x 18 mm / 1 11/16" x 15/16" x 11/16"
• length: 600 cm / 236.22"
