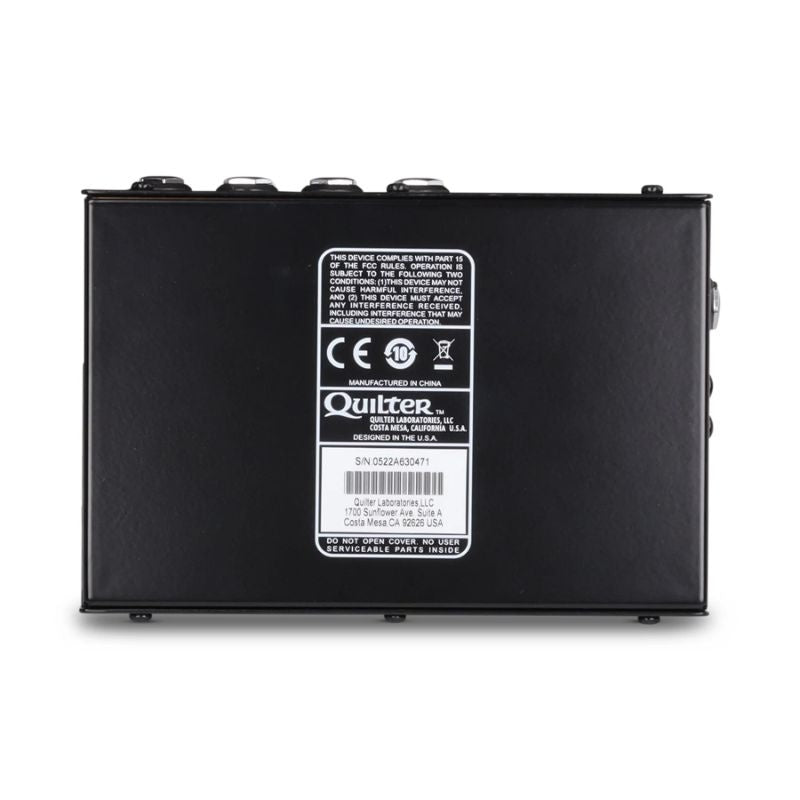

Quilter SuperBlock US - 25W Pedal Amp
Quilter SuperBlock US - 25W Pedal Amp
Out of Stock
Share
This is a brand new item, unused, and in original packaging. Z String Music is an authorized seller of Quilter products.
Product Info from Quilter:
The SuperBlock US packs three vintage amplifiers into the most extensible system you can fit on your pedalboard. Featuring 57 Tweed, 61 Blonde, and 65 Blackface voicings, the SuperBlock US has all of your classic California amp needs covered. For the first time, we are excited to offer all of tonal secrets in a pedal format.
Fitting into a slot about the size of a double width pedal, the SuperBlock fits the power of a 25 watt tube amp right on your pedalboard when powered by our PS-24. For quieter applications you can also power it with a conventional 9v power supply for 1 watt of power. Features include two Cab Sims and an FRFR mode on the XLR Out and headphone out, three classic voices, Limiter, Reverb, and an effects loop.
- Up to 25 watts
- 3 Classic Voices
- 3 band EQ (Bass/Mid/Treble)
- Gain
- Limiter
- Reverb
- Effects Loop
- Cab Sim
- Headphone Out

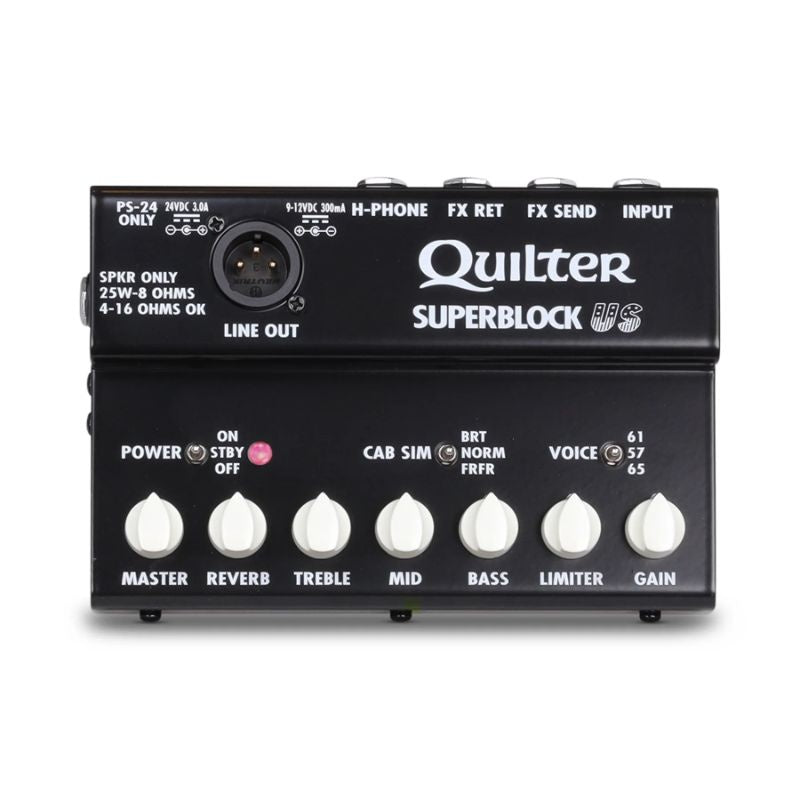

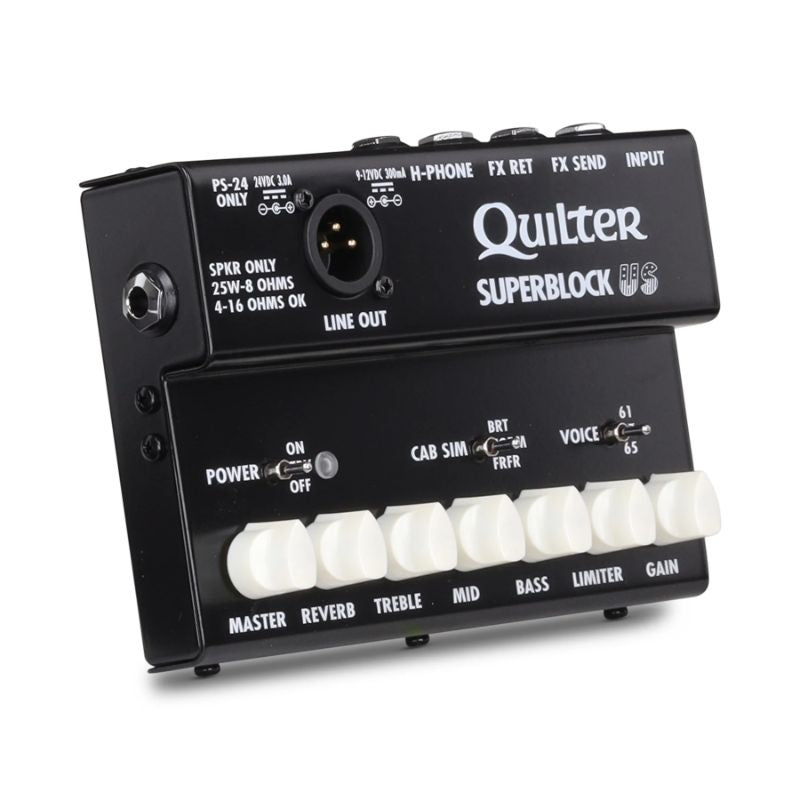

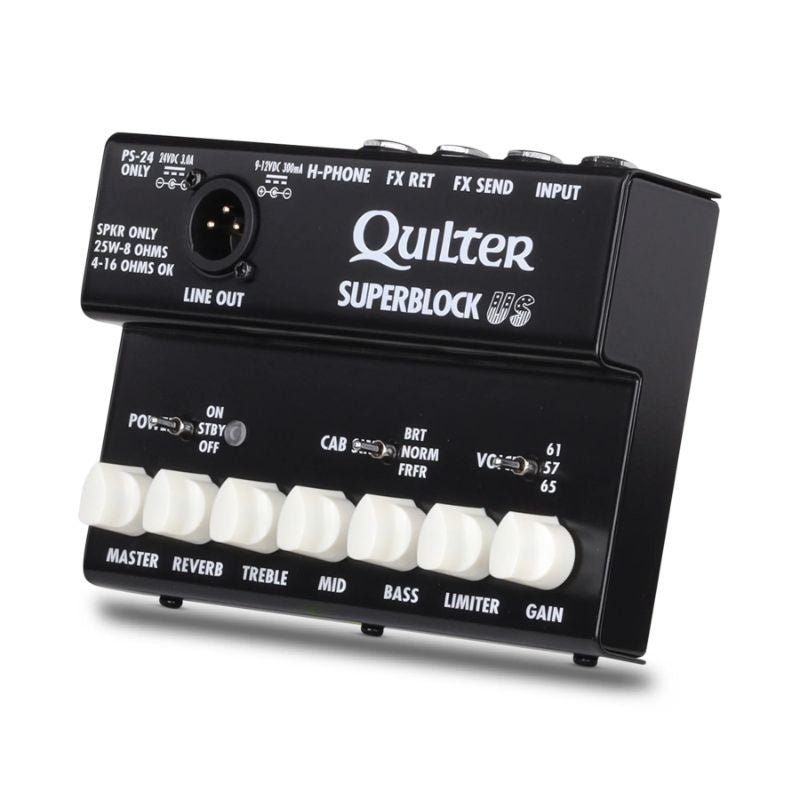

Primary Controls
-
- GAIN adjusts the distortion from clean to overdrive.
- LIMITER reduces gain just enough to prevent overdrive, and then restores gain as the note dies away.
- 3-BAND ACTIVE EQ Boosts and cuts Bass, Mids, and Treble frequencies.
- 3-Voice Switch: 57 Tweed, 61 Blonde and 65 Blackface voiciings.
- Cab Sim Switch
Effects Controls
-

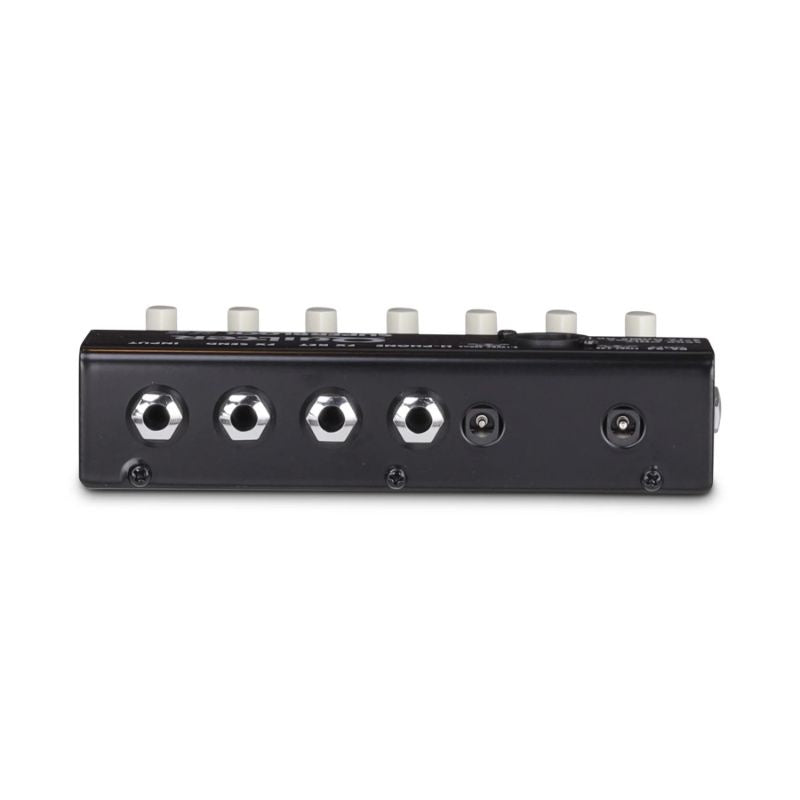

- EFFECTS LOOP send and return jacks.
- REVERB
Volume Controls
-
-
MASTER controls power amp volume as well as LINE OUT volume.
-
MASTER controls power amp volume as well as LINE OUT volume.
Electronic Performance
Input | ¼" mono, 1M input impedance |
Effects Loop | 1V full scale, 1K Send impedance, 47K Return impedance |
Line Out | Balance XLR output |
Power
AC Power Requirement | 24 Volt Power Supply (included) |
Power Requirement for reduced power | 9V - 300ma |
Power Output | 25 Watts 8 ohms (4-16 ohms okay) |
Dimensions
HxWxD | 4.25" x 6.5" x 1.5" ( 10.8cm x 16.5cm x 2.5cm) |
Weight | 1.35 lbs (0.61 kg) |
