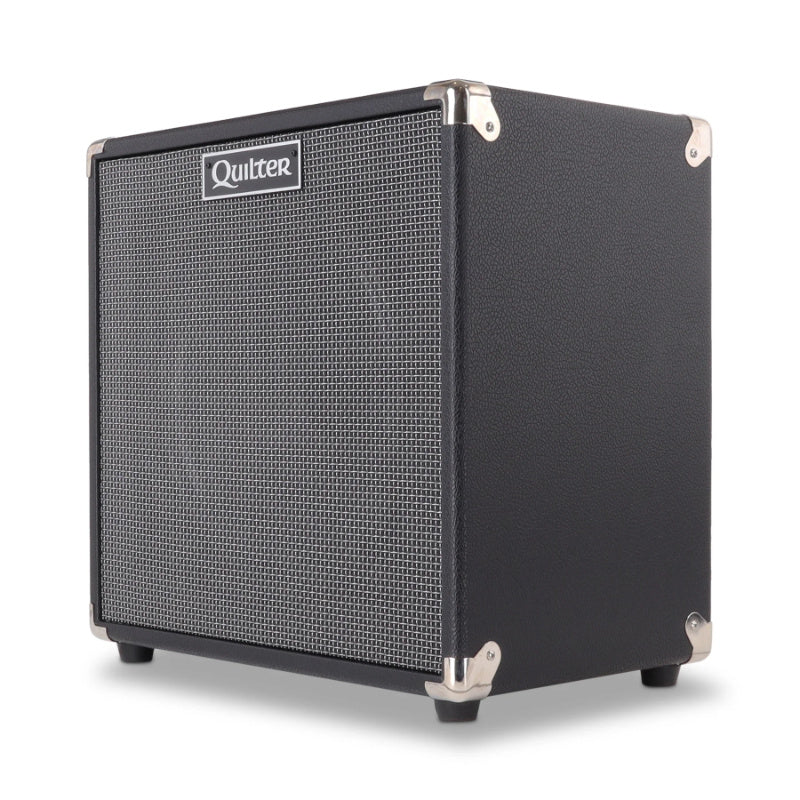

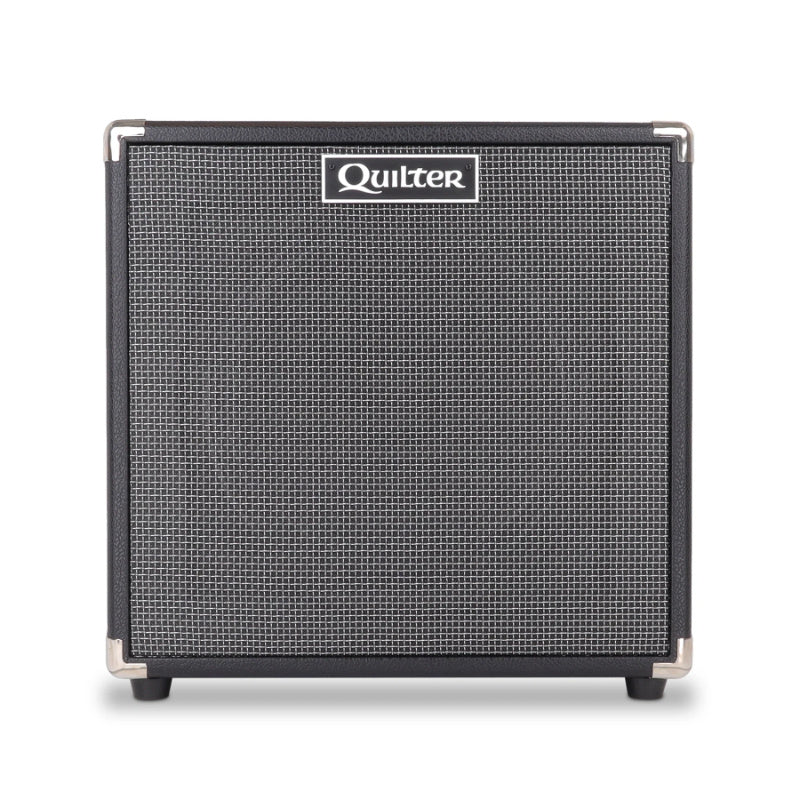

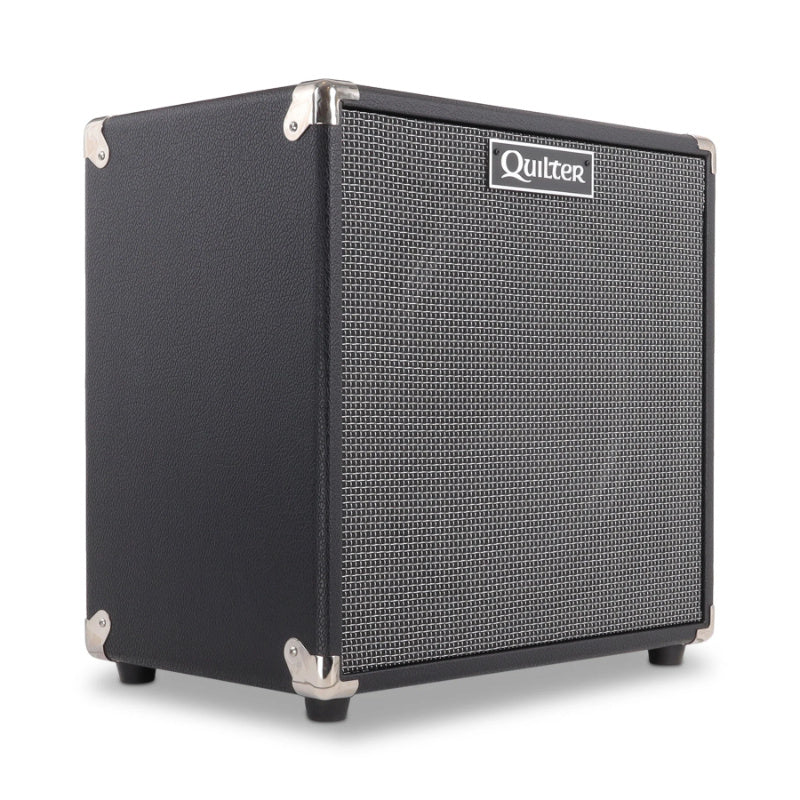

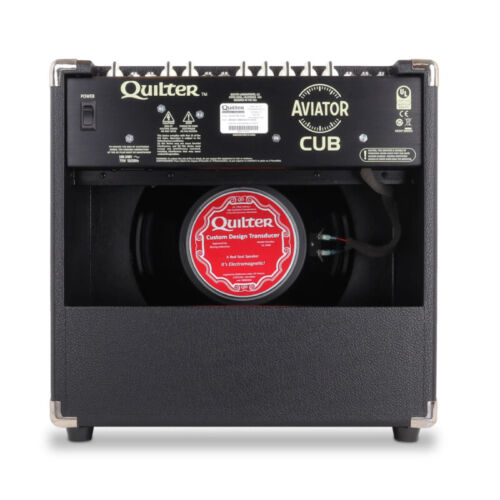

Quilter Aviator Cub US - Combo Guitar Amplifier

This is a brand new item, unused, and in original packaging. Z String Music is an authorized seller of Quilter products.

Product Info from Quilter:

The Aviator Cub represents our most advanced single channel combo amplifier. After careful sourcing and testing, we packed in three historical treasures: a '60 Tweed, a '62 Blonde, and a '65 Blackface. Unleashing them is as easy as plugging into the era you want to play in. Built for speed, the Aviator Cub is as powerful as it is lightweight and economical.

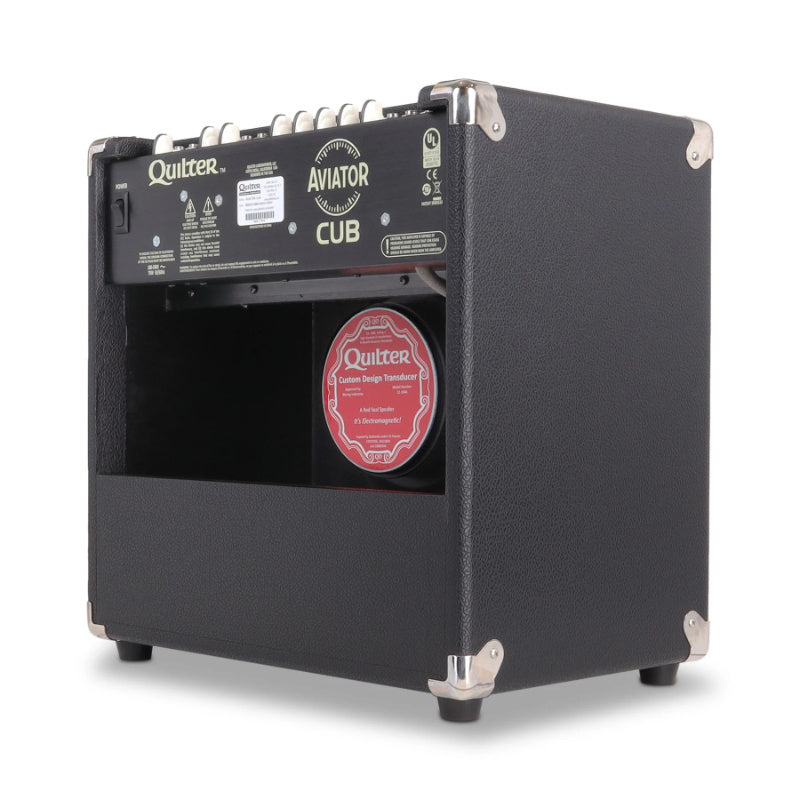

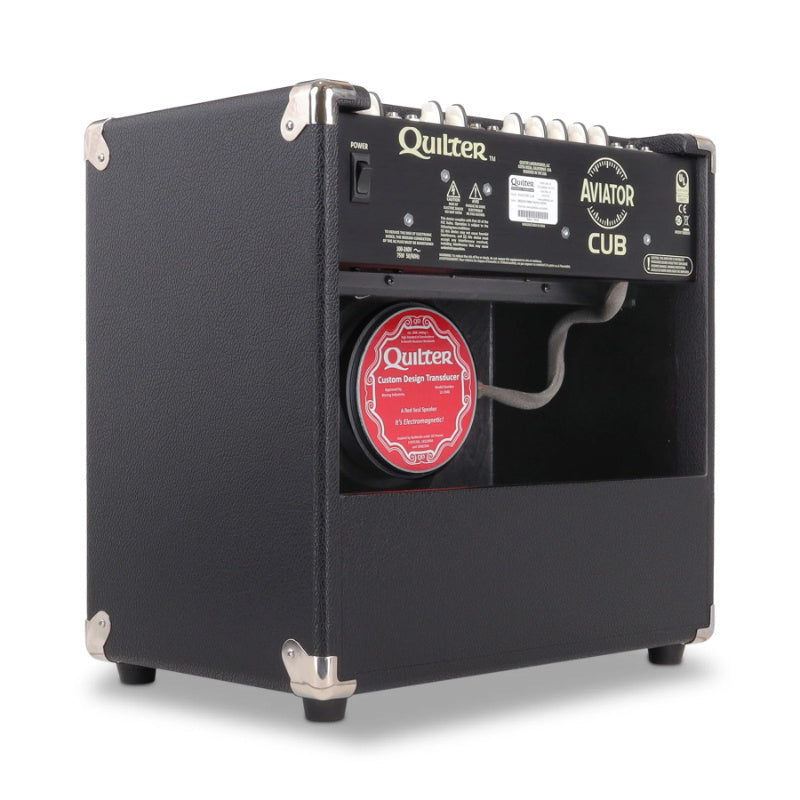

Combining forces with world class speaker manufacturer Eminence, we developed a super sonic 12 inch speaker that delivers all of the charm of classic low powered speakers, but with 50 watt power handling; a speaker that's first in its class. Whether you're after the mid-range power of a Tweed, the throaty yet bell-like Blonde, or the scooped mid-range and silky highs of a Blackface, the Aviator Cub delivers it all without ever breaking a sweat.

 Features:

• Up to 50 watts of tube-like power.
• 3 classic voicings.
• 3 band active EQ (Bass/Mid/Treble)
• Reverb
• Separate SPKR VOL and SIG OUT volumes. When playing on stage with PA reinforcement, work with the sound operator to establish a comfortable SIG OUT level, and then use the SPKR VOL to set your personal speaker level without changing the SIG OUT level.
• Effects Loop

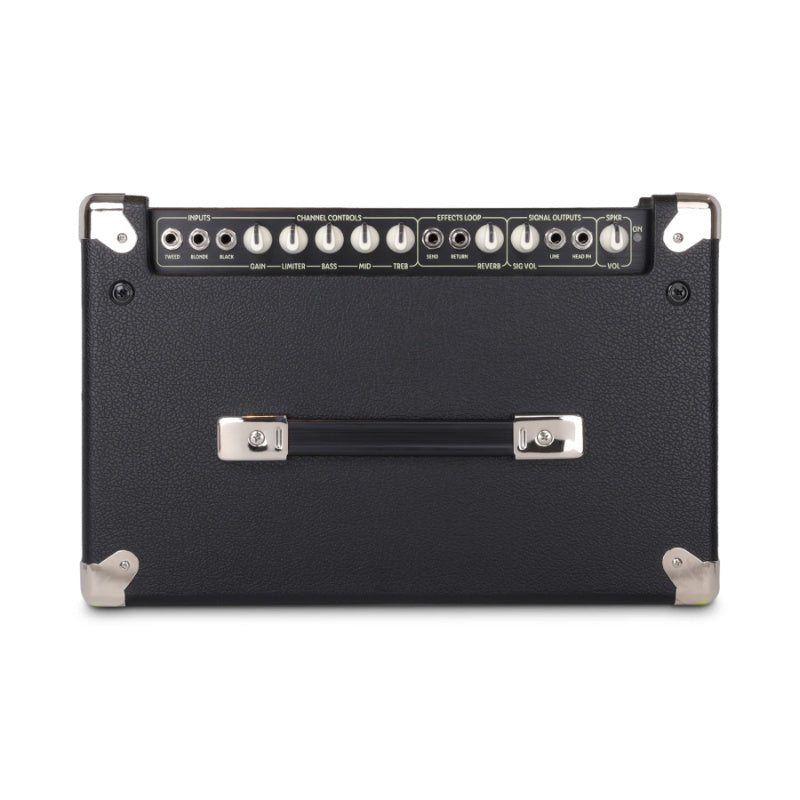

Primary Controls

• • 3 VOICE INPUTS allowing you to choose between 3 classic voices.
  • GAIN adjusts the distortion from clean to high overdrive.
  • LIMITER progressively brings down a "soft ceiling" that can keep overdrive to a "rolling boil" on soft settings, or increase sustain on higher settings.
  • 3-BAND ACTIVE EQ Boosts and cuts Bass, Mids, and Treble frequencies.

Effects Controls

• • EFFECTS LOOP send and return jacks.
  • REVERB



Volume Controls

• • SIG OUT controls the volumes of headphones and Line Out.
  • LINE OUT JACK.
  • HEADPHONE JACK.
  • SPKR VOL adjusts speaker power volume level.

Electronic Performance

Input ¼” Mono, 2 meg impedance, 1.5-5Vpk (depending on EQ) FX Loop ¼” mono, 1V full scale, 1K out, 47K inp (with FX Send lifted) SIG OUT ¼” TRS, balanced line, 40 ohms each leg, 2V full scale HEADPHONE (SIG OUT) ¼” TRS, 40 ohms each channel, 0-3V peak (depending on SIG VOL)

Power

Speaker Out 0-50W (depending on SPKR VOL setting) AC Power 100-240 VAC, 50-60Hz, 100W maximum Speaker Custom Quilter Special Design 12", by Eminence

Combo Dimensions

HxWxD Height: 16.5” (41.9 cm) Width: 16.5” (41.9cm) Depth: 10.8” (27.3cm) Weight 21.55 lbs (9.8kg)

Shipping Dimensions

HxWxD Height: 19.5” (49.5cm) Width: 20.0” (50.8cm) Depth: 14” (35.6cm) Weight 26 lbs (11.8kg) Protective Cover Ballistic Nylon with pouch in rear
