Phil Jones Bass PE-5 5-Band Parametric EQ Preamp DI, Direct Box, Signal Booster

Phil Jones Bass PE-5 5-Band Parametric EQ Preamp DI, Direct Box, Signal Booster

Regular price $249.99 USD
Regular price $0.00 USD Sale price $249.99 USD
Sale Sold Out
Shipping calculated at checkout.

In stock

All items for sale (unless otherwise indicated as Used or Preowned) are brand new. Z String Music is a directly licensed or authorized dealer and all new items carry the full manufacturer's warranty.

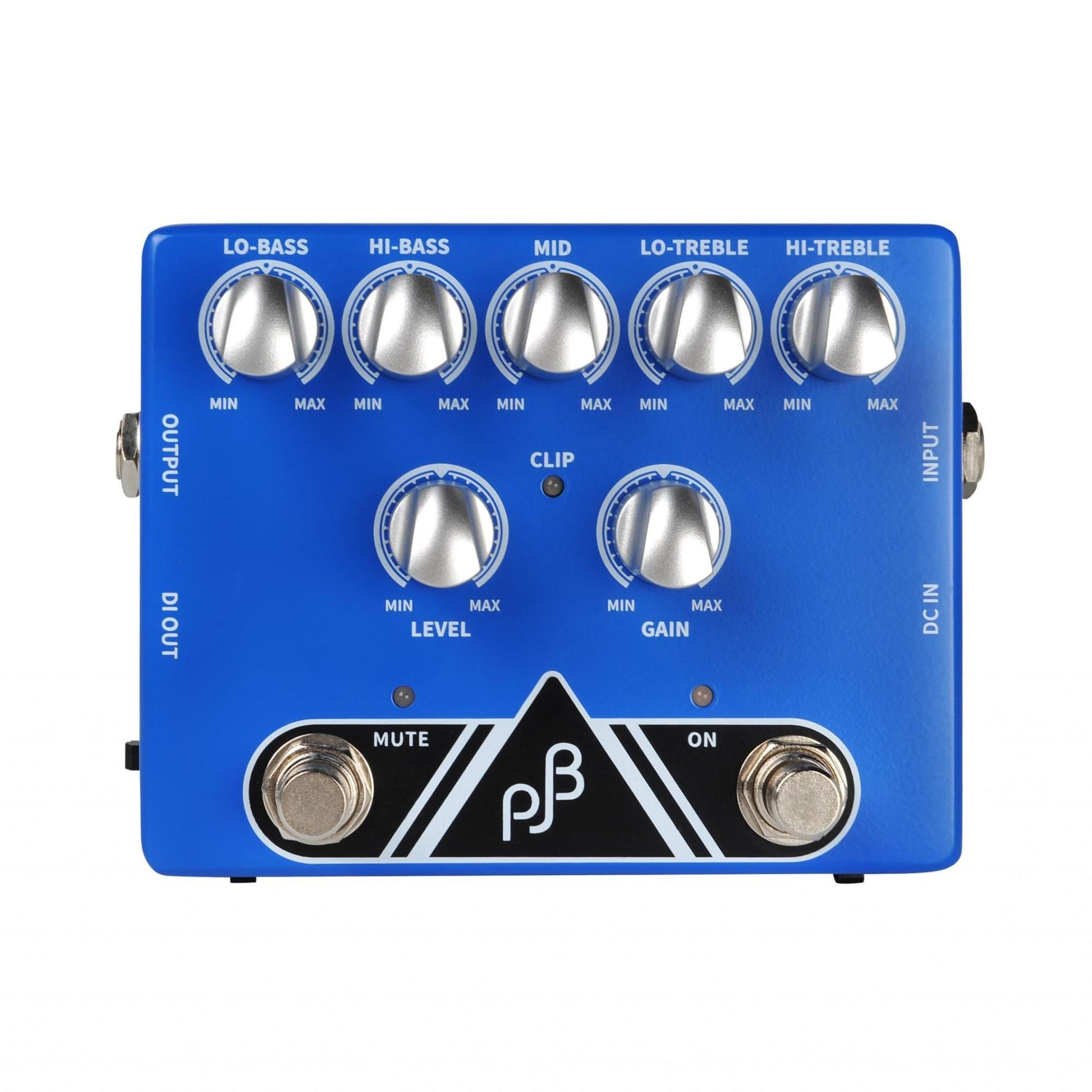

The PE-5 is a pedal designed for bass guitar and upright bass which incorporates a sophisticated 5 band EQ and also offers superior function as a Pre-Amp, Direct Box, and signal booster.

The PE-5 is engineered with a unique switchable input impedance which allows the pedal to match exactly to either a magnetic or piezo pickup. It achieves the full band spectrum for either pickup source. In addition it is a signal booster which compensates for low output pickups and will also provide ample drive for any amplifier. The input level and gain controls are designed to precisely match the pickup output to an amplifier.The line output is strong enough to use directly into a power amplifier or a powered speaker.

The 5-band EQ is a high precision equalizer which means that each boost or cut level is identical to each adjacent band. Plus the Q factor of each band is identical. This makes it far easier for the player to accomplish the tone that they are pursuing. These frequency bands were carefully chosen for the voice of a bass so that the user will be able to adjust the EQ rapidly to get the desired sound.

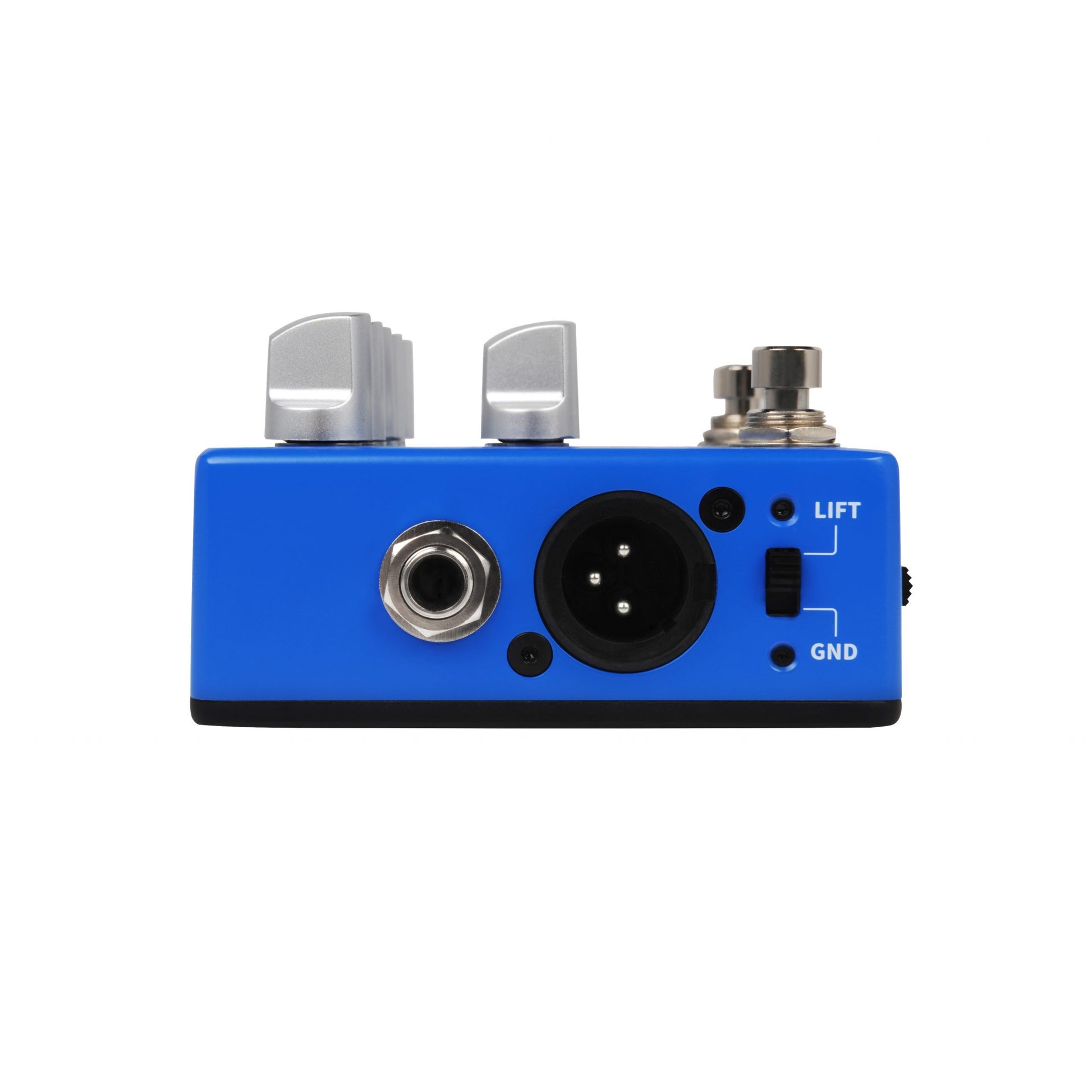

The DI output is of the highest audio quality obtainable providing a match to even the finest recording studio mixing consoles and live sound systems. It has extremely high signal to noise ratio and features a ground lift switch to eliminate the possibility of “Mains Hum”.

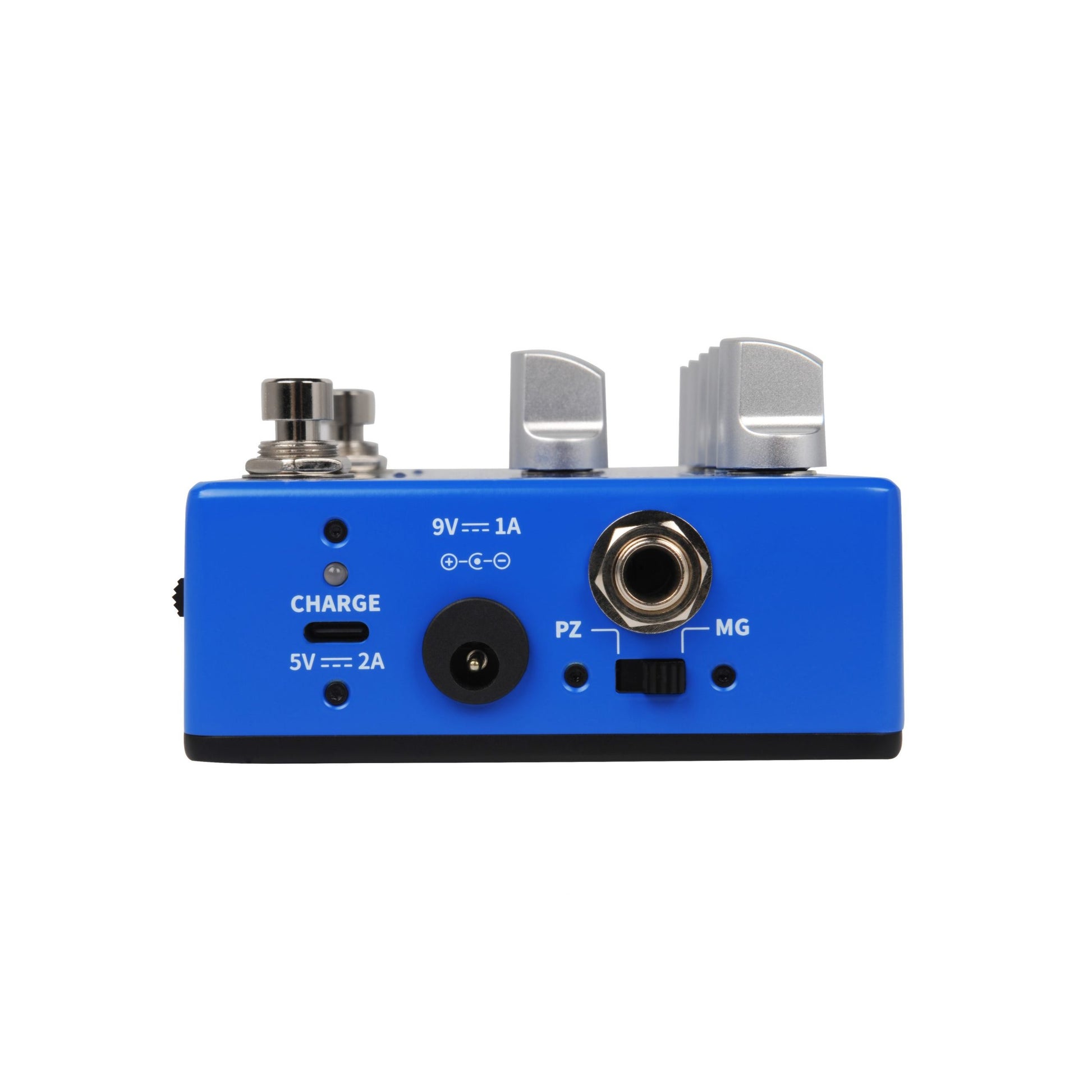

The PE5 can be powered by a standard 9-volt DC pedal adaptor or run on its own internal lithium-ion battery that is charged with a standard cell phone charger via its USB socket.

The two foot switches provide a mute function and a true bypass. The rugged housing is constructed of die cast aluminum alloy made to deliver years of service.


Model PE-5 Pedal
Input

Impedance PieZo=4.7MΩ, MaGnetic =2M Ω,

Maximum input before clipping – 4 Volts (peak to peak

Gain Range From -6 dB to +6 dB
EQ

LO -BASS: Level ±12 dB (Freq. 50Hz)

HI-BASS: Level ±15 dB (Freq. 160 Hz)

MID : Level ±15 dB (Freq. 630KHz)

LO-TREBLE: Level ±15 dB (Freq. 2.5 KHz)

HI-TREBLE: Level ±15 dB (Freq. 12 KHz)

Input Input-B(1/4”Phone)
Outputs

UNBALANCED 1/4” JACK

BALANCED DI OUT with transformer (GND switch)

Controls GAIN / LEVEL
Switches

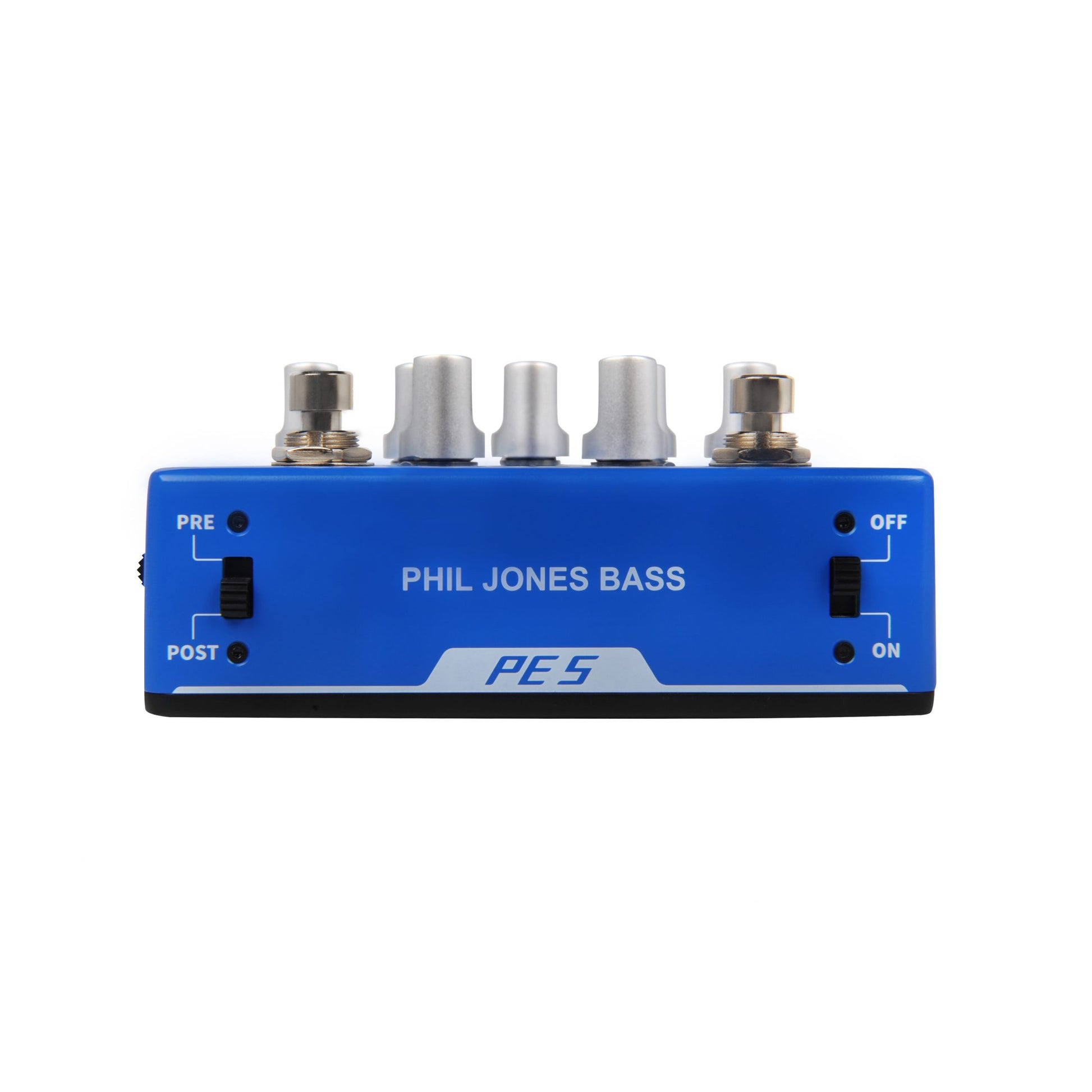

Bypass | MUTE | ON/OFF | PRE/POST

Power Requirement 9VDC : 1A from separate 9volt 1 amp (minimum) adaptor
Dimension
(W x D x H)
120 x 95 x 37 mm
Weight 450 grams
