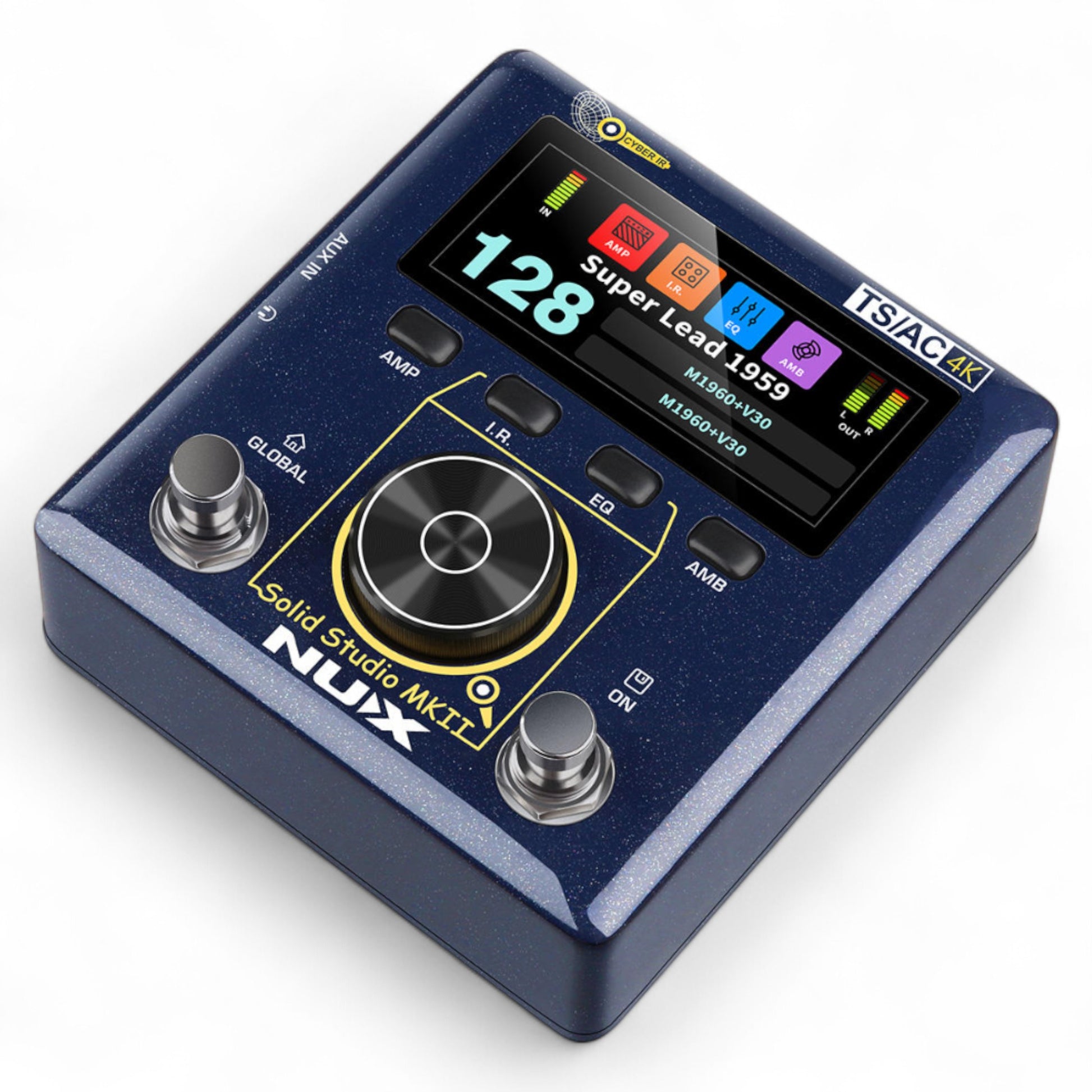

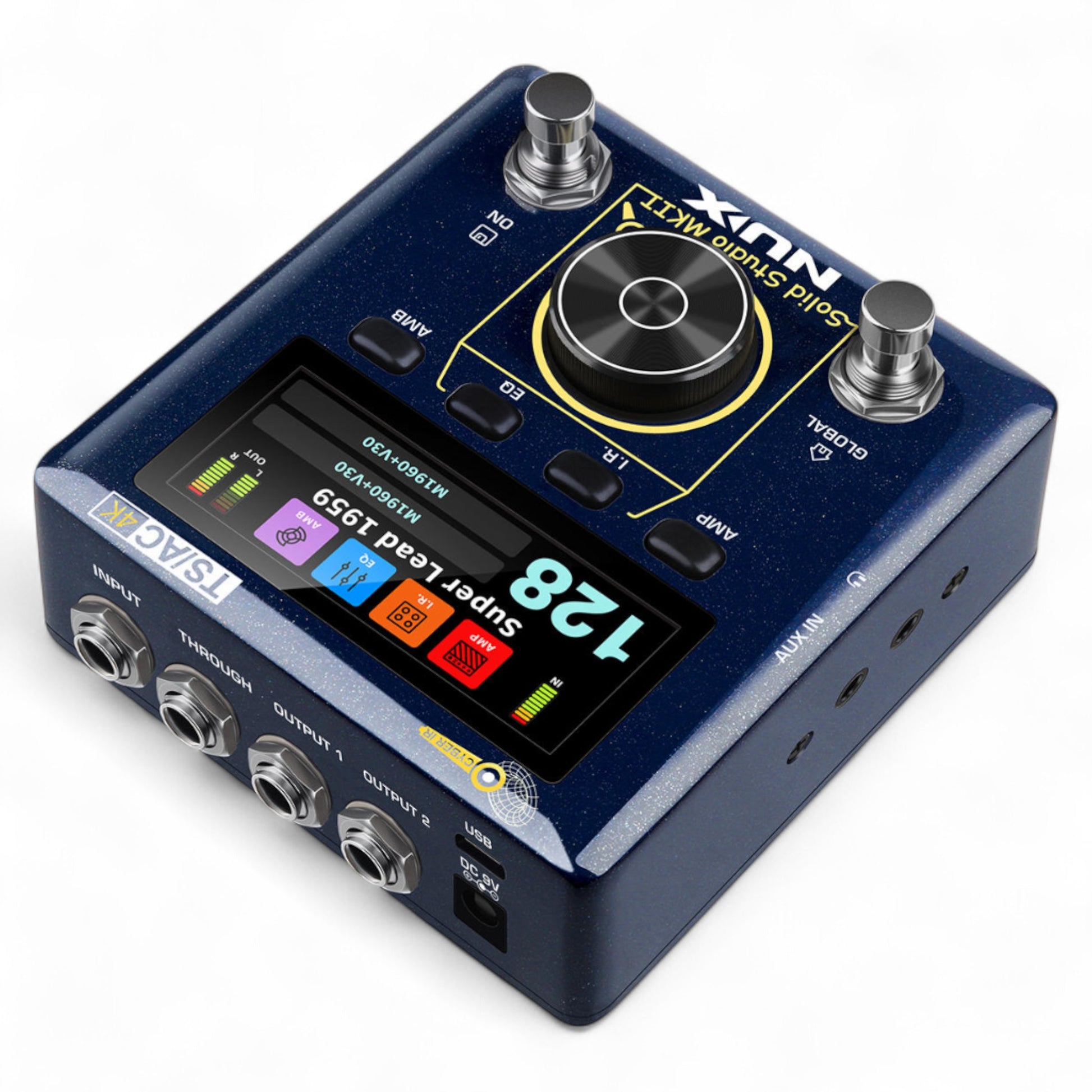

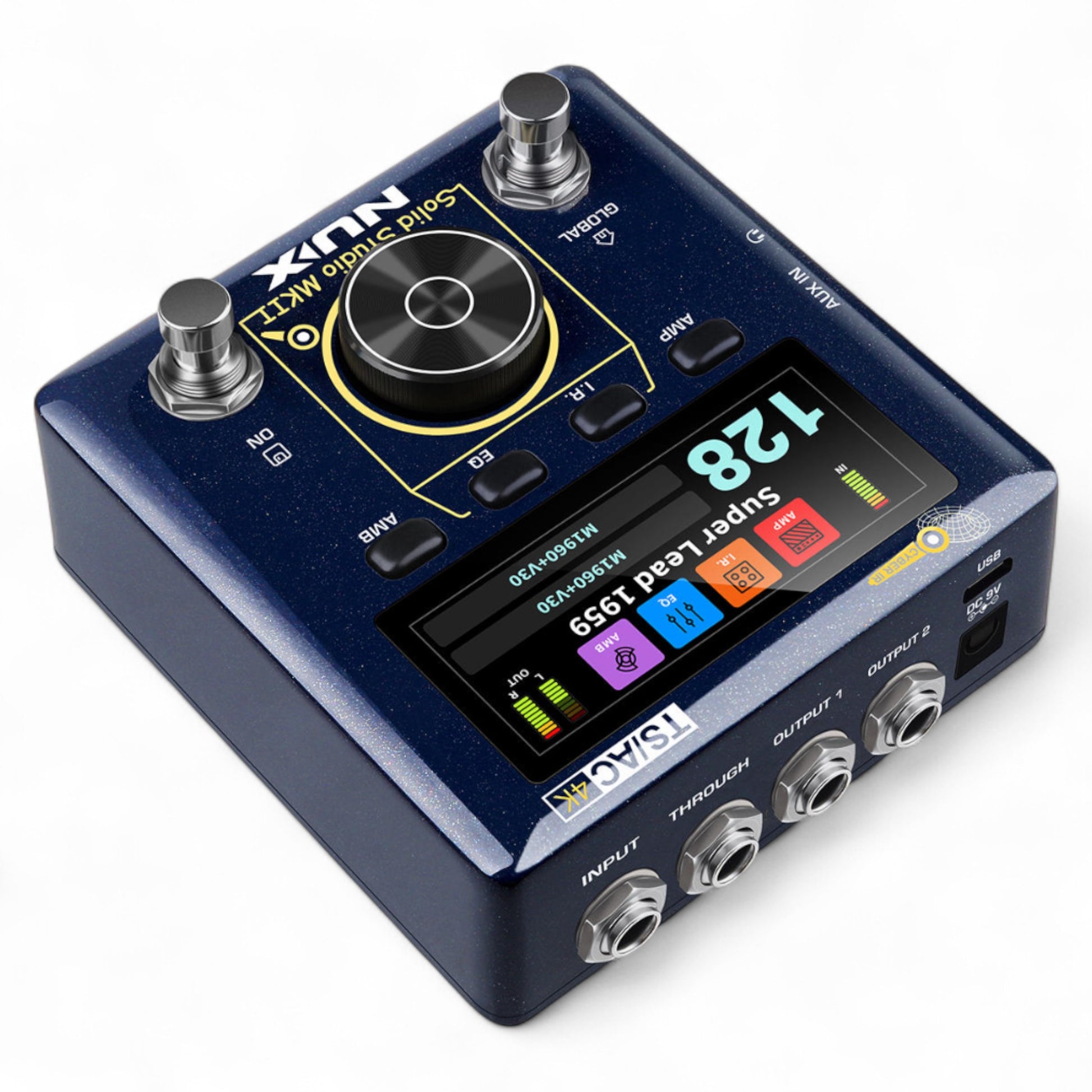

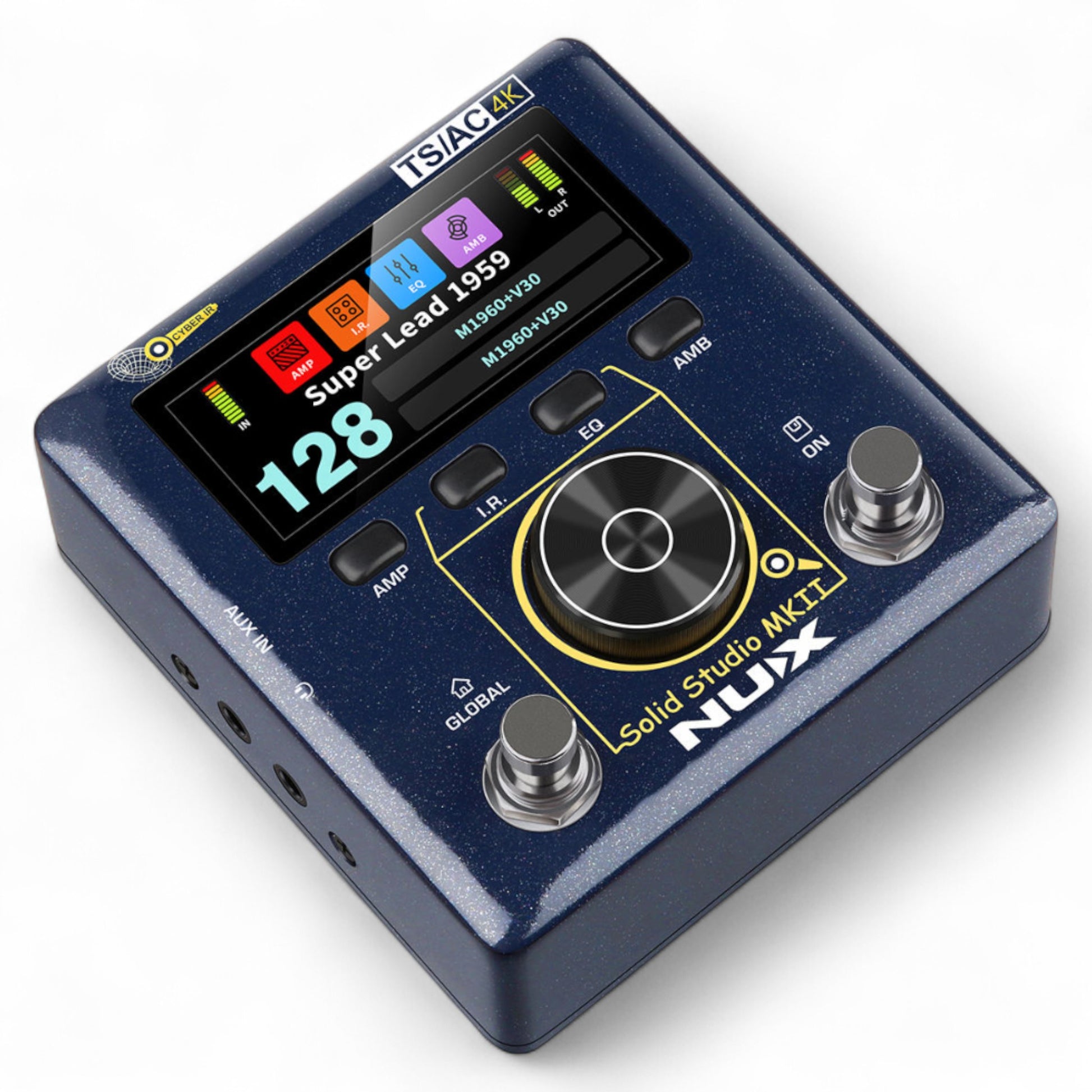

NUX Solid Studio MkII Preamp, Power Amp Simulator and IR Loader

NUX wants you to know:

SOLID STUDIO MKIl, an end-to-end tone-shaping Amp Simulator, and independent L/R CYBER IRM Engine, ushering in the following milestone evolution of the NUX.

Building upon the acclaimed Impulse Response lineage, SOLID STUDIO MKII adds independent Pre & Power Amp White-box Algorithm Modeling (TSAC-4K), stereo CYBER IRTM Engine, USB-C MIDI integration, and an intuitive PC editor (also the mobile APP), empowering players of all walks with apex-level tone in a go-anywhere footprint.

This world-class amp modeling algorithm comes fully loaded with features and functionality. Like their natural counterparts, the amps have HIGH / LOW inputs, four inputs for patch cable jumping, a toggle switch for voicing, and max tweaking.

Independent Pre & Power Amp simulation allows you to create a tone with different vacuum combinations.

The stereo CYBER IRTM Engine drives left and right Cabinets as you want, giving you a wider world experience than you can imagine.

For deft ease-of-use, EFXMobile (iOS/Android) and SolidStudio Editor (MacOS/Windows) serve as the nexus of your tone-shaping experience; simply hookup to your Phone, Tablet, or Desktop and experience liberated 1:1 integration with every editable parameter in the SOLID STUDIO MKII architecture.

Tonally, everything you demand from a state-of-the-art digital Amp Sim is here; whether it's a thundering high-gain onslaught, a sublime clean primed to serve as the foundation of a pedalboard rig, or a mojo-fuelled Brit-inspired roar, every base is covered. SOLID STUDIO MKIl, it's more than our masterpiece: a back-line in your gig bag and a macrocosm of next-level tonal excellence.

Build like a tank. The SOLID STUDIO MKII uses one-piece die-cast aluminum chase, it's solid, strong, build for live performance.

The SOLID STUDIO MKII is also a powerful studio device. You can download SOLID STUDIO Editor™ from the product page to edit patches, and setup the USB routing. The SOLID STUDIO MKII can do USB dry-out and reamp, so it's useful to create guitar tracks with mixing.

Highlights:

• Stereo CYBER IR™ Engine with dual 1024 samples resolution.Independent Pre & Power amp simulation with TSAC-4K white-box amp modeling algorithm.World-class amp modeling algorithm with full functions. (Like 4 inputs for patch cable jumping). *Currently 8 classic AMP models.
• One-piece die-cast aluminum chassis.
• AMP, IR, EQ, AMB effect blocks with free routing order.

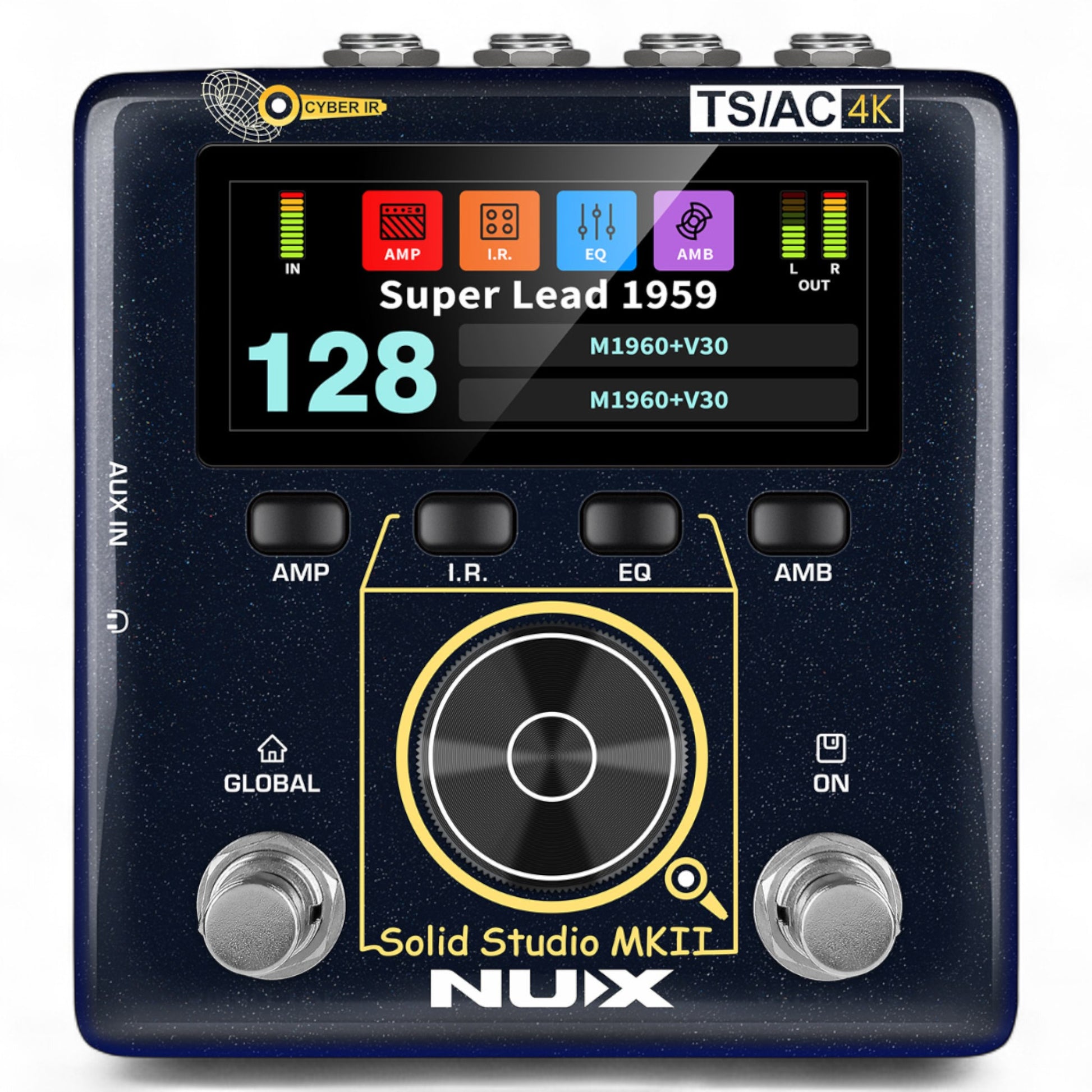

• 2.86″ color LCD display (960*376) with intuitive operations.
• 128 preset slots, independent L/R 60 IR slots.
• Built-in NOISE GATE, EQ, PHONES LEVEL, AUX IN LEVEL, OUT LEVEL in global setting.
• NORMAL, INJECT input modes. (INJECT to parallel the power amp signal.)
• USB audio interface, firmware update, SOLID STUDIO editor™ edit software.

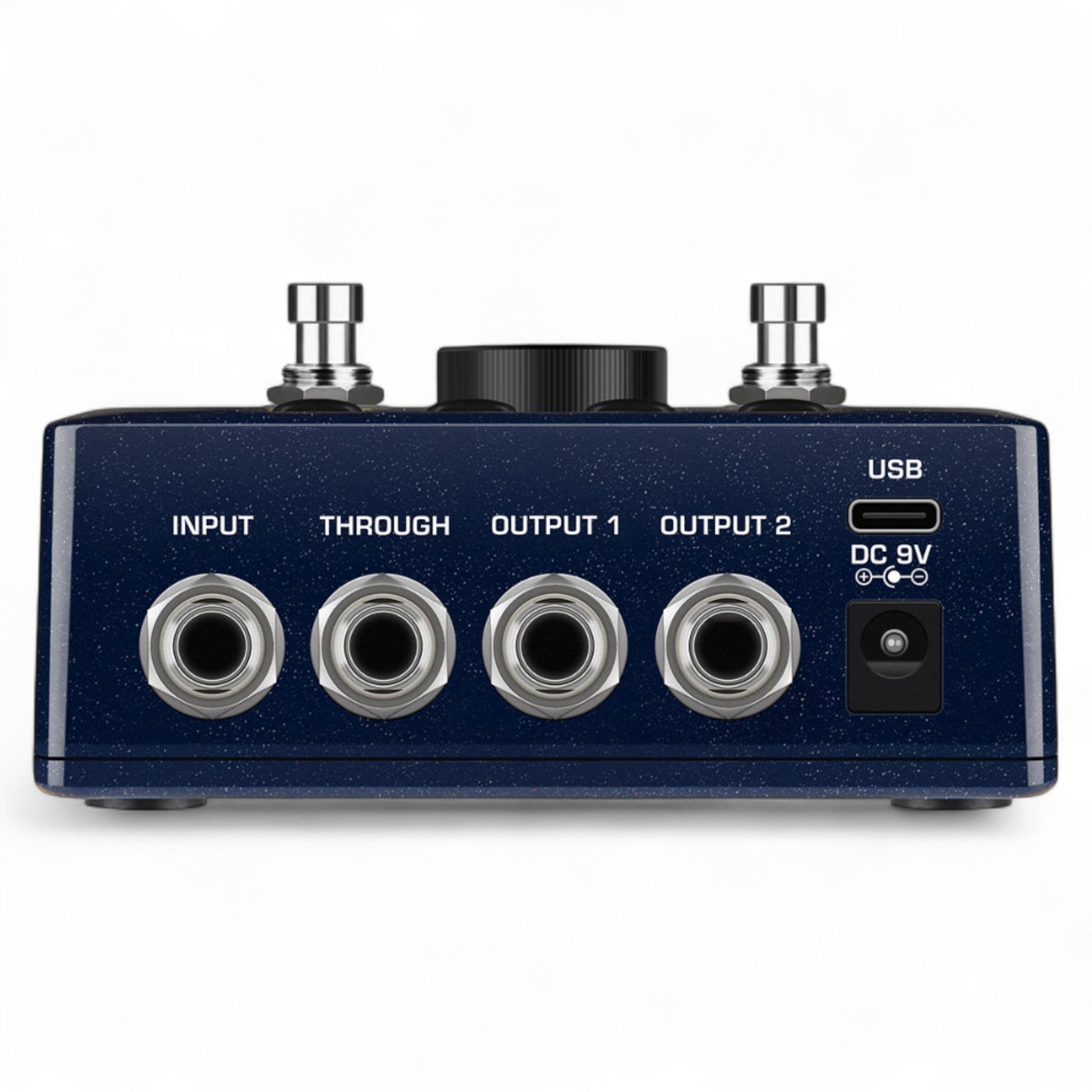

• USB-C MIDI, THROUGH jack (parallel the Power Amp signal), stereo balanced 1/4” outs with GND lift, Phones Out for silent practice.
• Great Dynamic Range: 110dB.
• Ultra-low latency: 0.85ms (bypass), 1.9ms (efx engaged).

Specifications:

• INPUT Impedance: 1MΩ
• AUX IN Impedance: 10kΩ
• OUTPUT 1, OUTPUT 2 Impedance: 100Ω
• Phone Impedance: 10Ω
• Dynamic Range: 110dB
• Sampling Rate: 48kHz/32bit
• System Latency: 0.85ms (Bypass); 1.9ms (Effect On)
• Power: 9V DC (Negative Tip)
• Current Draw: < 600mA
• Dimensions: 105(L)x115(W)x58(H)mm
• Weight: 450g
