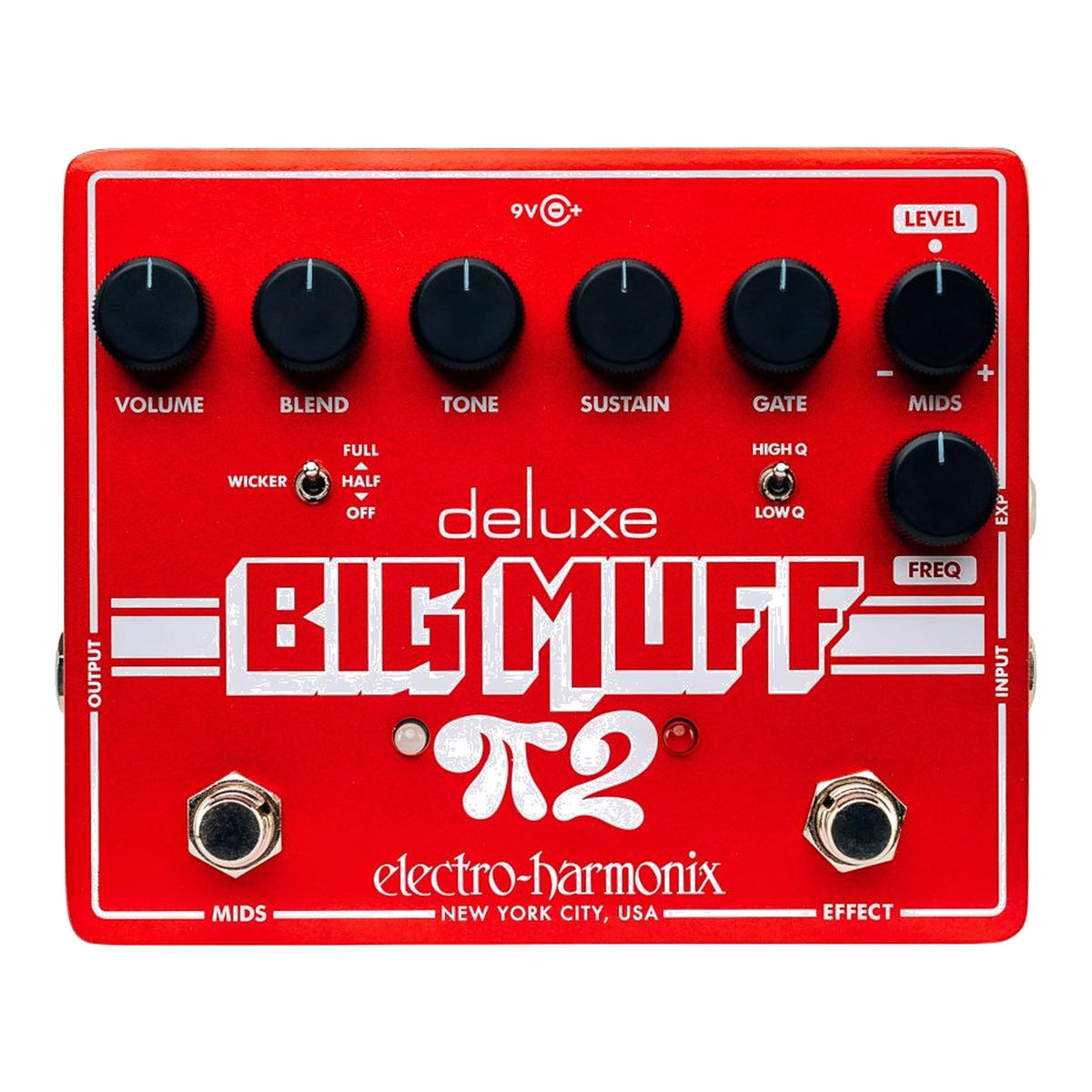

• Electro-Harmonix Deluxe Big Muff Pi 2 Front View

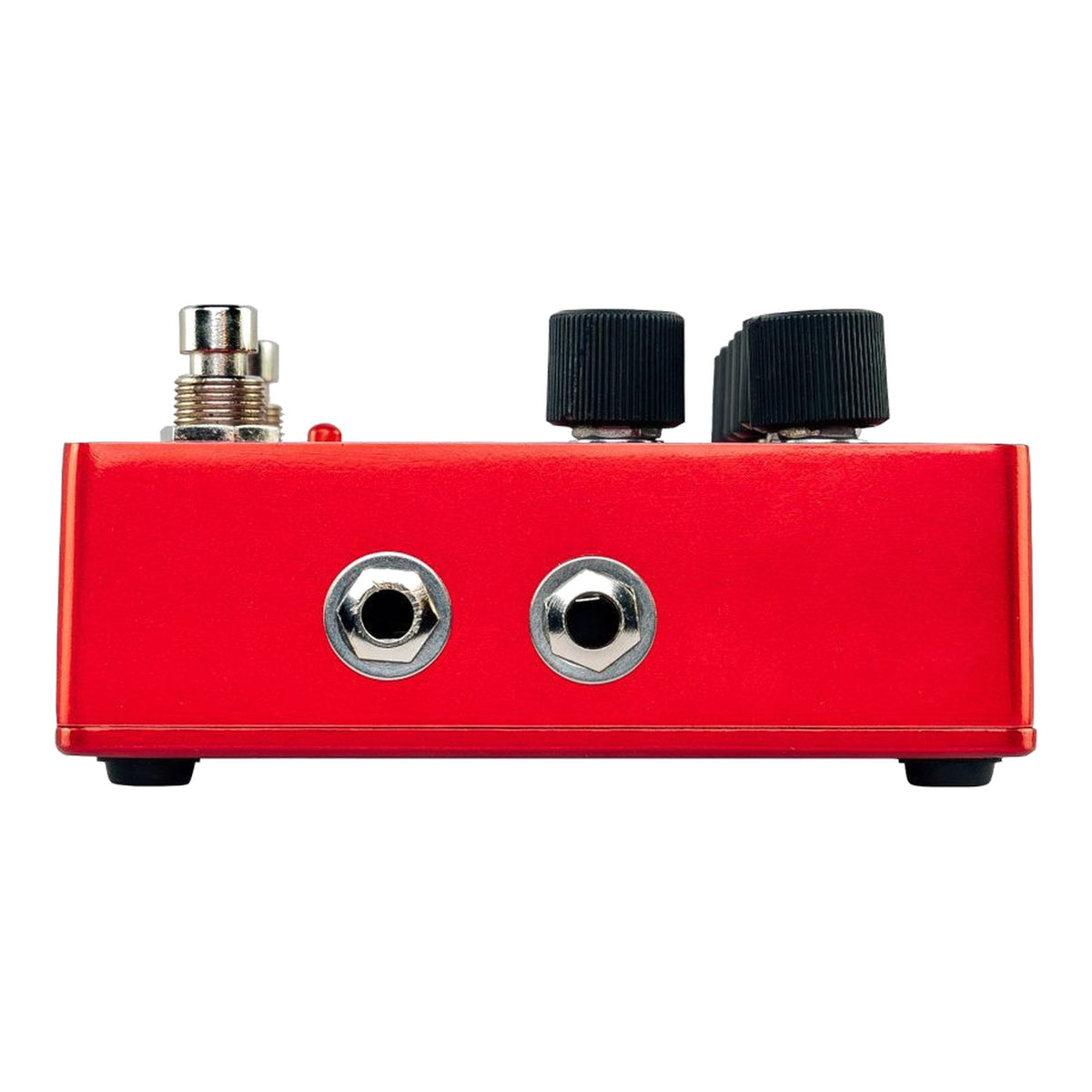

  • Electro-Harmonix Deluxe Big Muff Pi 2 Output and Expression Connections

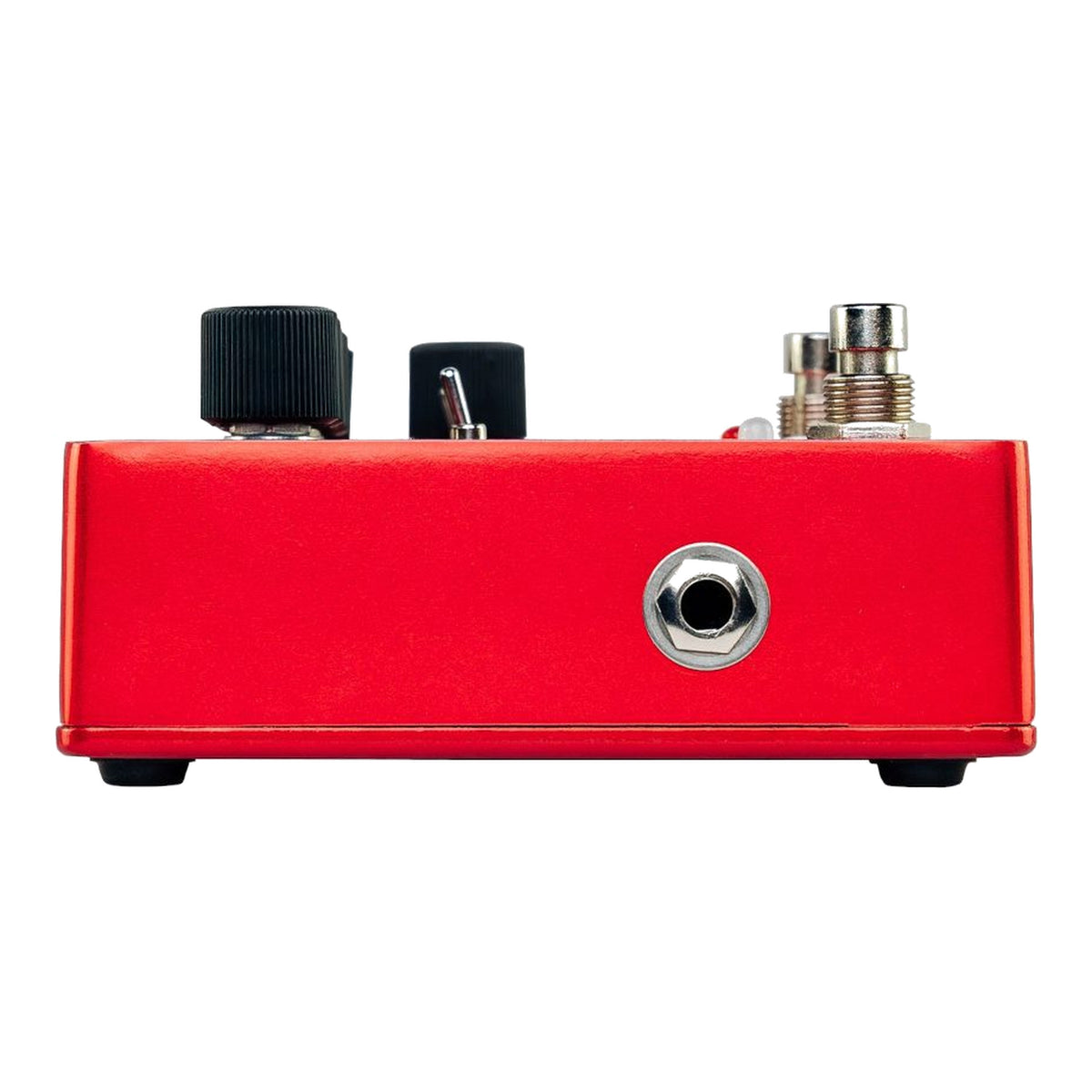

  • Electro-Harmonix Deluxe Big Muff Pi 2 Input Connection

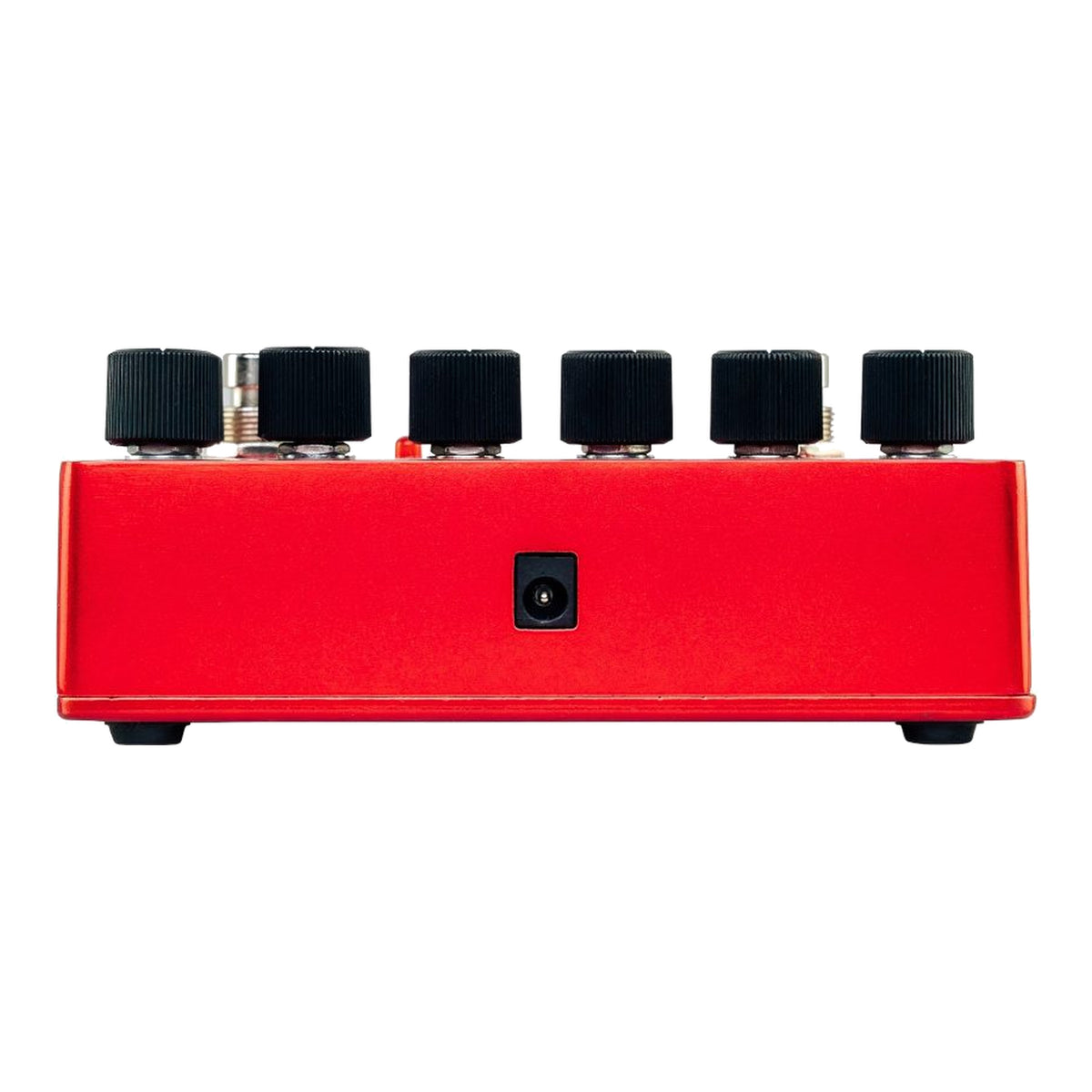

  • Electro-Harmonix Deluxe Big Muff Pi 2 Power Connection
1 4
Electro-Harmonix Authorized Dealer
Accessories > Effect Pedals > Fuzz

Electro-Harmonix Deluxe Big Muff Pi 2 Dual Op-Amp Fuzz Pedal

Electro-Harmonix Deluxe Big Muff Pi 2 Dual Op-Amp Fuzz Pedal

$188.20 USD
$0.00 USD $188.20 USD
Sale Sold Out
Shipping calculated at checkout.

In stock
Full Manufacturer's Warranty | 30 Day Returns
All items for sale (unless otherwise indicated as Used or Preowned) are brand new. Z String Music is a directly licensed or authorized dealer and all new items carry the full manufacturer's warranty.

The distinctive midrange grind of Electro-Harmonix's dual op-amp Big Muff circuit meets an expanded control set built for serious tone shaping. Flexible EQ and virtually endless sustain provide the familiar Big Muff foundation, while the Wicker switch, adjustable noise gate, clean blend, and footswitchable mids section open up a broad range of fuzz textures.

Classic Volume, Tone, and Sustain controls set output, overall EQ, and gain. Blend mixes the clean and distorted signals, preserving clarity and attack alongside heavy fuzz, while Gate sets the threshold for suppressing unwanted noise. The three-position Wicker switch opens two levels of additional high-frequency bandwidth for greater brightness, clarity, and presence.

The parametric mids section uses dedicated Frequency and Level controls to boost or cut up to 10 dB across a range of approximately 310 Hz to 5 kHz. A High/Low Q switch selects a narrow, focused response or a broader curve. Connect an expression pedal or 0–5V control-voltage source to sweep the mids frequency in real time for fuzz-wah and animated filter effects. Both the main effect and mids footswitches support normal latching operation or momentary press-and-hold action.

Features

  • Unique Big Muff Pi circuit using two dual op-amps
  • Volume, Tone, and Sustain controls
  • Blend control mixes clean and distorted signals
  • Adjustable noise-gate threshold
  • Three-way Wicker switch adds two levels of top-end clarity and presence
  • Footswitchable parametric mids section
  • Mids Level provides up to 10 dB of boost or cut
  • Mids Frequency range from approximately 310 Hz to 5 kHz
  • High/Low Q switch selects narrow or broad mids response
  • Expression and control-voltage input for real-time mids-frequency sweeps
  • Buffered bypass
  • Latching or momentary footswitch operation
  • 9.6VDC power adapter included

Specifications

  • Circuit: Analog dual op-amp fuzz
  • Audio: Mono
  • Input impedance: 2 MΩ
  • Output impedance: 500 Ω
  • Expression input: 1/4-inch TRS expression pedal or 0–5V CV via TS connection
  • Power: Included 9.6VDC, 200mA center-negative adapter
  • Current draw: 45mA
  • Dimensions: 5.75 x 4.75 x 2.5 inches
