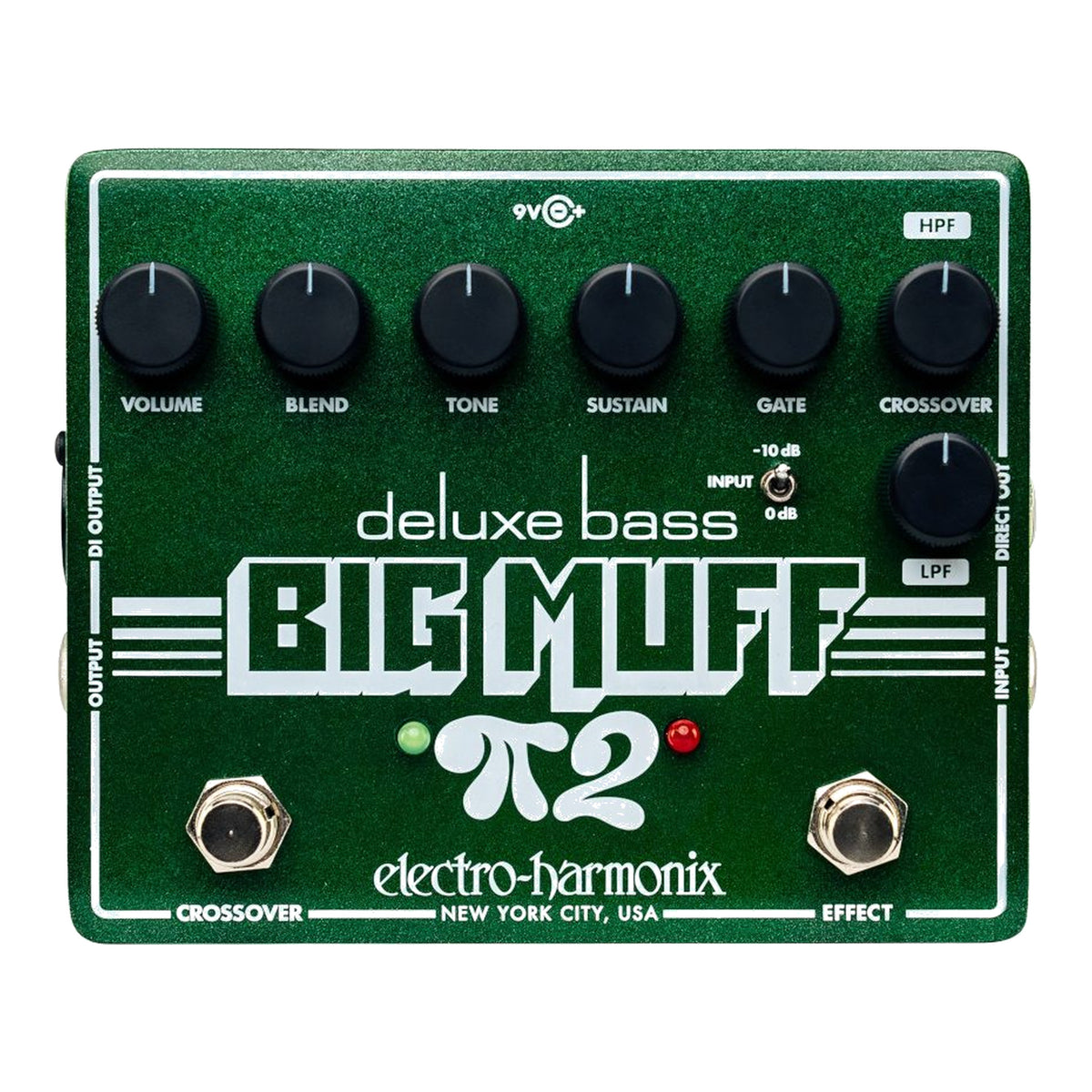

• Electro-Harmonix Deluxe Bass Big Muff Pi 2 Top View

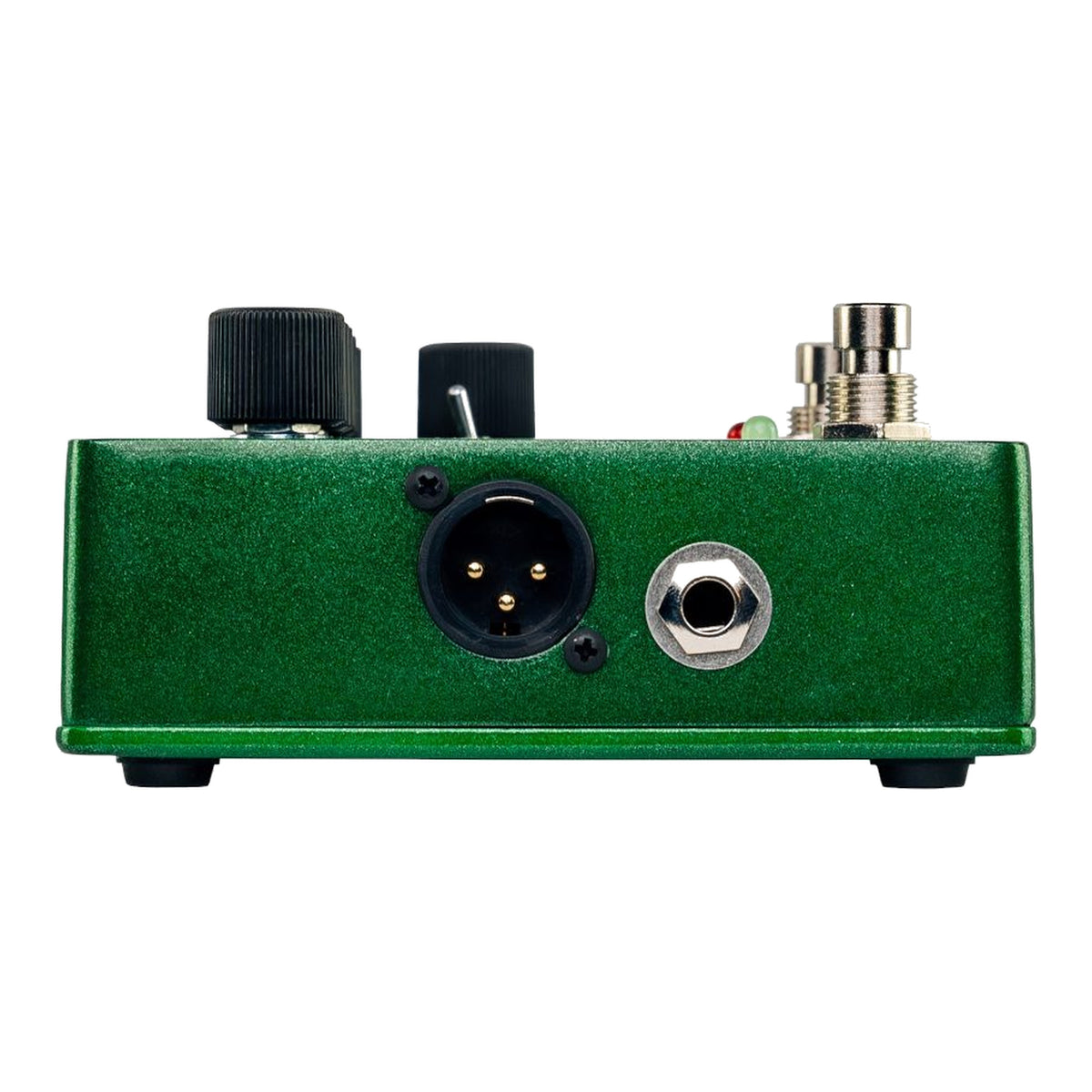

  • Electro-Harmonix Deluxe Bass Big Muff Pi 2 Input Side

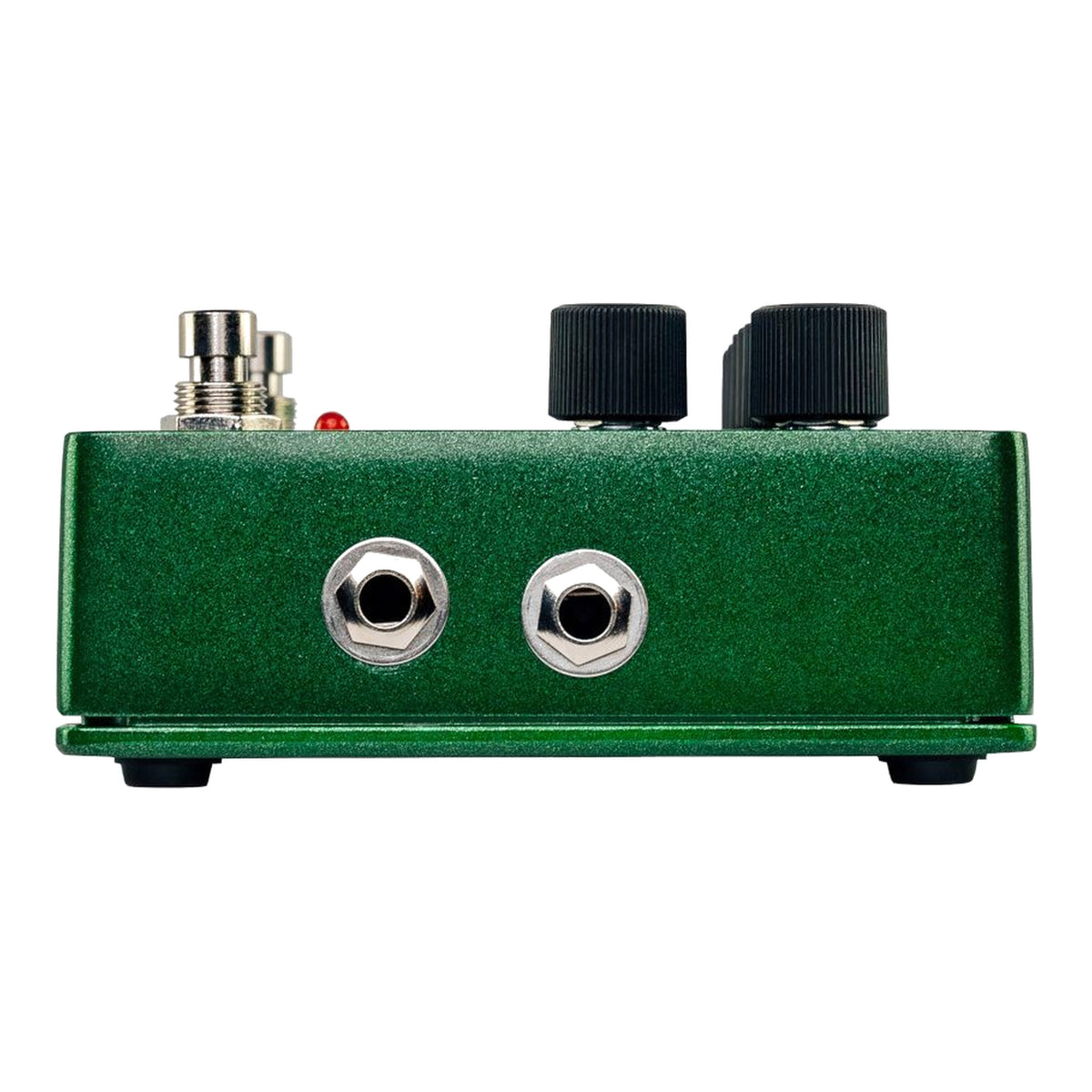

  • Electro-Harmonix Deluxe Bass Big Muff Pi 2 Output Side

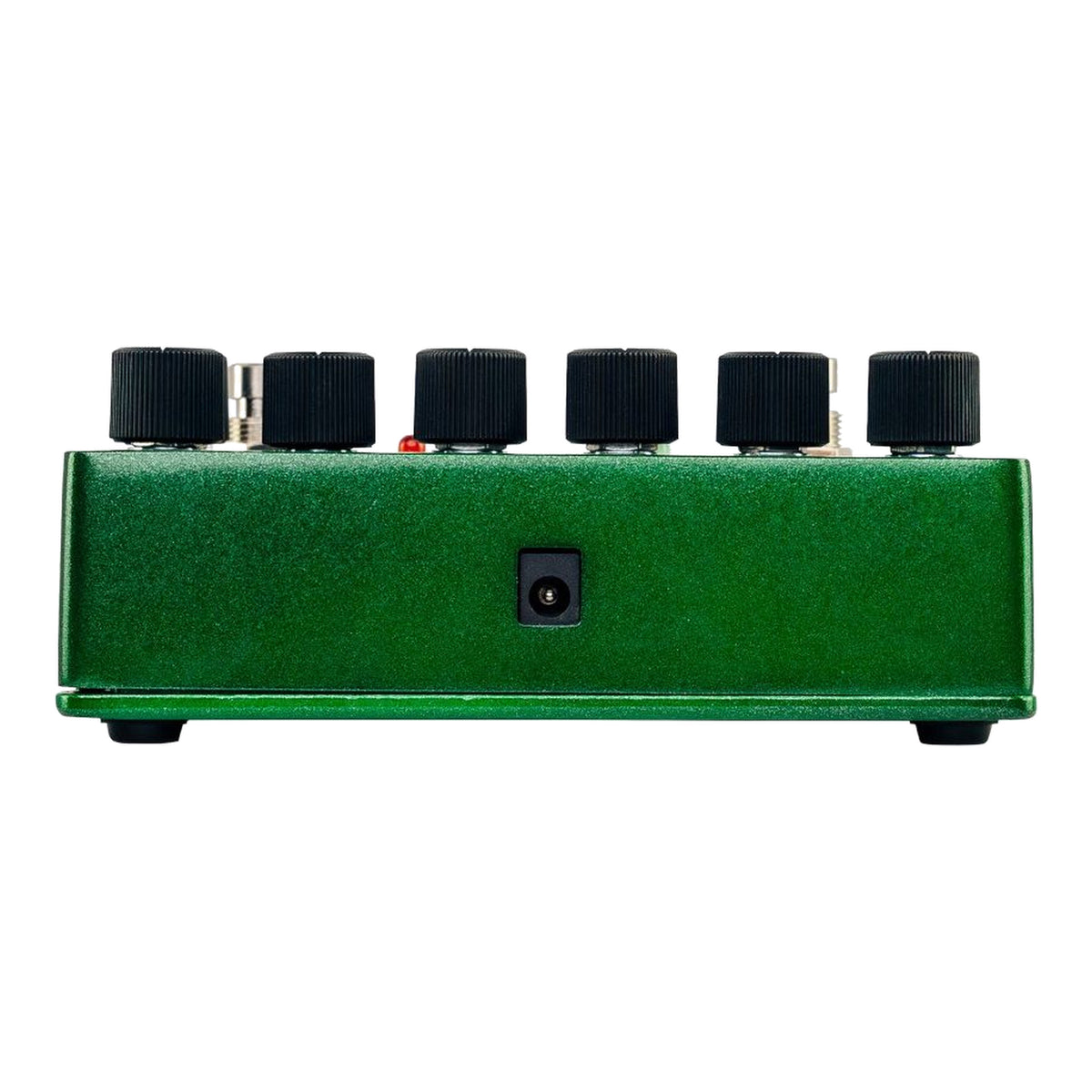

  • Electro-Harmonix Deluxe Bass Big Muff Pi 2 Power Side
1 4
Electro-Harmonix Authorized Dealer
Accessories > Effect Pedals > Made for Bass

Electro-Harmonix Deluxe Bass Big Muff Pi 2 Dual Op-Amp Bass Fuzz Pedal

Electro-Harmonix Deluxe Bass Big Muff Pi 2 Dual Op-Amp Bass Fuzz Pedal

$188.20 USD
$0.00 USD $188.20 USD
Sale Sold Out
Shipping calculated at checkout.

In stock
Full Manufacturer's Warranty | 30 Day Returns
All items for sale (unless otherwise indicated as Used or Preowned) are brand new. Z String Music is a directly licensed or authorized dealer and all new items carry the full manufacturer's warranty.

The once-lost dual op-amp Big Muff 2 circuit receives a bass-focused deluxe treatment with flexible tone shaping, extended low-end, and virtually endless sustain. Its signature midrange grind is supported by a clean blend, adjustable noise gate, footswitchable crossover, and expanded outputs for stage and studio use.

Volume, Tone, and Sustain set the overall output level, distorted-signal EQ, and amount of fuzz. The Blend control balances the clean and distorted paths so heavy fuzz can retain a solid fundamental and clear attack. Gate sets the input threshold needed to open the noise gate, helping keep high-gain sounds tight and controlled.

The footswitchable Crossover section divides the signal into separate clean and fuzz paths. Its high-pass filter removes low frequencies from the signal entering the fuzz circuit, while its low-pass filter shapes the clean path. Independent HPF and LPF controls make it possible to combine a clear, cutting fuzz texture with a large, clean bass foundation.

A selectable -10 dB input pad accommodates active instruments and other high-output sources. Along with the main output, the pedal provides a low-impedance XLR DI output carrying the effected signal and a buffered Direct Out carrying the original clean signal. Both the main effect and crossover footswitches support standard latching operation or momentary press-and-hold action.

Features

  • Unique Big Muff Pi circuit using two dual op-amps
  • Bass-optimized response with extended low-end
  • Volume, Tone, and Sustain controls
  • Blend control mixes clean and distorted signals
  • Adjustable noise-gate threshold
  • Footswitchable crossover with independent high-pass and low-pass filters
  • HPF range of approximately 115 Hz to 1 kHz on the fuzz path
  • LPF range of approximately 60 Hz to 10 kHz on the clean path
  • Selectable -10 dB input attenuation for high-output pickups
  • Low-impedance XLR DI output for the effected signal
  • Buffered Direct Out for the original clean signal
  • Buffered bypass
  • Latching or momentary footswitch operation
  • 9.6VDC power adapter included

Specifications

  • Circuit: Analog dual op-amp fuzz
  • Audio: Mono
  • Input impedance: 2.2 MΩ
  • Main and direct output impedance: 550 Ω
  • DI output: Low-impedance XLR
  • Power: Included 9.6VDC, 200mA center-negative adapter
  • Current draw: 45mA
  • Dimensions: 5.75 x 4.75 x 2.5 inches
