Diamond Pedals Phase 2/4/6-Stage Analog Phaser Pedal, Black Edition

Diamond Pedals Phase 2/4/6-Stage Analog Phaser Pedal, Black Edition

$239.00 USD
$0.00 USD $239.00 USD
Sale Sold Out
Shipping calculated at checkout.

In stock
Full Manufacturer's Warranty | 30 Day Returns
All items for sale (unless otherwise indicated as Used or Preowned) are brand new. Z String Music is a directly licensed or authorized dealer and all new items carry the full manufacturer's warranty.

A fully analog audio path built around six carefully selected and matched JFET transistors delivers smooth phase shifting with warmth, depth, and clarity. The compact design revives the character of Diamond's original PSH-1 while adding a broader range of stage configurations and practical features for modern pedalboards.

Selecting 2-stage operation produces light movement for subtle enhancement and always-on textures. The 4-stage mode supplies the balanced sweep associated with classic phasing, while 6-stage operation creates deeper notches, stronger color, and more complex psychedelic movement.

Level, Speed, Regeneration, and Depth controls provide direct control over output, sweep rate, feedback, and effect intensity. Holding the ON/DBL footswitch engages a speed-doubling function that can be configured for momentary or latching operation. Top-mounted jacks, soft-touch relay true bypass, and an internal voltage pump keep the pedal compact while operating its circuit at 15 volts from a standard 9-15V supply.

Features

  • Fully analog six-JFET phaser circuit
  • Selectable 2-, 4-, or 6-stage phase shifting

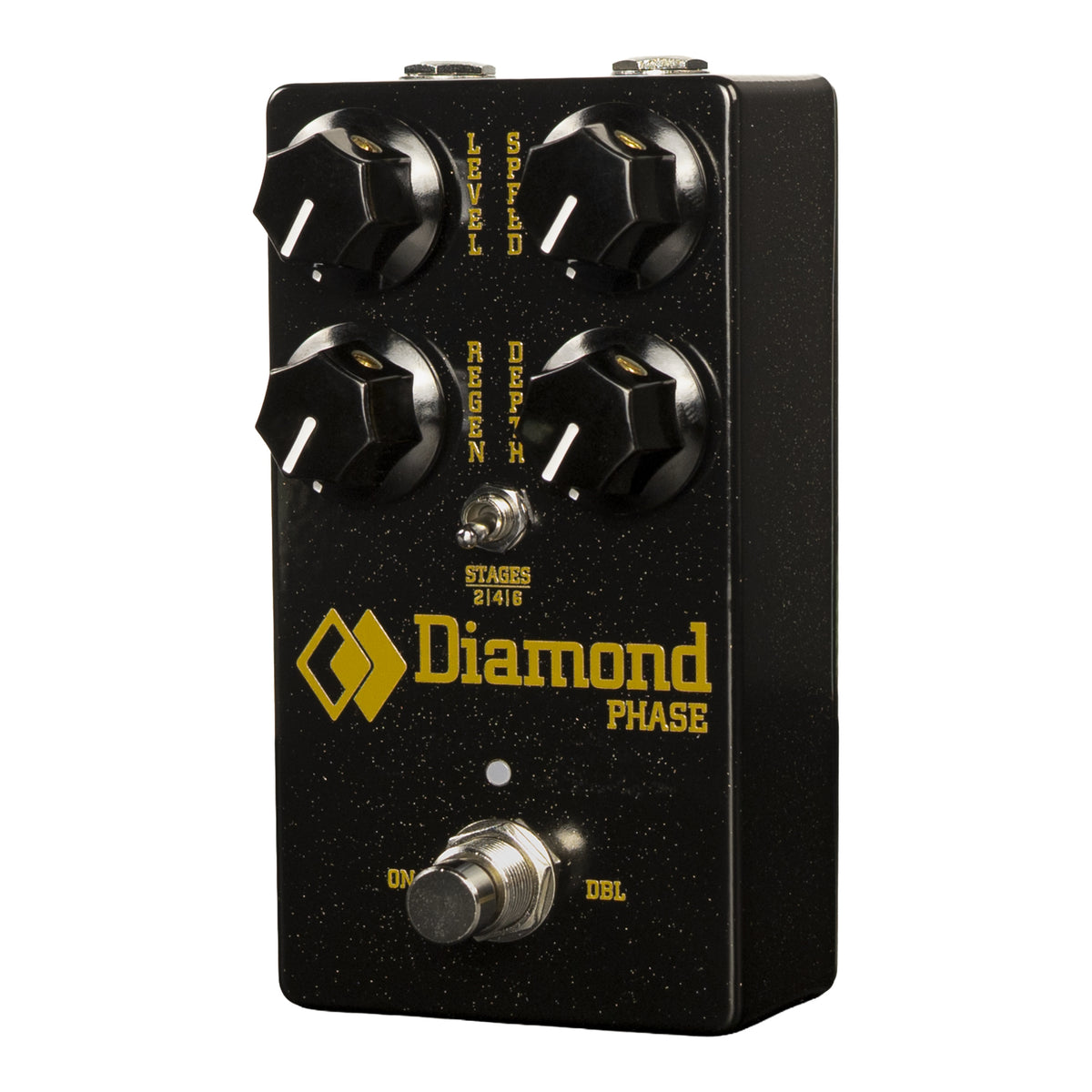

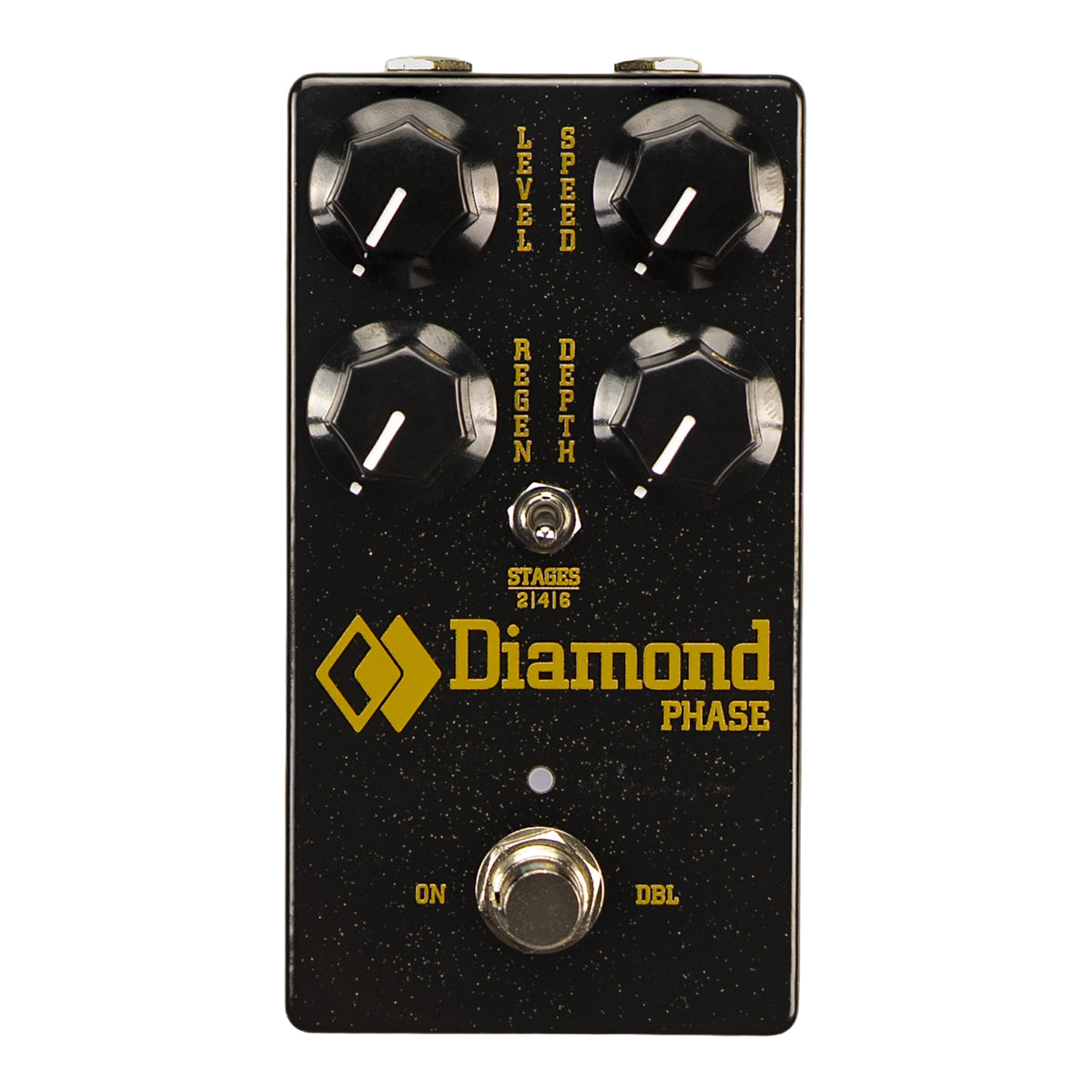

  • Level, Speed, Regeneration, and Depth controls
  • Footswitchable speed doubler with momentary or latching operation
  • Speed range: 0.1-10 Hz
  • Soft-touch relay true bypass

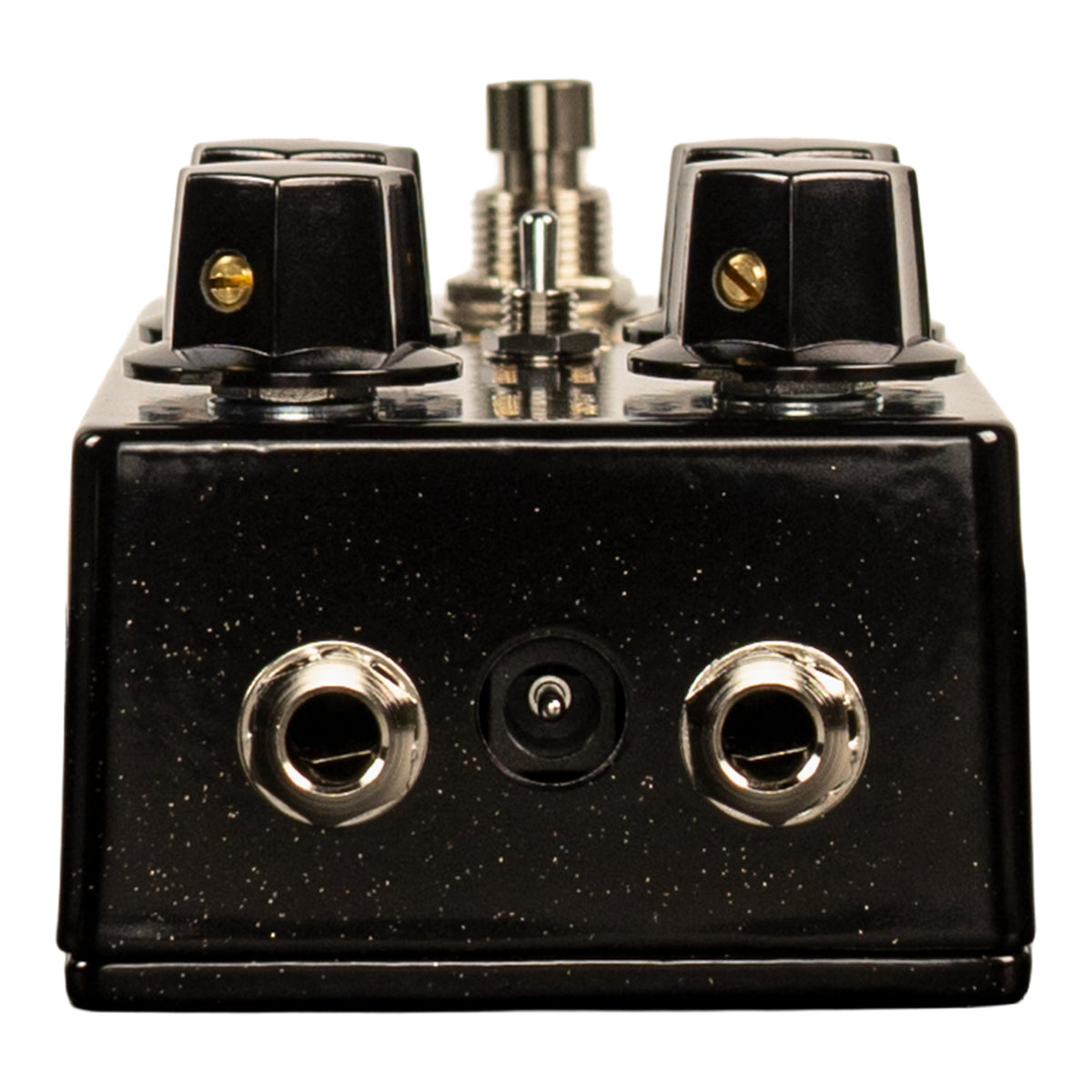

  • Top-mounted input, output, and power connections
  • Made in Canada

Specifications

  • Input impedance: greater than 1 MΩ
  • Output impedance: less than 10 kΩ
  • Power: 9-15V DC, center-negative, 2.1 mm barrel connector
  • Current draw: 80 mA at 9V DC
  • Dimensions: 4.8 x 2.64 x 1.58 inches
  • Product weight: 300 g
  • Power supply not included
