Chameleon Labs 7603 XMod Microphone Preamp and EQ

Chameleon Labs 7603 XMod Microphone Preamp and EQ is a single-channel, transformer-balanced mic and line preamp with a built-in 3-band EQ, high-pass filter, front-panel DI, and a stepped gain structure that encourages deliberate gain staging.

The XMod version builds on the standard 7603 with a Carnhill output transformer, changing how the unit responds when the input stage is pushed. This primarily affects how the low end holds together, how transients round off, and how harmonic content develops under heavier gain. The difference is not about basic functionality, but about how the unit behaves when driven and evaluated in a resolving signal chain.

The 7603 XMod uses separate transformer-balanced microphone and line inputs, a discrete Class A circuit design, custom-wound transformers, and a continuously variable output stage that lets you trim level cleanly or lean into the input stage when the source calls for it. Mic gain runs from +20 dB to +70 dB in 5 dB steps, while the line input covers -30 dB to +20 dB, so it can handle microphones, line-level sources, and direct instrument duties without compromise.

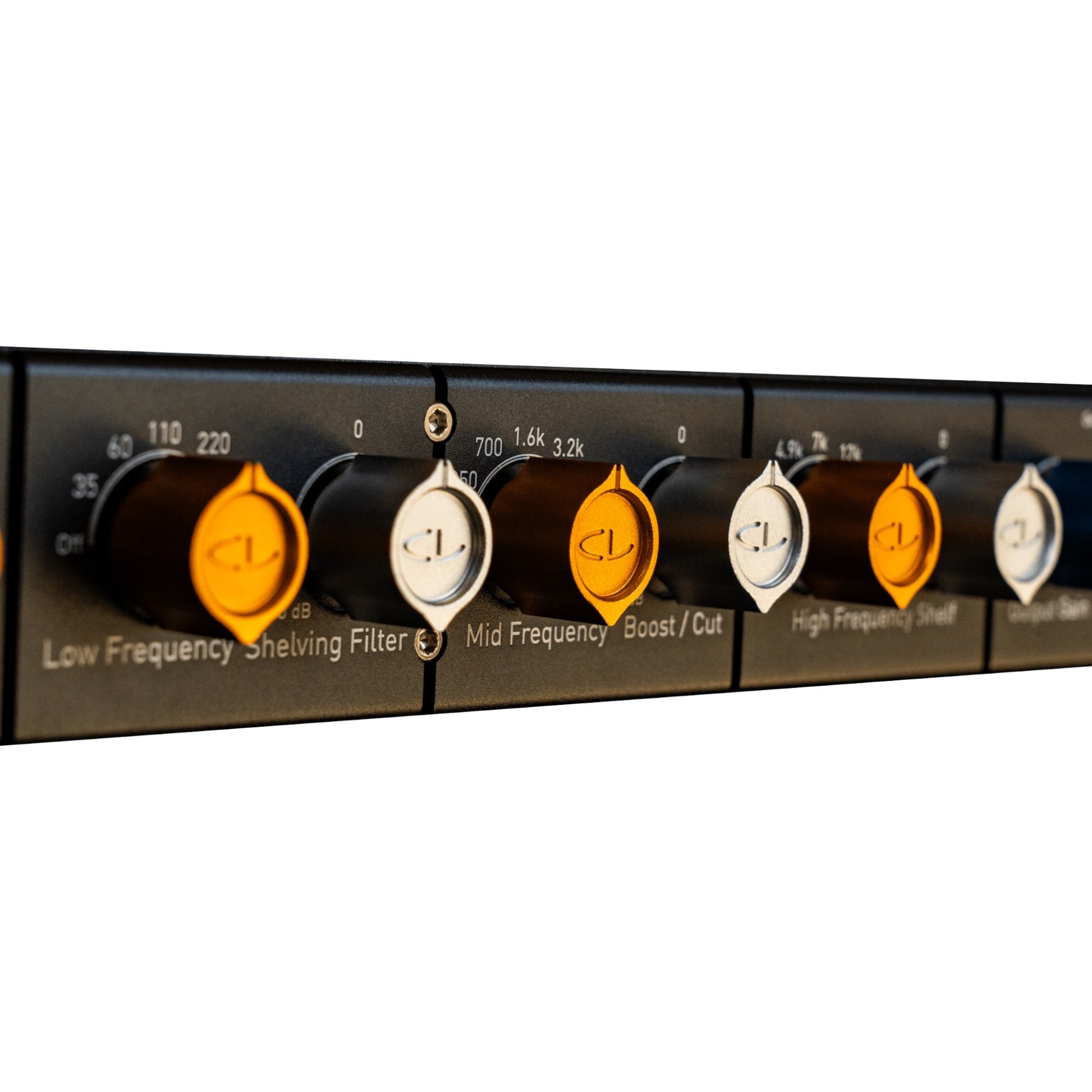

The EQ section is a big part of the appeal. You get a selectable high-pass filter, a low shelving band, a mid peaking band, and a high shelving band, each with useful musical frequency points. The low band offers 35, 60, 110, and 220 Hz. The mid band covers 350 Hz, 700 Hz, 1.6 kHz, 3.2 kHz, 4.8 kHz, and 7.2 kHz. The high band provides 3.4 kHz, 4.9 kHz, 7 kHz, 12 kHz, and 16 kHz. Each band offers up to 15 dB of boost or cut, and the entire EQ section can be bypassed from the front panel for quick comparison.

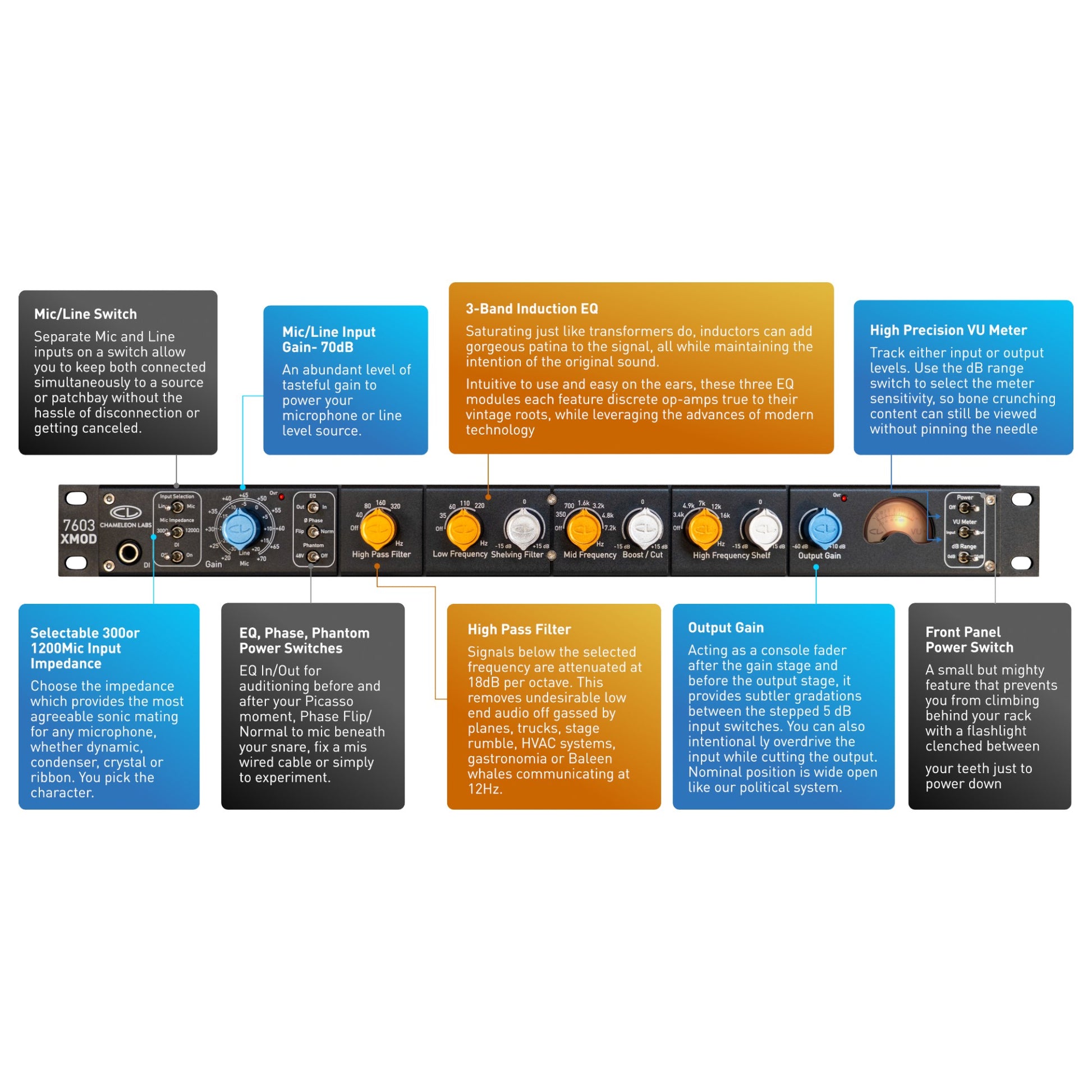

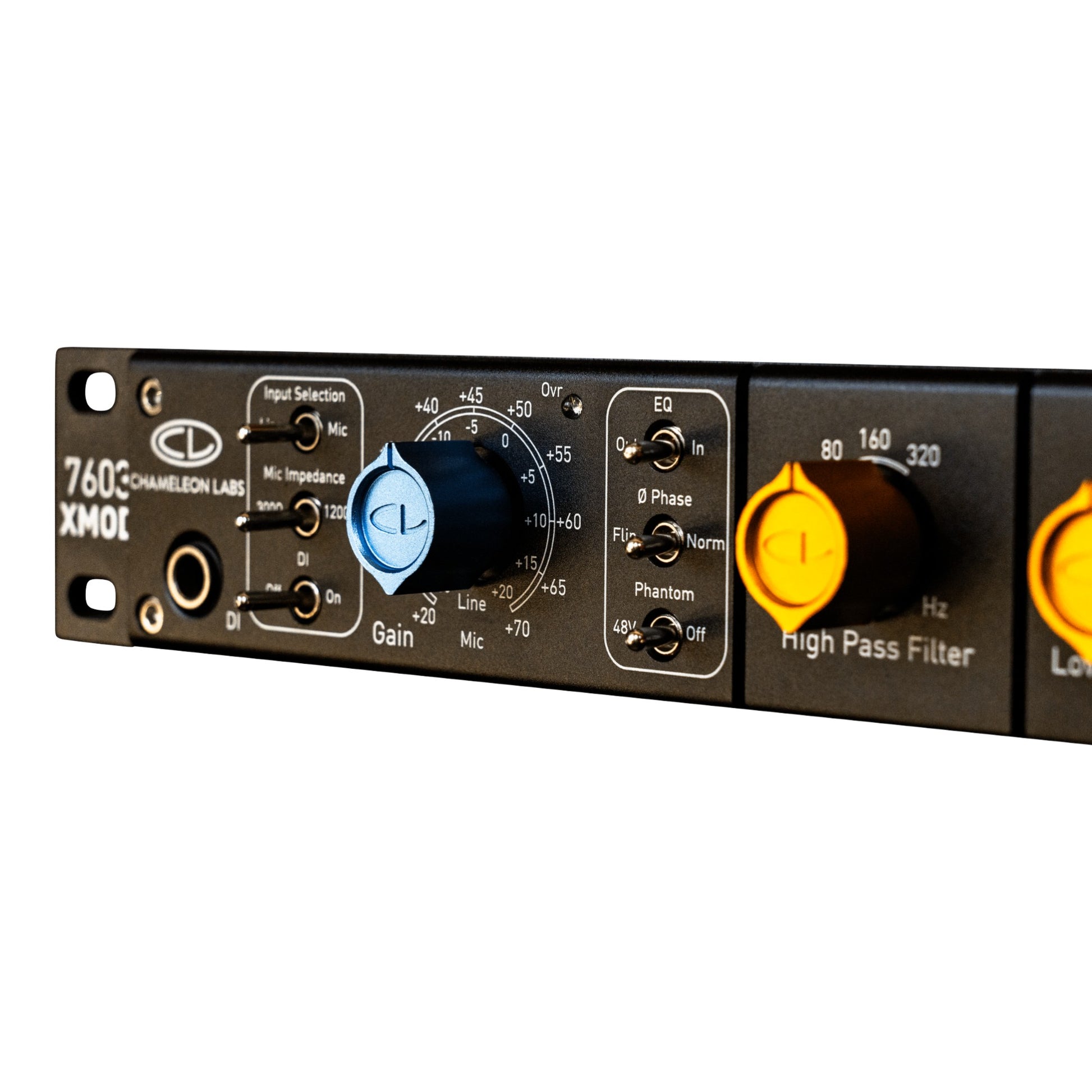

Practical control is why units like this still exist. The front panel includes mic/line switching, DI on/off, 48V phantom power, phase reversal, selectable 300Ω or 1200Ω mic input impedance, input and output overload indication, and a VU meter that can read input or output with a selectable range. The front-panel DI input allows direct connection for instruments, and the internal universal power supply integrates cleanly into a permanent rack without external adapters.

This is a solid front end for vocals, bass DI, synths, drums, and re-amping chains, especially when the goal is to shape the signal before it hits your interface and you are intentionally using gain to influence tone.

• Single-channel microphone and line preamp with built-in EQ
• Transformer-balanced microphone input, line input, and output
• Discrete Class A topology with Carnhill output transformer
• Mic gain range: +20 dB to +70 dB in 5 dB steps
• Line gain range: -30 dB to +20 dB in 5 dB steps
• Front-panel Hi-Z DI input on 1/4" TRS
• Selectable microphone input impedance: 300Ω or 1200Ω
• 48V phantom power and phase reversal
• 3-band EQ with bypass
• High-pass filter frequencies: Off, 40, 80, 160, 320 Hz
• Low EQ frequencies: 35, 60, 110, 220 Hz
• Mid EQ frequencies: 350, 700, 1.6k, 3.2k, 4.8k, 7.2 kHz
• High EQ frequencies: 3.4k, 4.9k, 7k, 12k, 16 kHz
• Up to ±15 dB boost/cut on each EQ band
• Variable output gain for level trim or intentional input drive
• Input and output overload LEDs

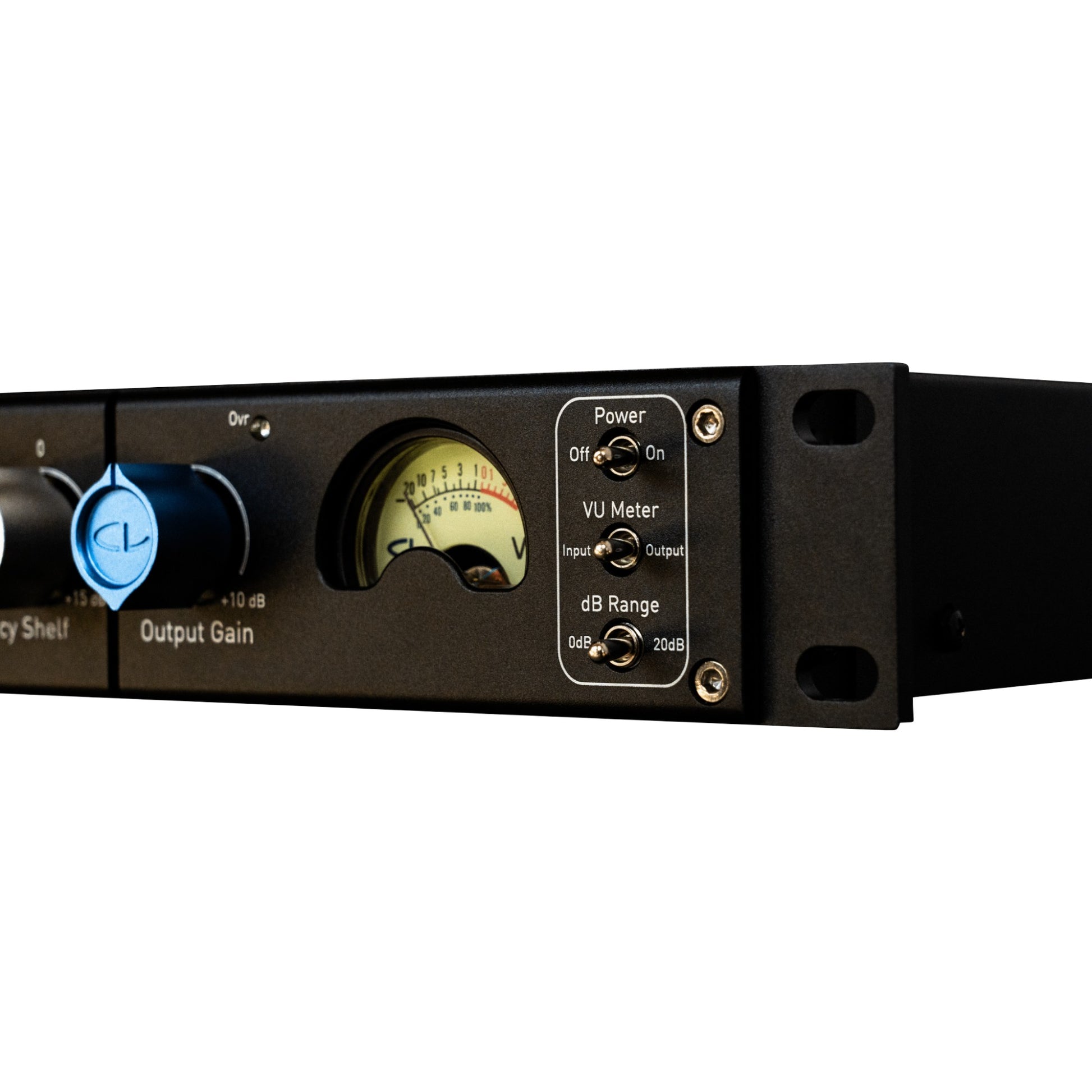

• Illuminated VU meter with input/output select and 0 dB or -20 dB range

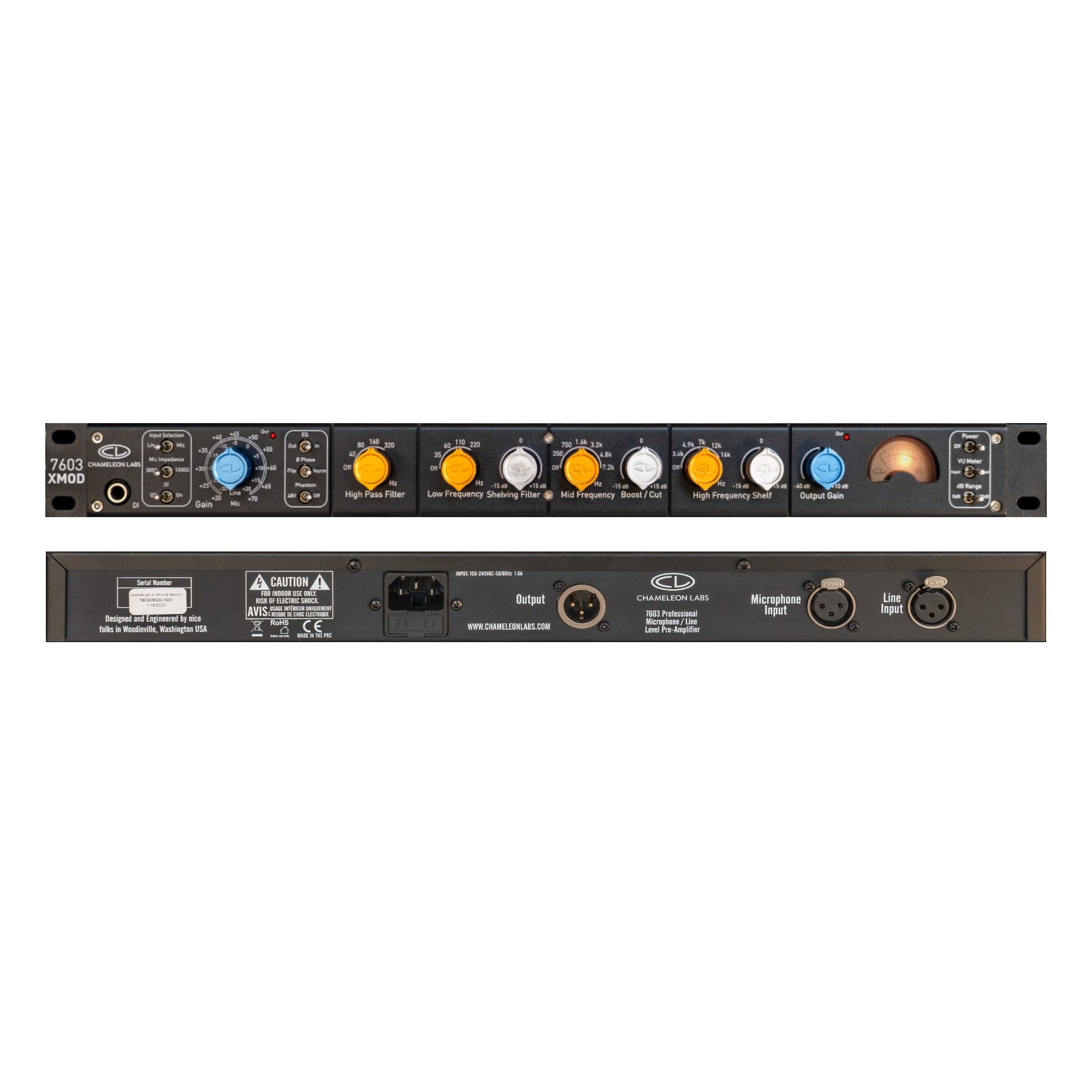

• Rear-panel XLR mic input, XLR line input, and XLR output
• Internal universal power supply, 100 to 240 VAC
• 1U rackmount format
