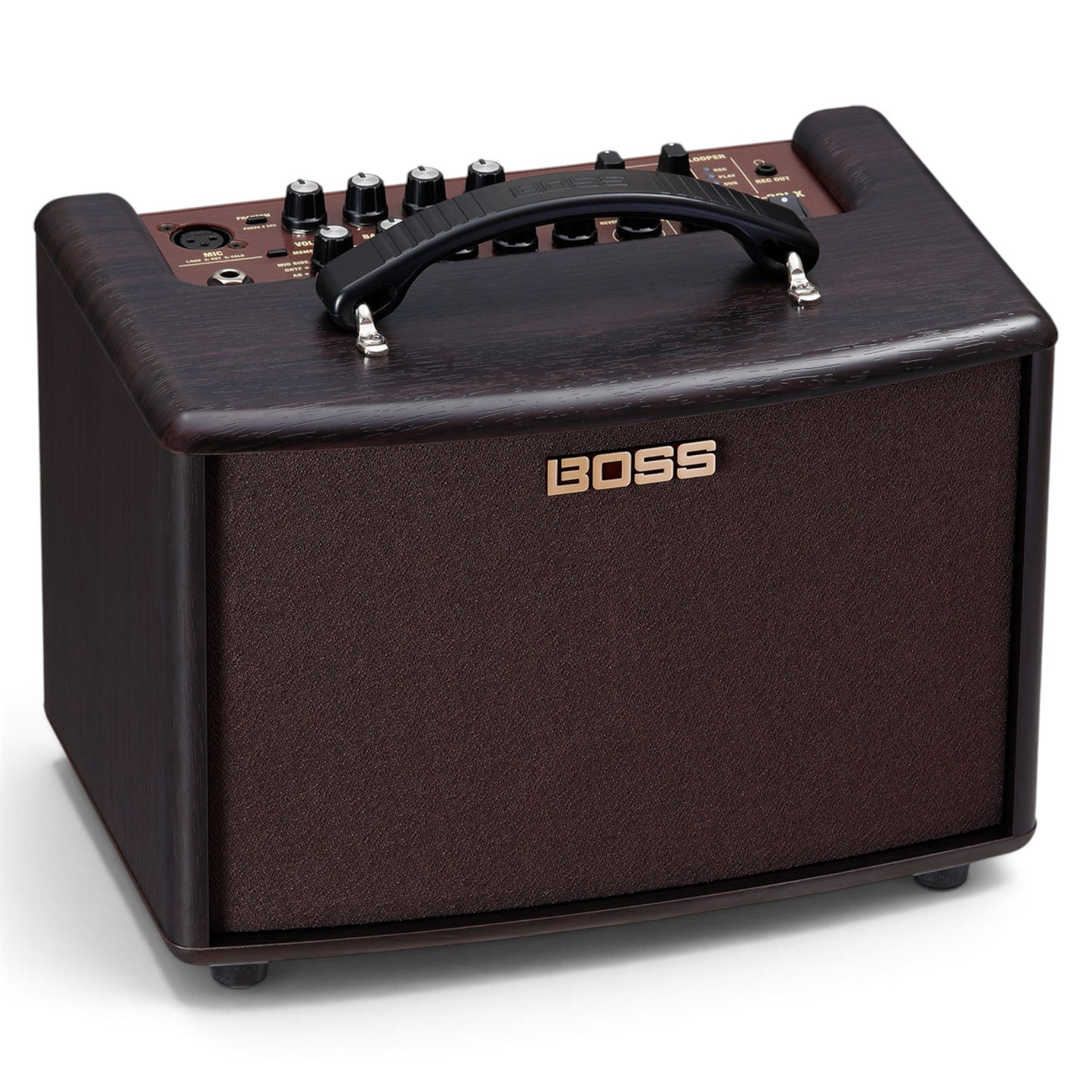

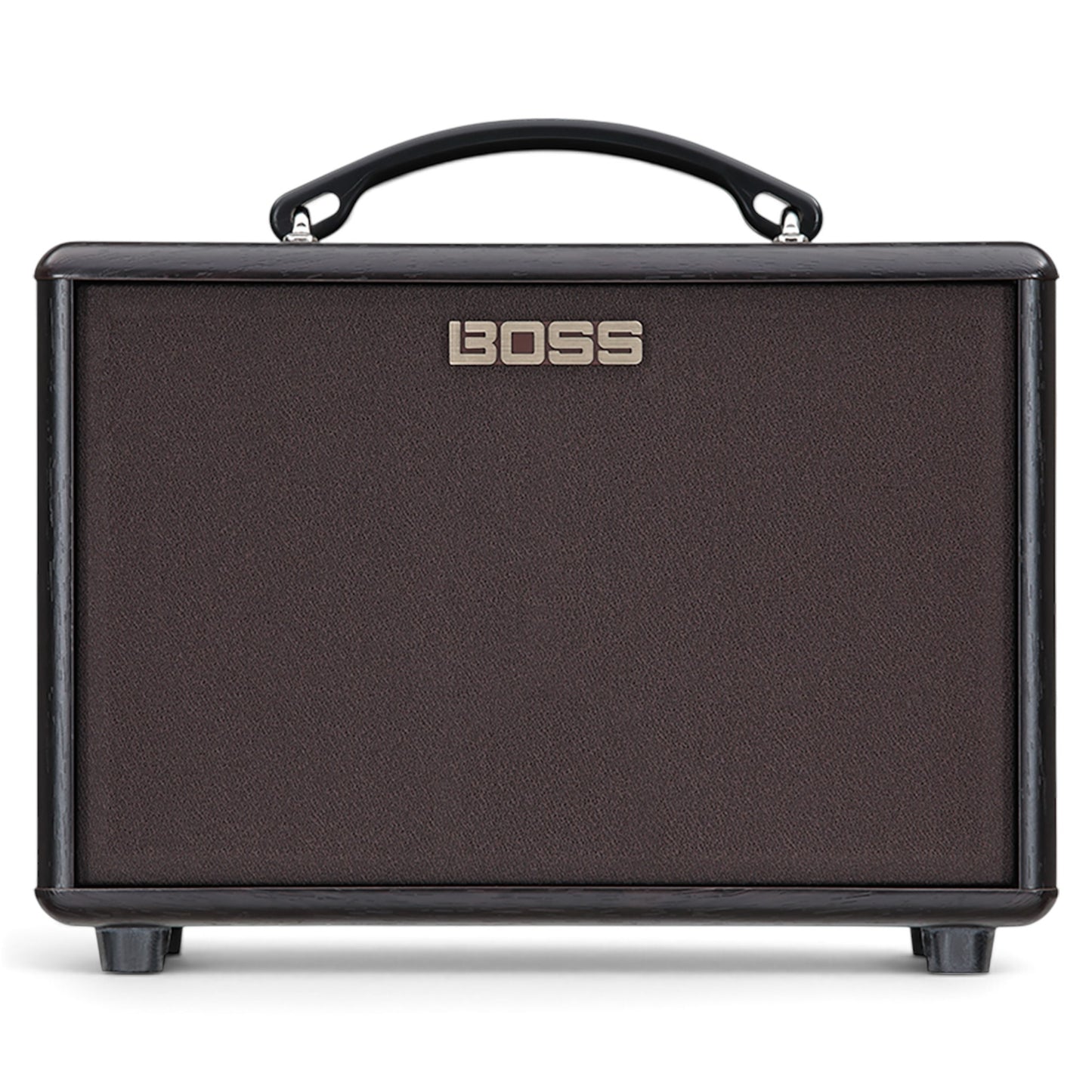

BOSS AC-22LX 10W Stereo Acoustic Guitar Amplifier with Air Feel

The BOSS AC-22LX brings a new dimension to compact acoustic amplification. Combining a 10-watt stereo power amp with two custom 5-inch twin-cone speakers and advanced BOSS spatial processing, the AC-22LX delivers natural, immersive acoustic sound from an exceptionally portable amplifier.

At the heart of the AC-22LX is innovative Air Feel technology, which transforms the typically dry sound of an acoustic instrument pickup by recreating the depth, dimension, and natural resonance associated with classic stereo microphone techniques. Simply connect your acoustic-electric guitar or other pickup-equipped acoustic instrument and select the Air Feel setting that complements your playing style.

Five Air Feel Settings

The AC-22LX provides five selectable Air Feel types, allowing you to quickly shape the spatial character of your amplified instrument:

• Dry: Direct, unprocessed pickup sound
• XY: Recreates a focused coincident-pair stereo microphone technique
• AB: Recreates a wide spaced-pair microphone setup with expanded acoustic resonance
• ORTF: Provides a spacious and naturally balanced stereo presentation
• Mid-Side: Recreates the distinctive depth and stereo character of a mid-side microphone configuration

Dedicated Guitar and Microphone Channels

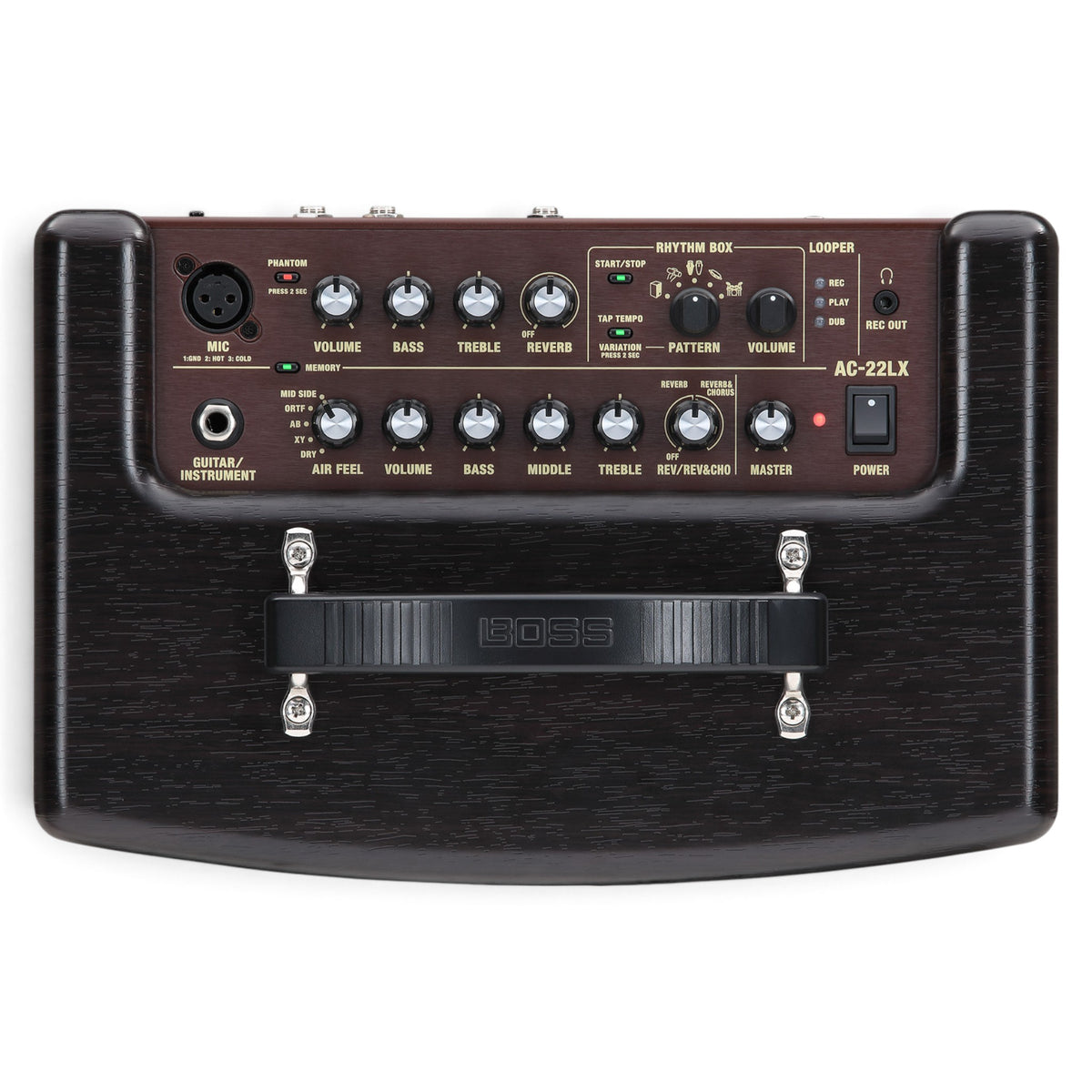

The Guitar/Instrument channel features dedicated Volume, Bass, Middle, and Treble controls along with the Air Feel selector and dedicated Reverb/Reverb & Chorus processing.

A separate Mic channel features a professional XLR input with 48V phantom power, dedicated Volume, Bass and Treble controls, and its own Reverb effect. This makes the AC-22LX an excellent self-contained amplification system for singer-guitarists and other acoustic performers.

Rhythm Box, Looper, and Memories

The onboard Rhythm Box provides 15 ready-to-use patterns for practice and performance. Connect the AC-22LX to the free editor software to access and customize from 119 available pattern selections.

A built-in looper further expands the creative possibilities and can be controlled with an optional compatible footswitch. The AC-22LX also provides 15 memories for storing and instantly recalling your favorite sound setups.

Recording, Livestreaming, and Playback

The AC-22LX is equally useful away from the stage. Its integrated USB audio interface provides a convenient connection to a computer for recording and livestreaming, complete with a Loopback function. Stereo Line outputs carry the spacious Air Feel sound to a PA, mixer, or recording system, while a stereo Aux input lets you connect a music player and perform along with backing tracks.

Portable Power

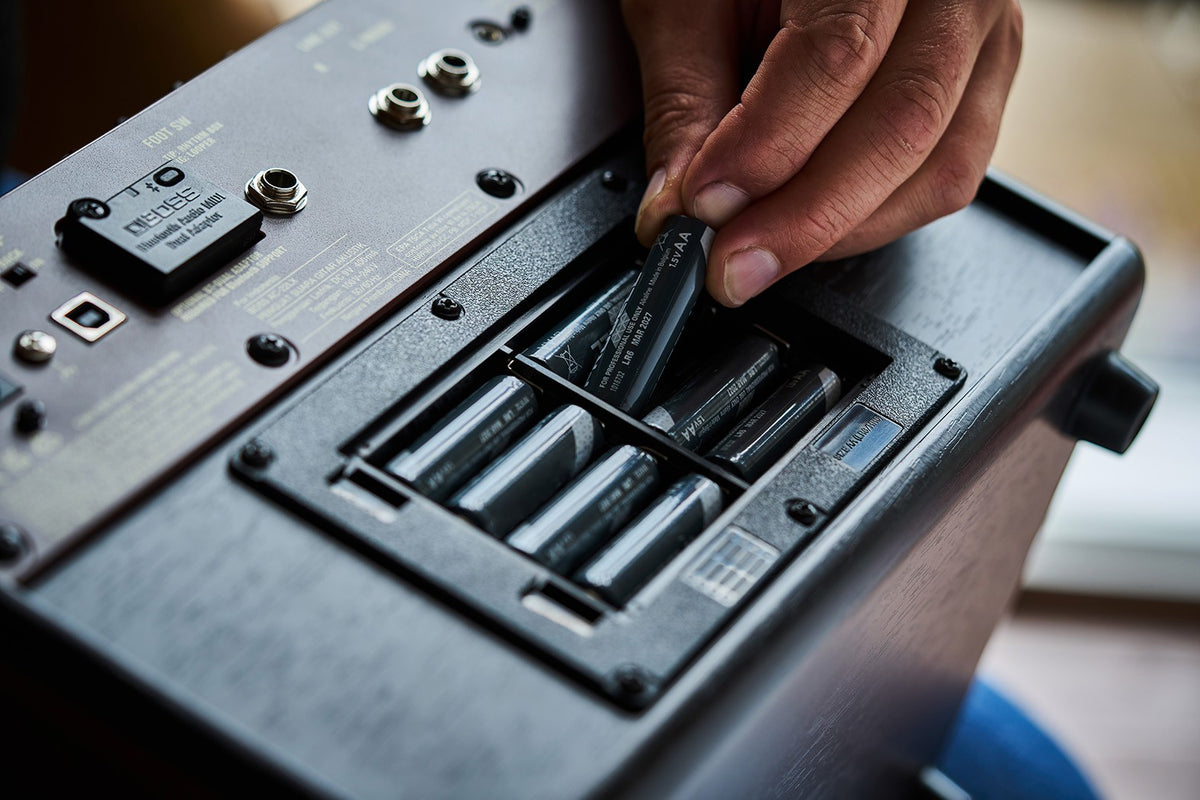

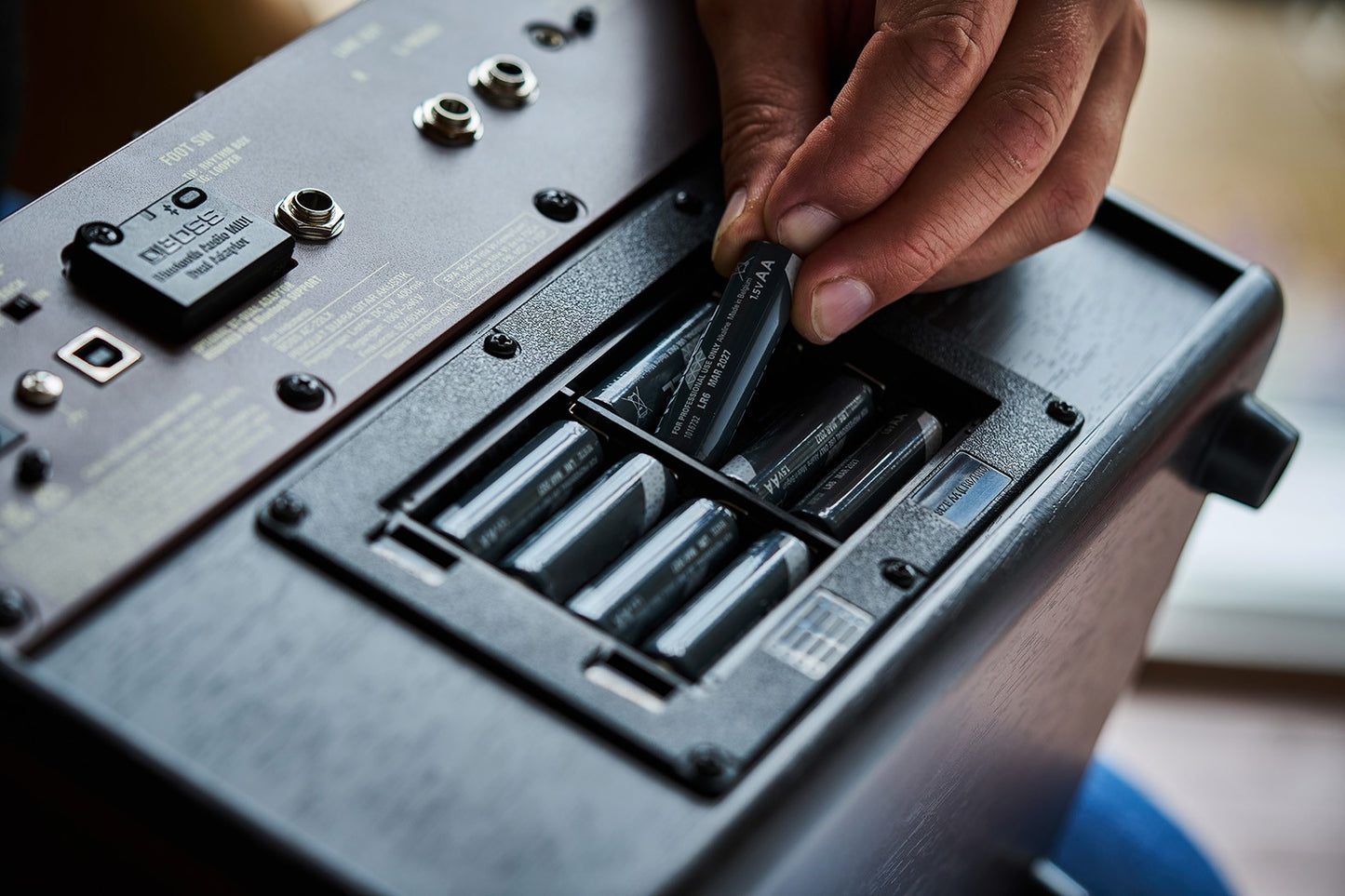

Despite its sophisticated stereo sound and extensive features, the AC-22LX weighs just 8 lb. 14 oz. and can operate from the included AC adapter or eight AA batteries. Battery operation provides approximately eight hours with alkaline batteries or up to approximately ten hours with suitable rechargeable Ni-MH batteries, making the amp an excellent choice for mobile performance and practice.

Features

• Compact stereo amplifier for acoustic-electric guitars and other pickup-equipped acoustic instruments
• 10-watt stereo power amp (5 watts x 2)
• Two custom-designed 5-inch twin-cone speakers
• Innovative BOSS Air Feel spatial technology
• Five Air Feel settings: Dry, XY, AB, ORTF, and Mid-Side
• Dedicated Guitar/Instrument channel with three-band EQ
• Reverb and Reverb & Chorus effects for the instrument channel
• Dedicated XLR microphone input with 48V phantom power
• Two-band EQ and dedicated Reverb for the microphone channel
• 15 memories for storing and recalling complete sound setups
• Built-in Rhythm Box with 15 onboard patterns
• 119 rhythm selections available through the AC-22LX Editor
• Built-in looper with optional footswitch control
• Stereo Line outputs with Air Feel processing
• Stereo Aux input for backing tracks and music playback
• USB audio interface with Loopback for recording and livestreaming

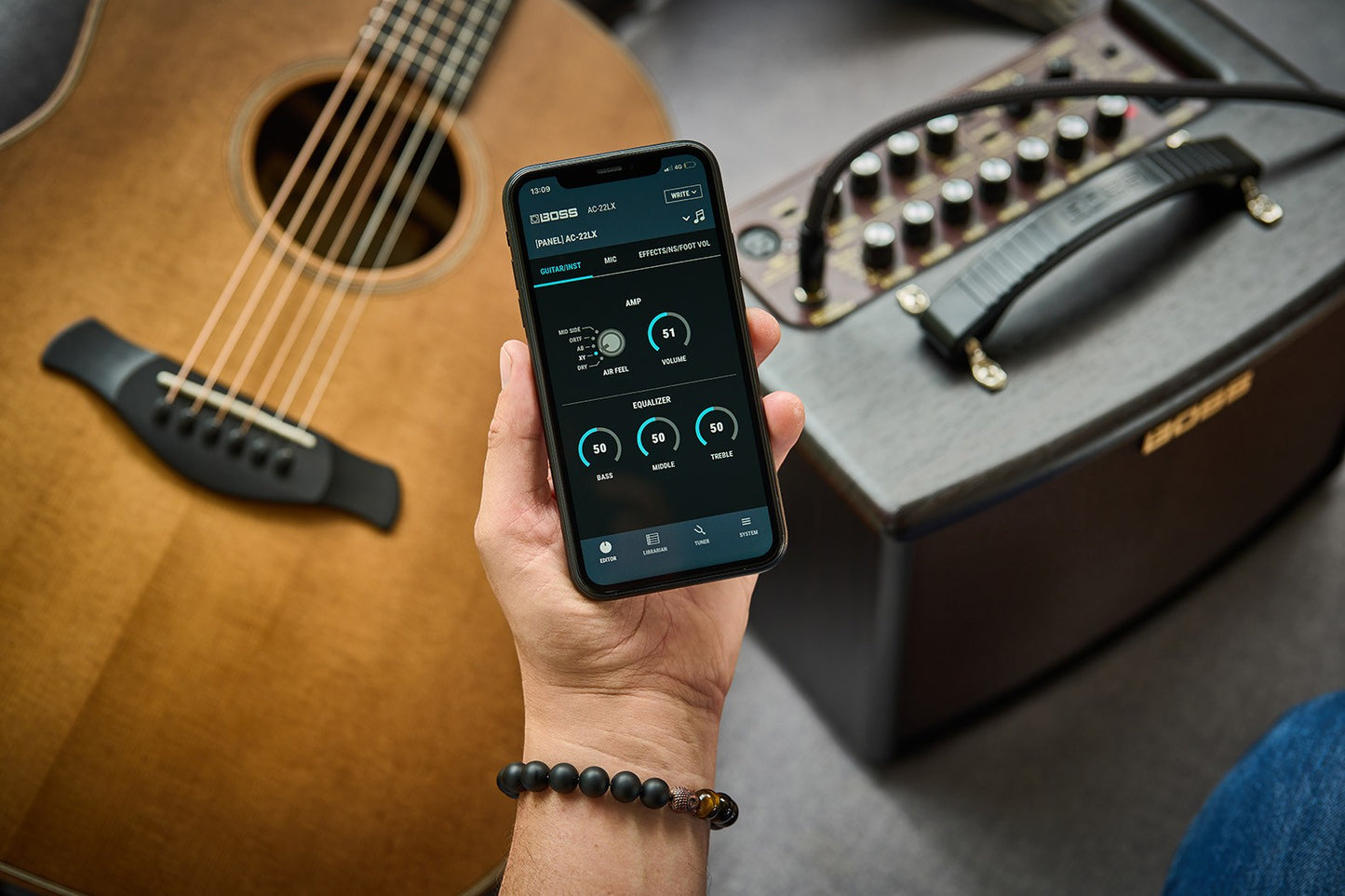

• Free AC-22LX Editor for macOS, Windows, iOS, and Android
• Optional BT-DUAL adapter provides Bluetooth audio and MIDI connectivity
• Operates from included AC adapter or eight AA batteries

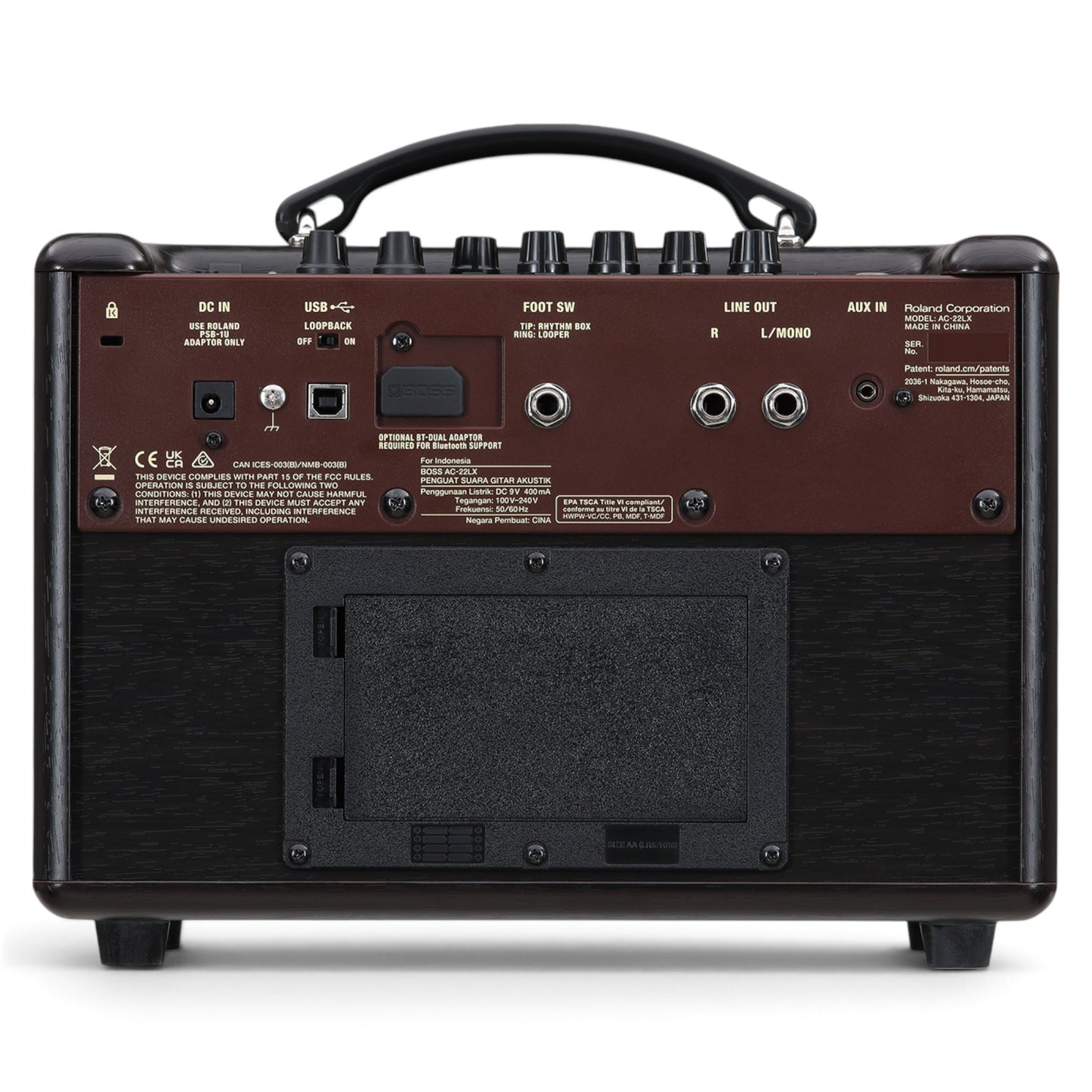

Specifications

• Rated Power Output: 10W (5W + 5W stereo)
• Speakers: 2 x 5-inch custom speakers
• Guitar/Instrument Input: 1/4-inch
• Microphone Input: XLR with 48V phantom power
• Aux Input: Stereo 3.5 mm
• Phones/Recording Output: Stereo 3.5 mm
• Line Outputs: L/Mono and R 1/4-inch
• Footswitch: 1/4-inch TRS
• USB: USB-B
• Power: Included DC 9V AC adapter or 8 x AA batteries
• Current Draw: 400 mA
• Battery Life: Approximately 8 hours alkaline / 10 hours rechargeable Ni-MH (2,500 mAh)
• Dimensions: 12-1/2" W x 8-5/16" D x 10-7/16" H
• Weight: 8 lb. 14 oz. (excluding AC adapter)

Included Accessories

• AC adapter
• Power cord
• Owner's manual
• Safety information leaflet

Optional accessories sold separately: BOSS FS-5U, FS-6, and FS-7 footswitches; BT-DUAL Bluetooth Audio MIDI Dual Adaptor; EV-1-WL Wireless MIDI Expression Pedal; and FS-1-WL Wireless Footswitch.

Model: AC-22LX
UPC: 761294519479
