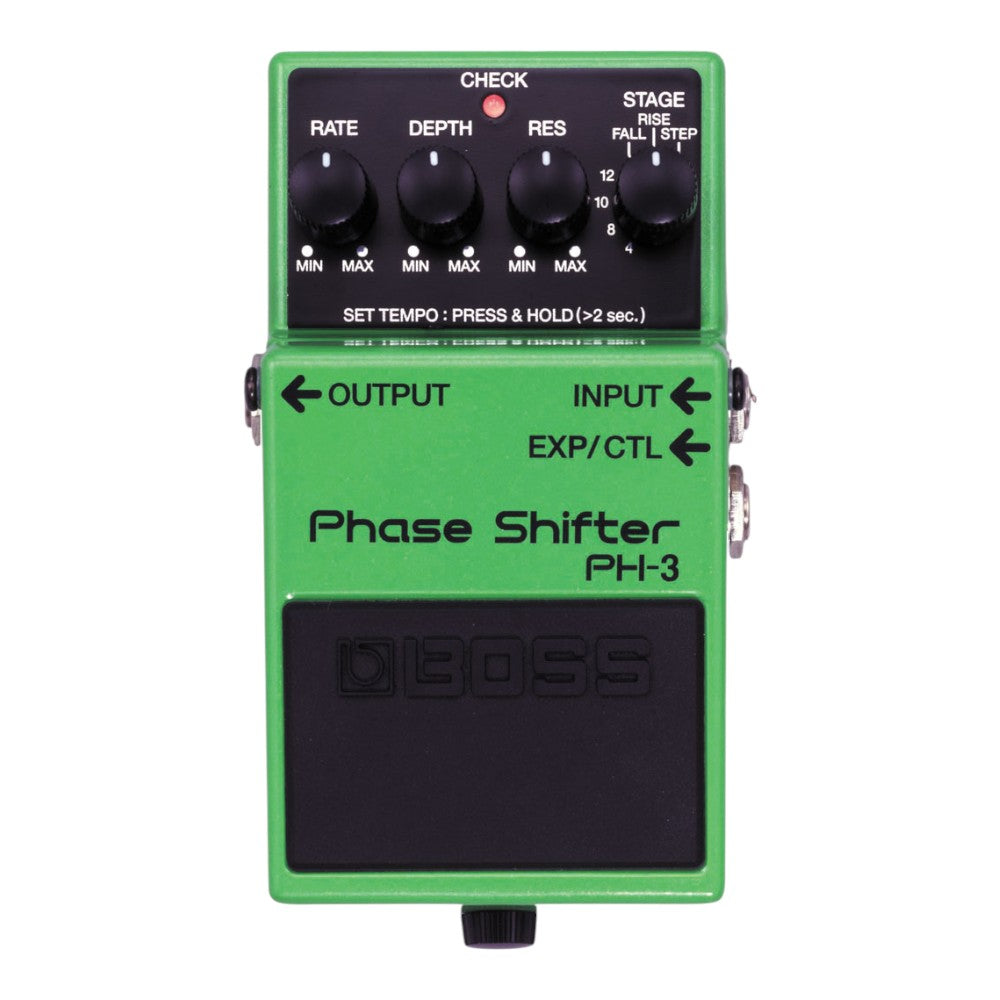

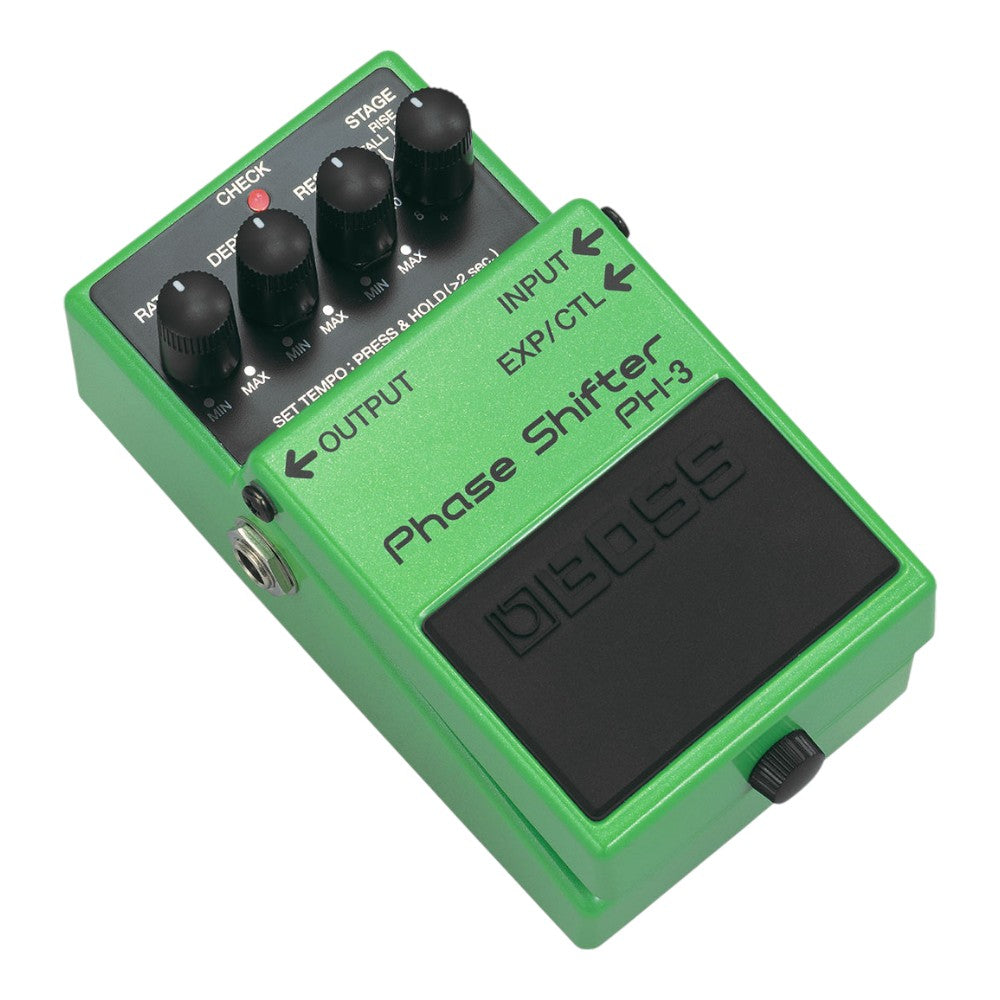

Boss PH-3 Phase Shifter Guitar Effect Pedal

The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new “Rise” and “Fall” modes for unique, unidirectional phasing. In addition to standard up and down cycles, these new modes create entirely novel phasing effects with continuous upward or downward modulation. A “Stage” control allows selection of four, eight, ten, or twelve stages for a variety of classic and modern phaser tones, while optional expression pedal control of Rate, Filter, and Tempo lets you create real-time changes in your effect’s rhythmic feel.

• Compact pedal with versatile vintage and modern BOSS phasing
• New “Rise” and “Fall” modes create unidirectional phasing
• Includes classic multi-stage phasers with selectable stages
• Realt-time control of Rate via optional expression pedal
• Tap tempo sync of phasing effects
• New “Stage” control provides selectable four, eight, ten, and twelve-stage phasing

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls: STAGE switch, RATE knob, DEPTH knob, RES knob, STEP RATE knob, CHECK indicator (used for indication of tempo and battery check)
• Connectors: INPUT jack, OUTPUT jack, EXP/CTL jack, AC adaptor jack (DC 9 V)
• Power Supply: DC 9 V: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61), AC Adaptor
• Current Draw: 40 mA (DC 9 V)
• Expected Battery Life: Carbon: Approx. 3.5 hours, Alkaline: Approx. 18 hours
• Dimensions: 73 mm (W) x 129 mm (D) x 59 mm (H)
• Weight (including battery): 420 g
• Accessories: Owner's Manual, Leaflet (USING THE UNIT SAFELY, IMPORTANT NOTES, and Information), Alkaline battery (9 V, 6LR61)
• Options (sold separately): AC adaptor: PSA series, Footswitch: FS-5U, FS-6, FS-7, Expression pedal: FV-500H, FV-500L, EV-30, EV-5
• 0 dBu = 0.775 Vrms
